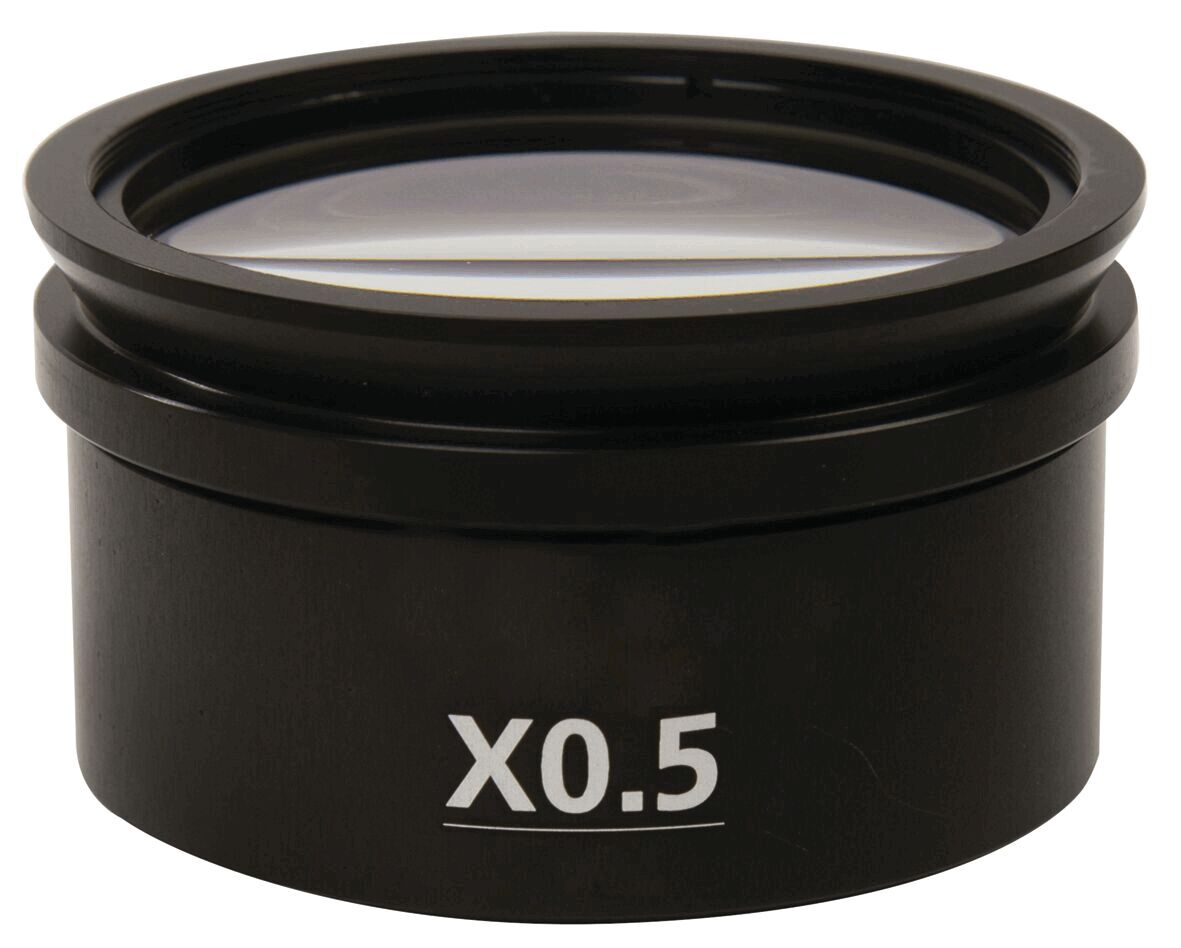

Ancillary lens x0.5

Name: Ancillary lens x0.5
SKU: S-008
Price: 235.05 CHF
Availability: InStock

ArticleNo: S-008

dpvlink:

11075

Further product information

235.05 CHF

1 PCE

Compare

Notice

Product Info

The auxiliary objective lens x0.5 from Vision expands the functionality of the SX45, a stereo zoom microscope based on the optical Greenough principle. This accessory is ideal for applications in laboratories, research, quality assurance, and education where precise imaging is required. The auxiliary objective lens allows for magnification from x4 to x200 when combined with x20 eyepieces and provides an exceptionally long working distance of 220 mm, significantly facilitating the handling of samples.
The equipment also includes LED lighting with a lifespan of 6,000 hours and adjustable incident and transmitted light, ensuring even and efficient illumination. For even greater flexibility in handling different sample formats, the lens can be expanded with an optional sliding stage and an LED ring light. Additionally, the microscope is available in various stand designs such as the pillar stand or the universal joint arm, which allow for adaptation to specific work environments.
The combination of high-quality components and excellent value for money makes this auxiliary objective lens a valuable addition to professional microscopy workstations.

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
