Ancillary lens x2.0

Name: Ancillary lens x2.0
SKU: S-009
Price: 271.20 CHF
Availability: InStock

ArticleNo: S-009

Ancillary lens x2.0

dpvlink:

11075

Further product information

271.20 CHF

excl. 8.1% tax

1 PCE

Compare

Notice / Inquire

Product Info

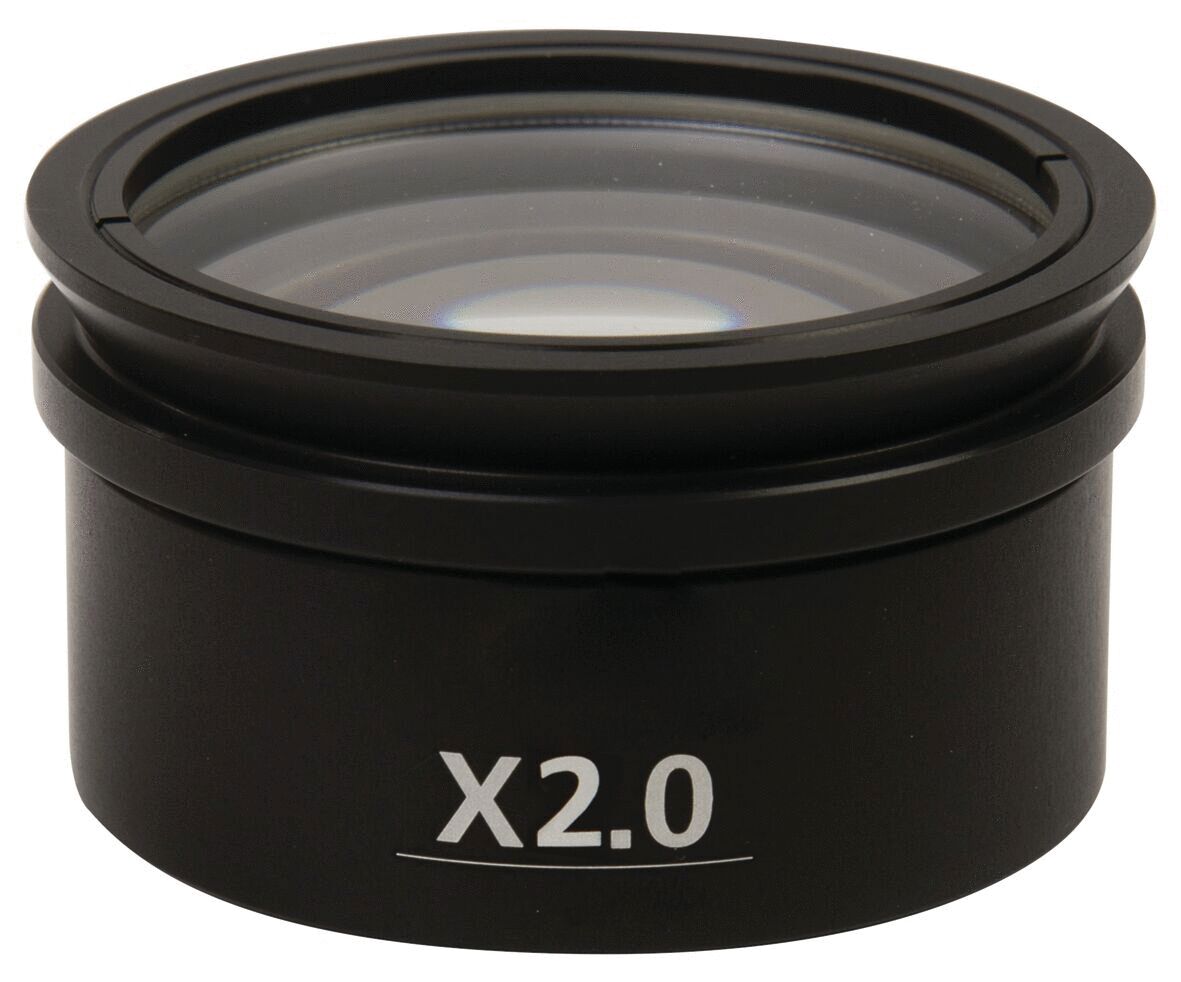

Ancillary lens x2.0

The Vision x2.0 auxiliary objective lens enhances the functionality of the SX45 stereo zoom microscope by enabling a doubling of the magnification. This high-quality accessory is designed for demanding applications in laboratory, research, industrial quality assurance, and educational purposes. It supports a magnification of up to x200 when combined with x20 eyepieces and offers a zoom factor of 6.3:1.
The eyepieces have a diameter of 22 mm with diopter adjustment, allowing precise focusing. The lens also allows an extra long working distance of 220 mm, facilitating the handling of larger samples. The integrated LED lighting provides uniform illumination of the specimen with a lifespan of 6,000 hours.
The auxiliary objective lens is compatible with various microscope stands, including pillar stand and universal articulated arm versions, and can be connected to a trinocular microscope body for extended image documentation and archiving purposes. Optionally, a sliding stage and a polarization set are available to further increase the application possibilities.

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
