Camera adapter C-mount x0.5

Name: Camera adapter C-mount x0.5
SKU: S-019
Price: 339.60 CHF
Availability: InStock

ArticleNo: S-019

Camera adapter C-mount x0.5

dpvlink:

11075

Further product information

339.60 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

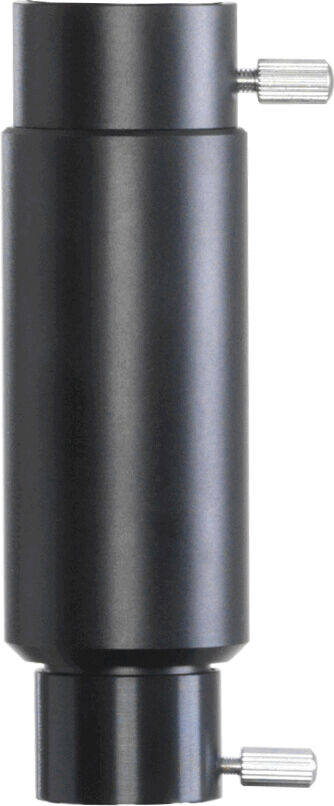

Camera adapter C-mount x0.5

The C-Mount x0.5 camera adapter, manufactured by Vision, is an essential accessory for the SX45 stereo zoom microscope. This adapter facilitates the easy connection of cameras for image documentation and archiving, making it ideal for applications in research, quality assurance, and education. The adapter is characterized by its compatibility and ease of use, ensuring a precise connection between the microscope and camera.

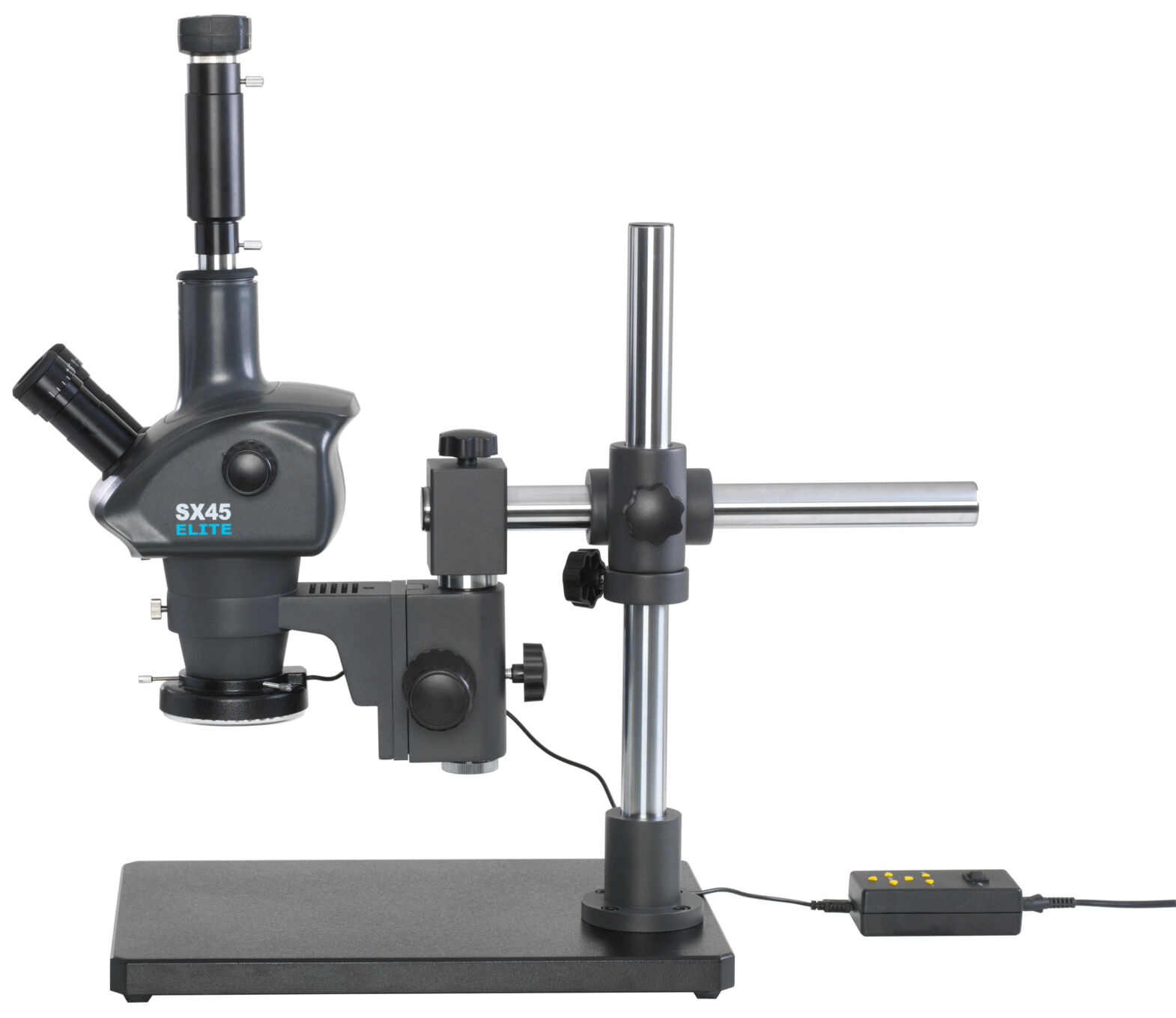

The SX45 microscope itself is based on the optical Greenough principle and offers a magnification from x4 to x200, thanks to its high-quality components. With a zoom factor of 6.3:1 and a working distance of 220 mm, it enables detailed observations with clear image quality across the entire zoom range. Additional features such as adjustable LED lighting and optional enhancements like a sliding stage or LED ring light increase the flexibility and adaptability of the microscope for specific requirements.
The camera adapter and the SX45 microscope together provide a robust solution for diverse inspection and analysis tasks in various environments.

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
