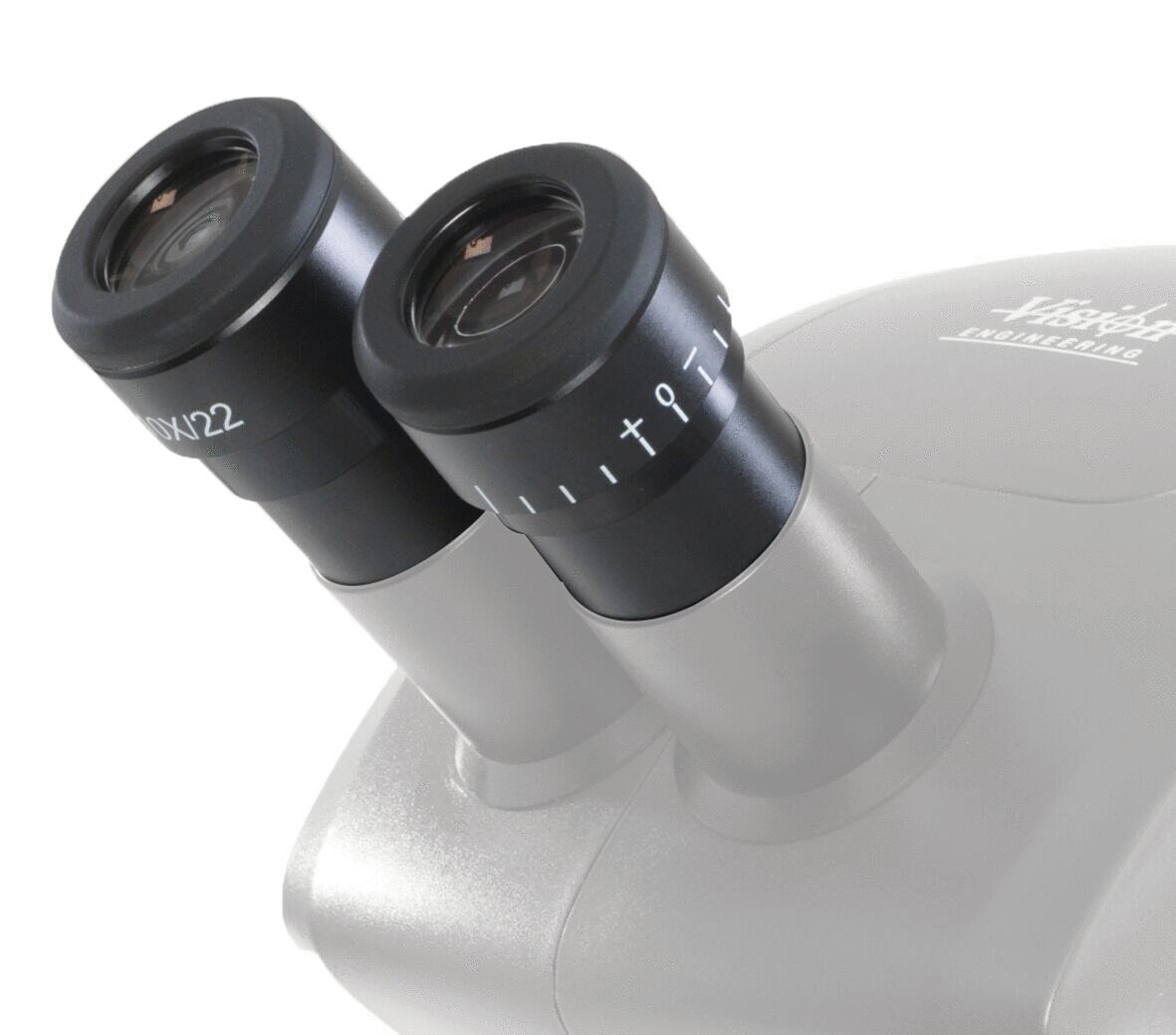

Eyepiece x10 with graticule scale 10 mm/0.1 mm

Name: Eyepiece x10 with graticule scale 10 mm/0.1 mm
SKU: S-018
Price: 265.20 CHF
Availability: InStock

ArticleNo: S-018

dpvlink:

11075

Further product information

265.20 CHF

1 PCE

Compare

Notice

Product Info

Eyepiece x10 with Reticle Scale 10mm/0.1mm The eyepiece x10 with reticle and a scale of 10 mm/0.1 mm is a high-quality accessory for the SX45 stereo zoom microscope. It enables precise measurements and inspections in areas such as laboratory, research, industrial quality assurance, and education. This eyepiece is ideal for applications requiring high accuracy, as it provides detailed scaling that simplifies the measurement of objects. Technical Specifications: - Magnification: x10 - Scale: 10mm with 0.1mm subdivisions - Compatible with SX45 stereo zoom microscope - Application areas: Research, industry, education The eyepiece is part of a comprehensive system that allows flexible and efficient handling in microscopy and supports both documentation and precise analysis of samples. Item number: S-018 Product type: Accessory

Details

Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.

High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.

High-quality components
Zoom factor 6.3:1
Magnification x4 - x200 (x20 eyepieces)
22 mm eyepieces (field number / field of view) with diopter setting
Extra long working distance of 220 mm
LED lighting (6,000 hours LLD)
Adjustable incident and transmitted light
Optional sliding table
Optional LED ring light
Also available with pillar stand or articulated arm
Trinocular microscope body for camera connection
Excellent price-performance ratio
110V - 240V

Optical data

Eyepieces	Lenses	Zoom range	Working distance
x10 / 22 F.N.	x0.5	x4 - x25	220.6 mm
x10 / 22 F.N.	x1.0	x8 - x50	115.0 mm
x10 / 22 F.N.	x2.0	x16 - x100	57.5 mm
x20 / 13 F.N.	x0.5	x8 - x50	220.6 mm
x20 / 13 F.N.	x1.0	x16 - x100	115.0 mm
x20 / 13 F.N.	x2.0	x32 - x200	57.5 mm

Table stand, compact and versatile

Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
Adjustable LED incident light and LED transmitted light.

Articulated arm,
for an increased reach

Designed for applications requiring more freedom of movement and at the same time constant stability.
Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

Pillar stand, ideal for large space requirement

Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
Flexible and easy to use.

Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
