The column stand enables optimal positioning of the microscope and supports efficient workflows through its user-friendly design. It is compatible with additional accessories such as the trinocular microscope body for camera connections, which facilitates image documentation and archiving.
The integrated LED lighting, with a lifespan of 6,000 hours, ensures a clear view of the specimen, while optional extensions such as an LED ring light or a sliding table further enhance functionality. The manufacturer Vision offers a high-quality solution with this product, distinguished by an excellent value for money.
Details
The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.
High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.
- High-quality components
- Zoom factor 6.3:1
- Magnification x4 - x200 (x20 eyepieces)
- 22 mm eyepieces (field number / field of view) with diopter setting
- Extra long working distance of 220 mm
- LED lighting (6,000 hours LLD)
- Adjustable incident and transmitted light
- Optional sliding table
- Optional LED ring light
- Also available with pillar stand or articulated armÂ
- Trinocular microscope body for camera connection
- Excellent price-performance ratioÂ
- 110V - 240V
Optical data
| Eyepieces | Lenses | Zoom range | Working distance |
| x10 / 22 F.N. | x0.5 | x4 - x25 | 220.6 mm |
| x10 / 22 F.N. | x1.0 | x8 - x50 | 115.0 mm |
| x10 / 22 F.N. | x2.0 | x16 - x100 | 57.5 mm |
| x20 / 13 F.N. | x0.5 | x8 - x50 | 220.6 mm |
| x20 / 13 F.N. | x1.0 | x16 - x100 | 115.0 mm |
| x20 / 13 F.N. | x2.0 | x32 - x200 | 57.5 mm |
Table stand, compact and versatile
- Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
- Adjustable LED incident light and LED transmitted light.
Articulated arm,
for an increased reach
- Designed for applications requiring more freedom of movement and at the same time constant stability.
- Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.

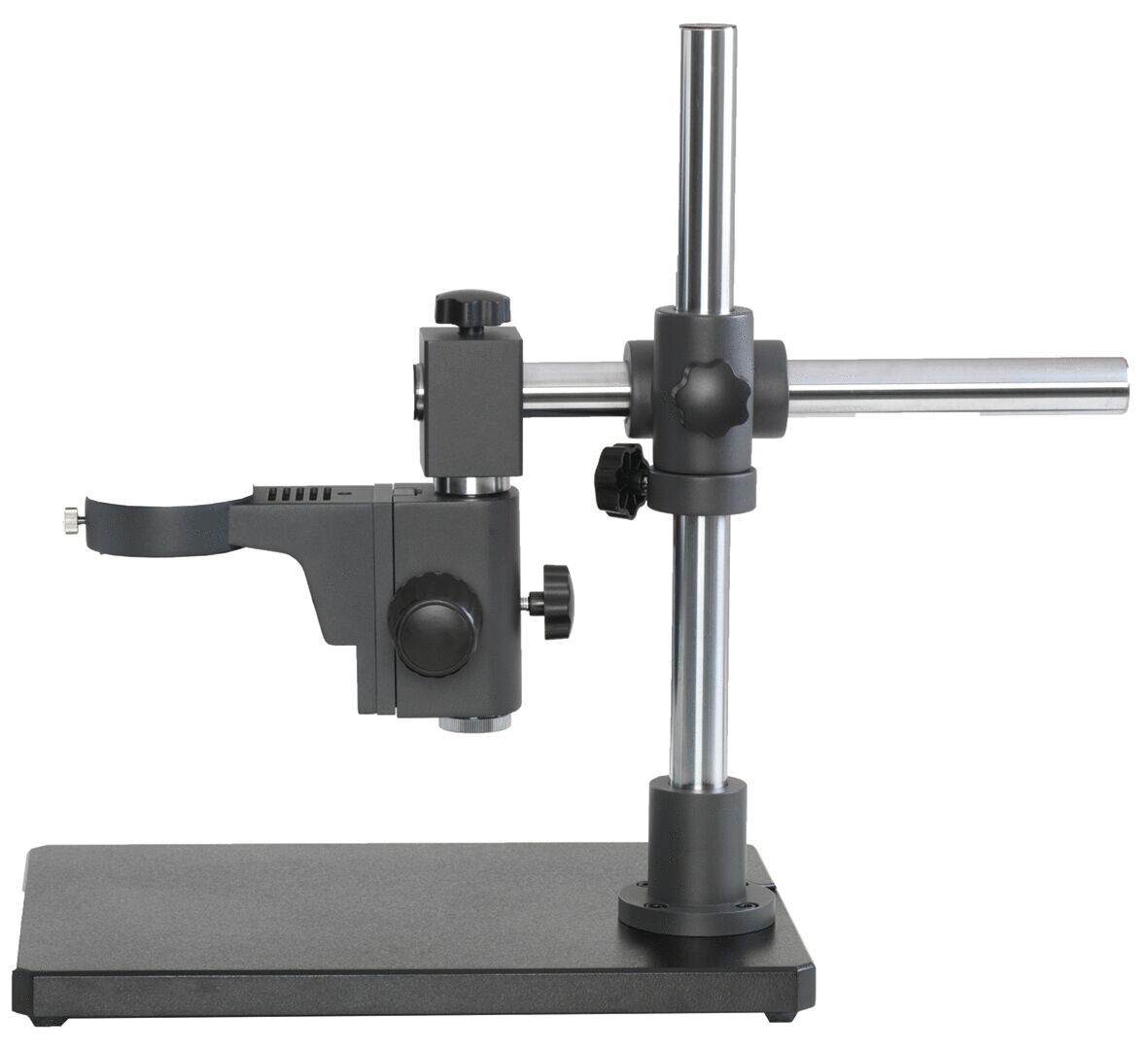

Pillar stand, ideal for large space requirement
- Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
- Flexible and easy to use.
Accessories

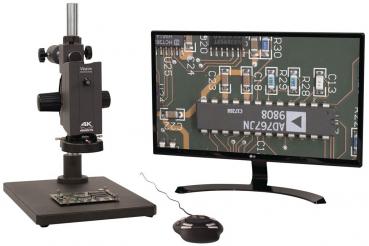

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
LED ring light
For alternative or additional lighting. (Standard lighting for articulated arm and pillar stand variant)
Sliding table
Only in conjunction with table stand, for small components and parts, ideal for inspection.
Polarization set
Polarizing filter optional for the table stand.
Dimensions
