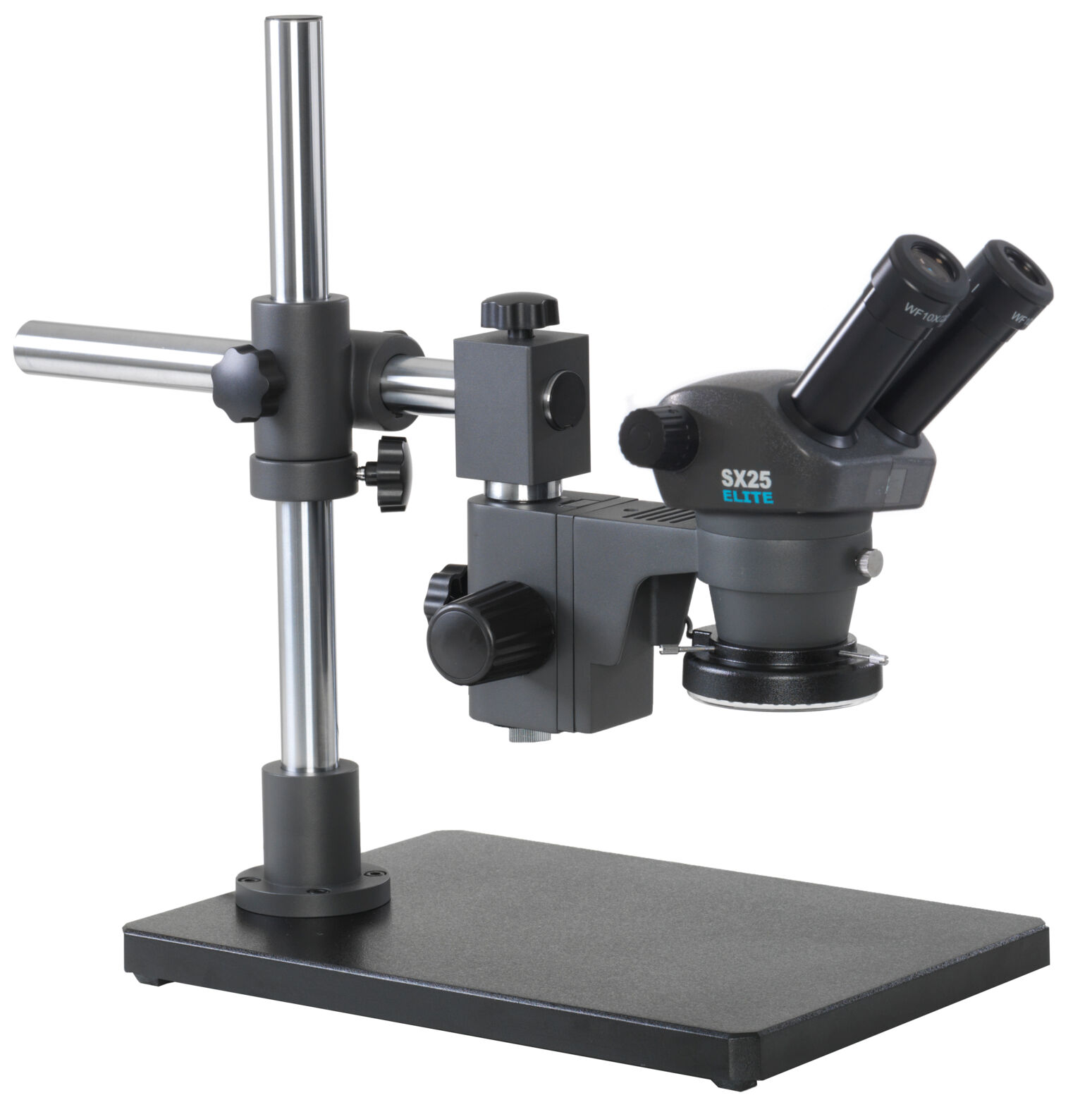

The image shows a microscope with two eyepieces. It is mounted on a sturdy, rectangular base. The stand is made of metal and has an adjustable eyepiece element.

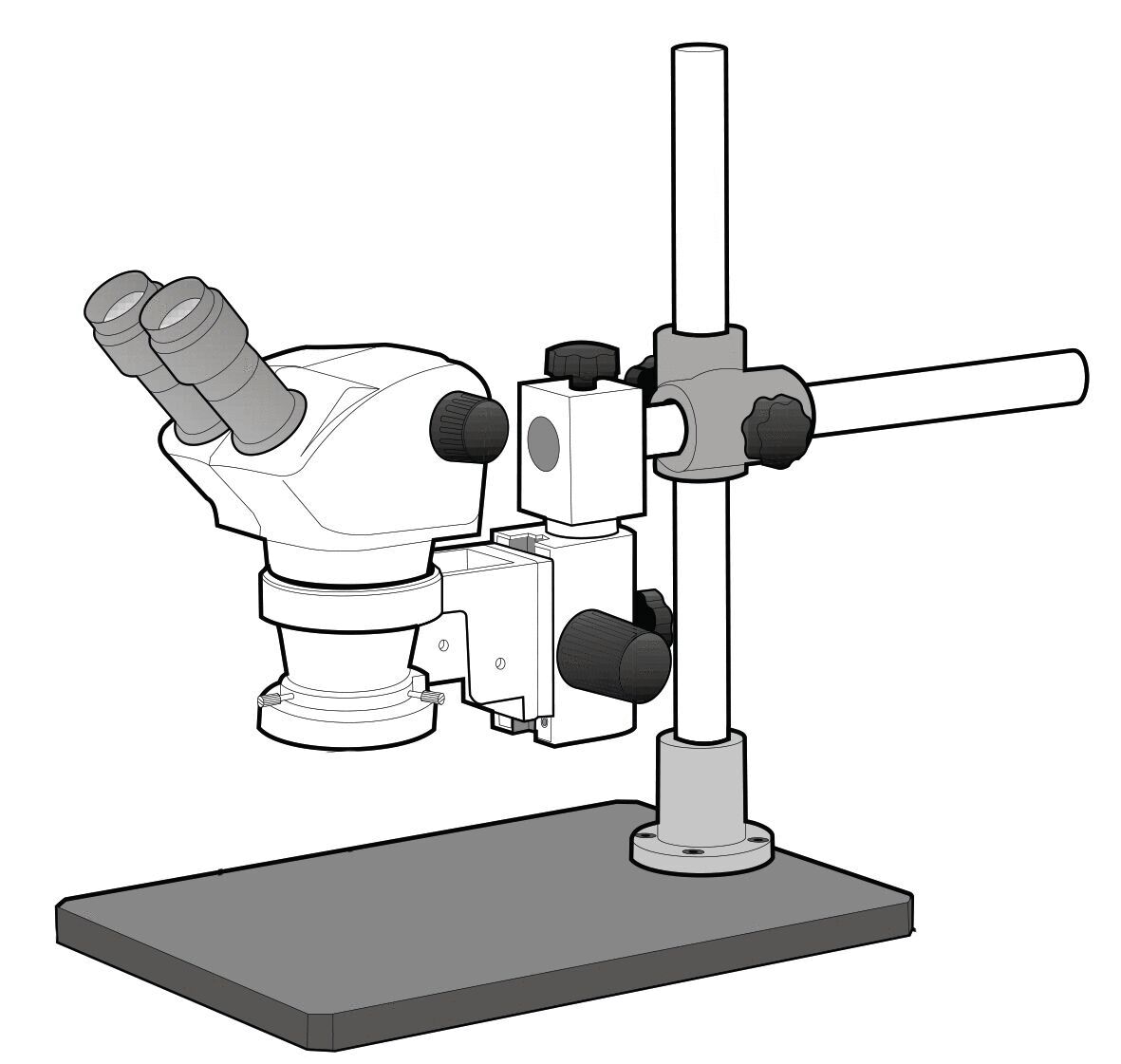

The image shows a microscope with two eyepieces, mounted on a stable base. It has a vertical stand and various adjustments for focusing.
Preview: The image shows a microscope with two eyepieces. It is mounted on a sturdy, rectangular base. The stand is made of metal and has an adjustable eyepiece element.
Preview: The image shows a microscope with two eyepieces, mounted on a stable base. It has a vertical stand and various adjustments for focusing.
SX25 Elite binocular stereo zoom microscope
(Product No.: SX25BS)
The image shows a microscope with two eyepieces. It is mounted on a sturdy, rectangular base. The stand is made of metal and has an adjustable eyepiece element.
The image shows a microscope with two eyepieces, mounted on a stable base. It has a vertical stand and various adjustments for focusing.
Mobile Preview: The image shows a microscope with two eyepieces. It is mounted on a sturdy, rectangular base. The stand is made of metal and has an adjustable eyepiece element.
Mobile Preview: The image shows a microscope with two eyepieces, mounted on a stable base. It has a vertical stand and various adjustments for focusing.
Notice / Inquire

SX25 Elite binocular stereo zoom microscope

SX25 Elite binocular stereo zoom microscope

dpvlink:
24564
Properties:
Further product information

2,438.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SX25 Elite binocular stereo zoom microscope

The SX25 Elite Binocular Stereo Zoom Microscope from Vision, equipped with the Greenough optical principle, offers a zoom magnification from x10 to x45 and precise focusing over a working distance of 220 mm. This high-quality microscope features 10/20 eyepieces with a wide field of view, allowing for a clear view of the specimen.
The integrated LED lighting, with a lifespan of 6,000 hours, supports both incident and transmitted light, which are continuously adjustable. This ensures optimal illumination for a variety of applications.
Additionally, the microscope offers a column stand with a base plate for stable and precise examinations. For applications requiring increased flexibility, the microscope is also available with a universal joint arm.
The trinocular microscope body allows for the attachment of a camera for documentation. Optional accessories include a sliding stage, an LED ring light, and a polarization set to further enhance functionality and adapt to specific requirements.
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Product Family

SX25 Stereo zoom microscope

Optical principle: Greenough

Zoom factor: 4.5:1

Magnification: 10x to 45x

Eyepieces: 10/20 with wide field of view

Working distance: 220 mm

Illumination: LED, 6,000 h service life, adjustable incident & transmitted light

Stand: Column stand with base plate or universal articulated arm

Camera connection: Trinocular microscope body

Optional accessories: Sliding stage, LED ring light, polarization set


Article image
Article description
Price
Compare
SX25 - SX25 Elite binocular stereo zoom microscope
SX25
SX25 Elite binocular stereo zoom microscope
1,645.20 CHF
SX25BS - SX25 Elite binocular stereo zoom microscope
SX25BS
SX25 Elite binocular stereo zoom microscope
2,438.40 CHF
