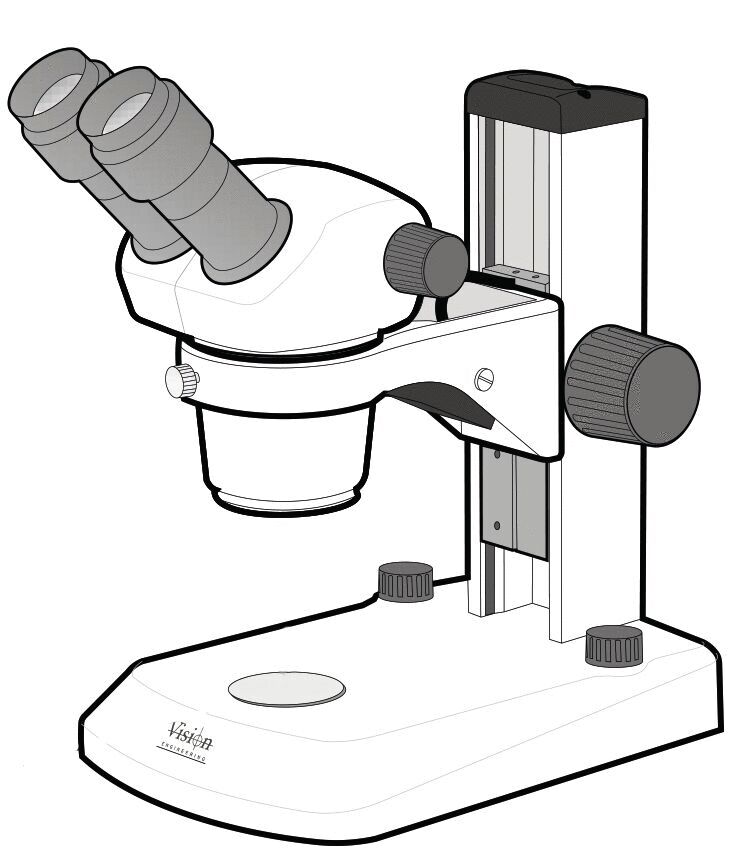

The image shows a microscope with two eyepieces, a stable base, and a round slide. It is gray in color and has several adjustment options for focusing.

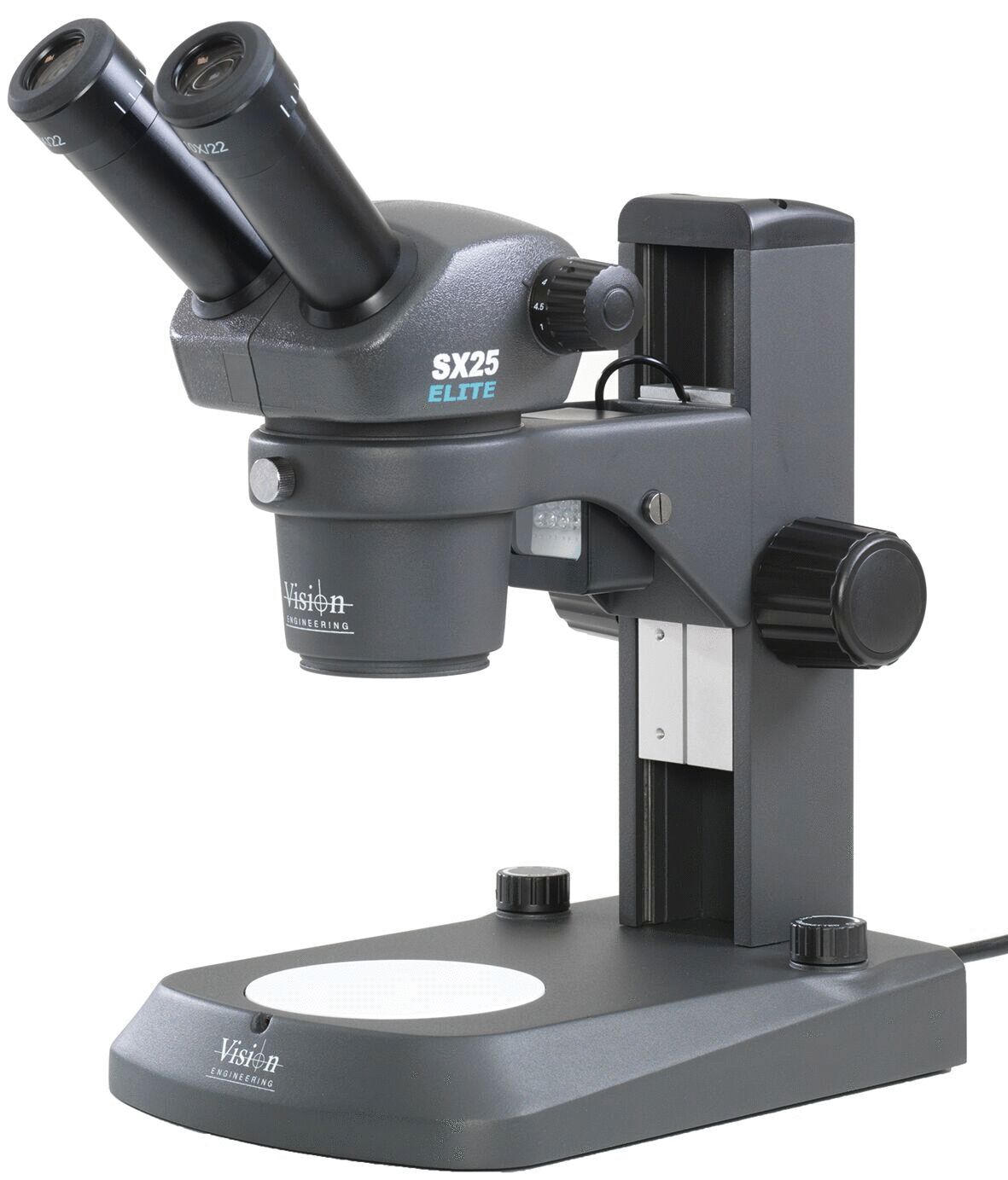

The image shows a microscope with two ocular lenses. The head is semi-circular and mounted on a stable, rectangular base. There are knobs for focus adjustment.
Preview: The image shows a microscope with two eyepieces, a stable base, and a round slide. It is gray in color and has several adjustment options for focusing.
Preview: The image shows a microscope with two ocular lenses. The head is semi-circular and mounted on a stable, rectangular base. There are knobs for focus adjustment.
SX25 Elite binocular stereo zoom microscope
(Product No.: SX25)
The image shows a microscope with two eyepieces, a stable base, and a round slide. It is gray in color and has several adjustment options for focusing.
The image shows a microscope with two ocular lenses. The head is semi-circular and mounted on a stable, rectangular base. There are knobs for focus adjustment.
Mobile Preview: The image shows a microscope with two eyepieces, a stable base, and a round slide. It is gray in color and has several adjustment options for focusing.
Mobile Preview: The image shows a microscope with two ocular lenses. The head is semi-circular and mounted on a stable, rectangular base. There are knobs for focus adjustment.
Notice

SX25 Elite binocular stereo zoom microscope

SX25 Elite binocular stereo zoom microscope

dpvlink:
24564
Properties:
Further product information

1,645.20 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

SX25 Elite binocular stereo zoom microscope

The SX25 Elite Binocular Stereo-Zoom Microscope from Vision combines rugged construction with high-quality optics, suitable for a variety of applications in research, industry, and education. Utilizing the Greenough optical principle, this microscope offers a zoom factor of 4.5:1 and a magnification range from x10 to x45. The 10/20 eyepieces with a wide field of view and a working distance of 220 mm allow for precise focusing and comfortable handling.
Equipped with LED lighting that promises a lifespan of 6,000 hours, the microscope offers both adjustable LED incident and transmitted light, ensuring optimal visibility of the specimen. The column stand with baseplate provides stability, but is also available with a universal joint arm for increased flexibility. For advanced applications, the microscope can be customized with an optional sliding stage, an LED ring light, and a polarization set.
A trinocular microscope body allows for the attachment of a camera for documentation and archiving of images, making the SX25 Elite particularly valuable for educational purposes and detailed research projects. This microscope represents an excellent investment for users who value quality, versatility, and reliable performance.
Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.



High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.



  • High-quality components
  • Zoom factor 6.3:1
  • Magnification x4 - x200 (x20 eyepieces)
  • 22 mm eyepieces (field number / field of view) with diopter setting
  • Extra long working distance of 220 mm
  • LED lighting (6,000 hours LLD)
  • Adjustable incident and transmitted light
  • Optional sliding table
  • Optional LED ring light
  • Also available with pillar stand or articulated arm
  • Trinocular microscope body for camera connection
  • Excellent price-performance ratio
  • 110V - 240V

Optical data

EyepiecesLensesZoom rangeWorking distance
x10 / 22 F.N.x0.5x4 - x25220.6 mm
x10 / 22 F.N.x1.0x8 - x50115.0 mm
x10 / 22 F.N.x2.0x16 - x10057.5 mm
x20 / 13 F.N.x0.5x8 - x50220.6 mm
x20 / 13 F.N.x1.0x16 - x100115.0 mm
x20 / 13 F.N.x2.0x32 - x20057.5 mm



Table stand, compact and versatile

  • Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
  • Adjustable LED incident light and LED transmitted light.


Articulated arm,
for an increased reach

  • Designed for applications requiring more freedom of movement and at the same time constant stability.
  • Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.


Pillar stand, ideal for large space requirement

  • Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
  • Flexible and easy to use.


Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.



LED ring light

For alternative or additional lighting. (Standard lighting for articulated arm and pillar stand variant)



Sliding table
Only in conjunction with table stand, for small components and parts, ideal for inspection.


Polarization set
Polarizing filter optional for the table stand.



Dimensions




Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
