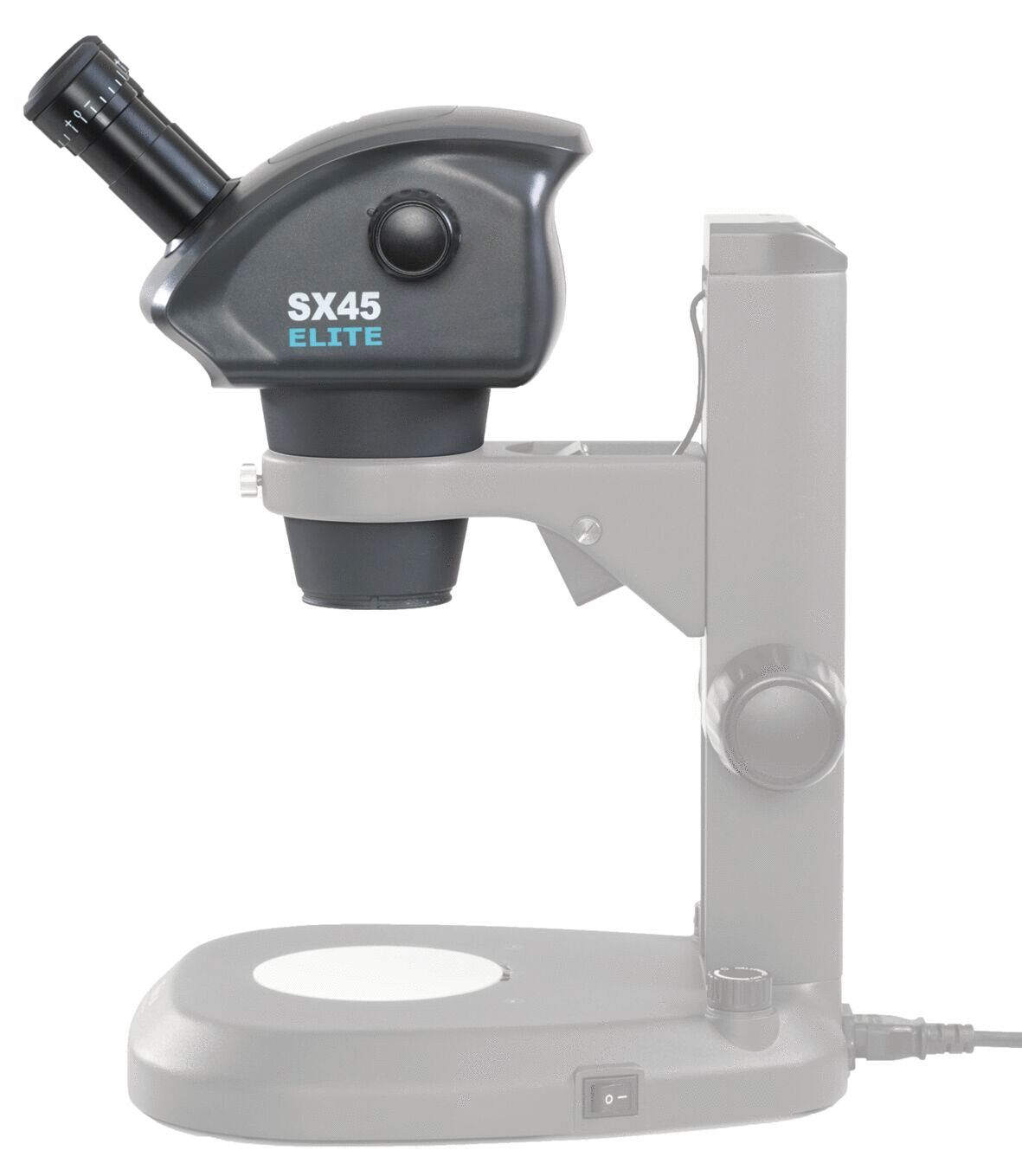

SX45 Elite Stereo zoom microscope body
The SX45 Elite Stereo Zoom Microscope, manufactured by Vision, is a high-quality instrument based on the Greenough optical principle and suitable for a variety of applications including laboratory work, research, industrial quality assurance, as well as teaching and training. The microscope features a robust design and easy handling, with the image remaining in the exact focal plane throughout the entire zoom range.The technical specifications include a zoom factor of 6.3:1 and a magnification from x4 to x200, supported by x20 eyepieces with a 22 mm field of view and diopter adjustment. The working distance is an impressive 220 mm, ideal for examining larger objects. The microscope is equipped with durable LED lighting for both incident and transmitted light, which lasts over 6,000 hours and is adjustable.
Additional options such as a sliding stage, an LED ring light, and various stands, including a column stand and a universal joint arm, enhance flexibility and adaptability to diverse work environments. A trinocular microscope body also allows for the attachment of cameras for image archiving and documentation, making the SX45 an excellent choice for professional applications.
Details
The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.
High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.
- High-quality components
- Zoom factor 6.3:1
- Magnification x4 - x200 (x20 eyepieces)
- 22 mm eyepieces (field number / field of view) with diopter setting
- Extra long working distance of 220 mm
- LED lighting (6,000 hours LLD)
- Adjustable incident and transmitted light
- Optional sliding table
- Optional LED ring light
- Also available with pillar stand or articulated arm
- Trinocular microscope body for camera connection
- Excellent price-performance ratio
- 110V - 240V
Optical data
| Eyepieces | Lenses | Zoom range | Working distance |
| x10 / 22 F.N. | x0.5 | x4 - x25 | 220.6 mm |
| x10 / 22 F.N. | x1.0 | x8 - x50 | 115.0 mm |
| x10 / 22 F.N. | x2.0 | x16 - x100 | 57.5 mm |
| x20 / 13 F.N. | x0.5 | x8 - x50 | 220.6 mm |
| x20 / 13 F.N. | x1.0 | x16 - x100 | 115.0 mm |
| x20 / 13 F.N. | x2.0 | x32 - x200 | 57.5 mm |
Table stand, compact and versatile
- Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
- Adjustable LED incident light and LED transmitted light.
Articulated arm,
for an increased reach
- Designed for applications requiring more freedom of movement and at the same time constant stability.
- Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.
Pillar stand, ideal for large space requirement
- Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
- Flexible and easy to use.
Accessories
Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.
LED ring light
For alternative or additional lighting. (Standard lighting for articulated arm and pillar stand variant)
Sliding table
Only in conjunction with table stand, for small components and parts, ideal for inspection.
Polarization set
Polarizing filter optional for the table stand.
Dimensions
