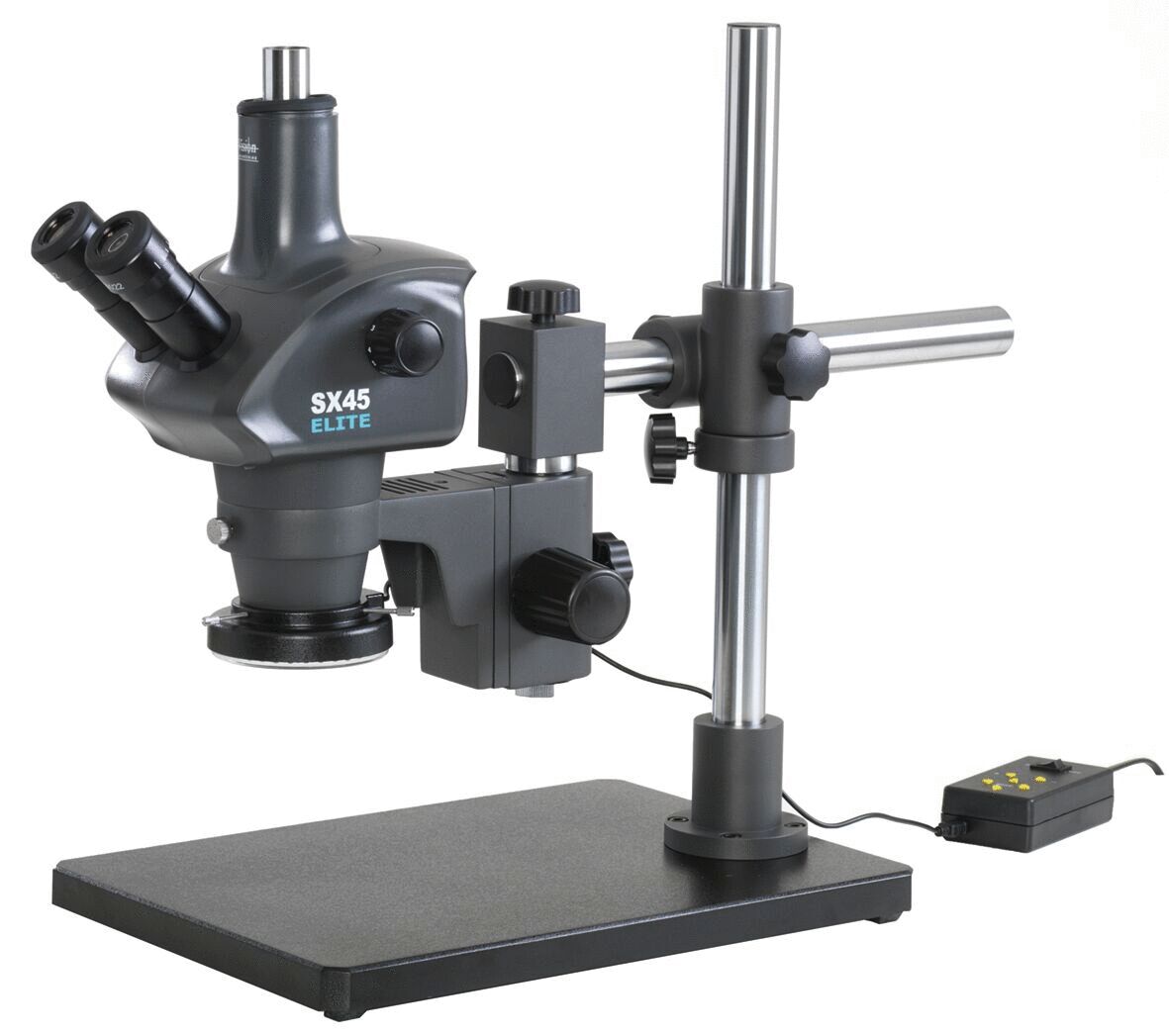

The image shows a microscope on a stable, rectangular base. It has two eyepieces and a flexible arm for adjusting the height. To the left, there is a control unit.
SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand
(Product No.: SX45BS-TR)
The image shows a microscope on a stable, rectangular base. It has two eyepieces and a flexible arm for adjusting the height. To the left, there is a control unit.
Notice / Inquire

SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand

SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand

dpvlink:
14213
Further product information

3,426.00 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice / Inquire
Product Info

SX45 Elite stereo zoom microscope eyepiece trinocular device with pillar stand

The SX45 Elite Stereo Zoom Eyepiece Microscope from Vision is a high-quality trinocular device, characterized by its robust construction and easy handling. Equipped with an optical Greenough principle, it offers a zoom factor of 6.3:1 and a magnification from x4 to x200. The 22 mm eyepieces feature diopter adjustment, allowing for precise customization.
The working distance is 220 mm, ideal for diverse applications in laboratories, research, and industry. The LED lighting ensures a reliable and adjustable illumination with a lifespan of 6,000 hours, from both above and below.
The microscope comes with a column stand that allows flexible positioning and is also suitable for large samples. Optional accessories such as a sliding table and an LED ring light enhance functionality. The trinocular head also supports documentation and archiving, making the device particularly valuable for image capture and detailed analyses.
Thanks to its excellent value for money and versatile applications, the SX45 Elite represents an ideal solution for demanding visual inspections.
Show accessories
Common

The binocular SX45 is a high-quality stereo zoom microscope with optical Greenough principle for diverse applications in laboratory, research & routine, quality assurance in the industry, education and training, etc.



High-quality stereo zoom microscope with optical Greenough principle for a wide range of applications impresses by a solid, durable design and its easy operation. The image remains in the exact level of sharpness throughout entire zoom range.



  • High-quality components
  • Zoom factor 6.3:1
  • Magnification x4 - x200 (x20 eyepieces)
  • 22 mm eyepieces (field number / field of view) with diopter setting
  • Extra long working distance of 220 mm
  • LED lighting (6,000 hours LLD)
  • Adjustable incident and transmitted light
  • Optional sliding table
  • Optional LED ring light
  • Also available with pillar stand or articulated arm
  • Trinocular microscope body for camera connection
  • Excellent price-performance ratio
  • 110V - 240V

Optical data

EyepiecesLensesZoom rangeWorking distance
x10 / 22 F.N.x0.5x4 - x25220.6 mm
x10 / 22 F.N.x1.0x8 - x50115.0 mm
x10 / 22 F.N.x2.0x16 - x10057.5 mm
x20 / 13 F.N.x0.5x8 - x50220.6 mm
x20 / 13 F.N.x1.0x16 - x100115.0 mm
x20 / 13 F.N.x2.0x32 - x20057.5 mm



Table stand, compact and versatile

  • Highly flexible mechanism for optimized ergonomics and increased efficiency and productivity.
  • Adjustable LED incident light and LED transmitted light.


Articulated arm,
for an increased reach

  • Designed for applications requiring more freedom of movement and at the same time constant stability.
  • Higher flexibility during the inspection of large parts, also suitable for several workstations. Easy mounting with table clamp.


Pillar stand, ideal for large space requirement

  • Adjustable and swiveling unit for a direct mounting on the working surface of the user or with base plate.
  • Flexible and easy to use.


Accessories

Image documentation & archiving
Trinocular microscope body for camera and video connection. Modular multimedia solutions for recording, measuring, and storing images.



LED ring light

For alternative or additional lighting. (Standard lighting for articulated arm and pillar stand variant)



Sliding table
Only in conjunction with table stand, for small components and parts, ideal for inspection.


Polarization set
Polarizing filter optional for the table stand.



Dimensions




Accessories

Accessories

The image shows a binocular microscope with two large, round eyepieces. The surface is light gray with the "Vision Engineering" logo at the top. It has a compact shape.
x10 eyepieces (pair)
x10 eyepieces (pair)
dpvlink
11075

312.00 CHF
The image displays a black lens with a diameter of about 7 cm. On the front, it is labeled "X0.5". The lens is mounted on a round casing.
Ancillary lens x0.5
Ancillary lens x0.5
dpvlink
11075

271.20 CHF
The image shows a black camera lens with a round lens and an inscription "X2.0" at the bottom. The lens has multiple layers that appear clear and shiny.
Ancillary lens x2.0
Ancillary lens x2.0
dpvlink
11075

271.20 CHF
The image shows a binocular microscope with two large, round eyepieces. The surface is light gray with the "Vision Engineering" logo at the top. It has a compact shape.
Eyepiece pair x20/13
Eyepiece pair x20 / 13
dpvlink
11075

337.20 CHF
The image shows a microscope with two eyepieces on a stable stand. It has a large, round base and a switch for control. The construction is metallic and robust.
Replacement for incident light on S-003
Replacement LED for incident light on stand S-003
dpvlink
11075

102.00 CHF
The image shows a microscope with two eyepieces on a stable stand. It has a large, round base and a switch for control. The construction is metallic and robust.
Replacement LEDs for incident light on S-003...
Replacement LED for transmitted light stand S-003
dpvlink
11075

54.00 CHF
The image shows a microscope with two round eyepieces. The mounts are silver-colored and feature a scale. The design is compact and modern, ideal for scientific applications.
Rubber grommets for eyepieces (pair)
Rubber grommets for eyepieces (pair)
dpvlink
11075

12.00 CHF
The image shows a microscope attachment with two round eyepieces. The eyepieces are black with numbers and a possible magnification factor. The body is silver-colored.
Eyepiece x10 with graticule scale 10 mm/0.1...
Eyepiece x10 with graticule scale 10 mm / 0.1 mm
dpvlink
11075

277.20 CHF
The image shows a microscope with a stable, black base. It has a telescope-like lens, a lateral eyepiece, and a vertical mount that supports the work area. A cable terminates in a control unit.
Camera adapter C-mount x0.5
Camera adapter C mount x0.5
dpvlink
11075

339.60 CHF
The image shows the eyepieces of a microscope. They are silver with black, rubberized edges. A scale indicates the magnification. The rest of the microscope is blurry in the background.
Rubber eyecups for eyepieces (pair)
Eyecups for eyepieces (pair)
dpvlink
11075

16.80 CHF
The image shows a microscope with a stable metal base. It has two eyepieces and a stage for the object. Next to the microscope is a control panel with buttons.
SX LED ring light with power supply unit
SX LED ring light with power supply
dimmable 0-100%, 4-segment control
dpvlink
11075

463.20 CHF
The image displays a microscope in black and gray. The upper part features a round lens and an eyepiece, while the base is flat and stable. A cable connects the microscope to a power source.
SX45 Elite Stereo zoom microscope body
SX45 Elite Stereo zoom microscope body
dpvlink
11075

1,292.40 CHF
The image shows a microscope. It has a black body with two eyepieces and is mounted on a stable base. The structure is modern and functional, with controls for adjustment.
SX45 Elite Trinocular stereo zoom microscope...
SX45 Elite Trinocular stereo zoom microscope body
dpvlink
11075

1,802.40 CHF
The image shows a gray magnifying device on a stable base. It has a short arm with a lens and controls for adjustment. A switch is located on the bottom.
Stand with LED display incident/transmitted...
Table stand with LED incident/transmitted light
dpvlink
11075

Price on request
The image shows a microscopic stand with a stable, rectangular base. A vertical, metallic rod supports a swiveling arm with a lens on the left side.
Pillar stand
Column stand
(VE Cam, Makrolite 4K, SX25/45)
dpvlink
11075

874.80 CHF
The image shows a black mount with multiple arms that can support a device. It is attached to a sturdy base and allows for flexible positioning.
Articulated arm with adapter
Articulated arm stand with adapter
(VE Cam, SX25/45)
dpvlink
11075

1,219.20 CHF
