Off-cut remover DPP 18N
Web Separator DPP 18N

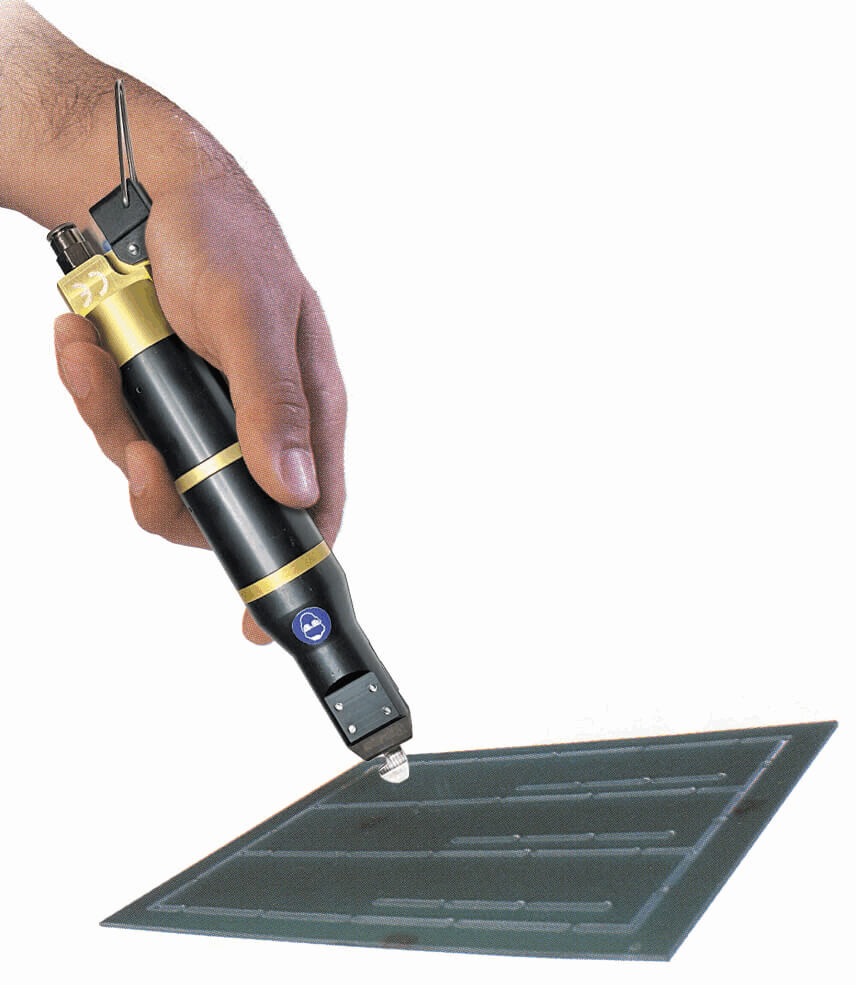

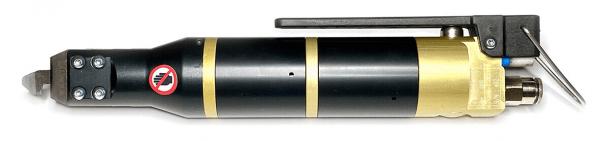

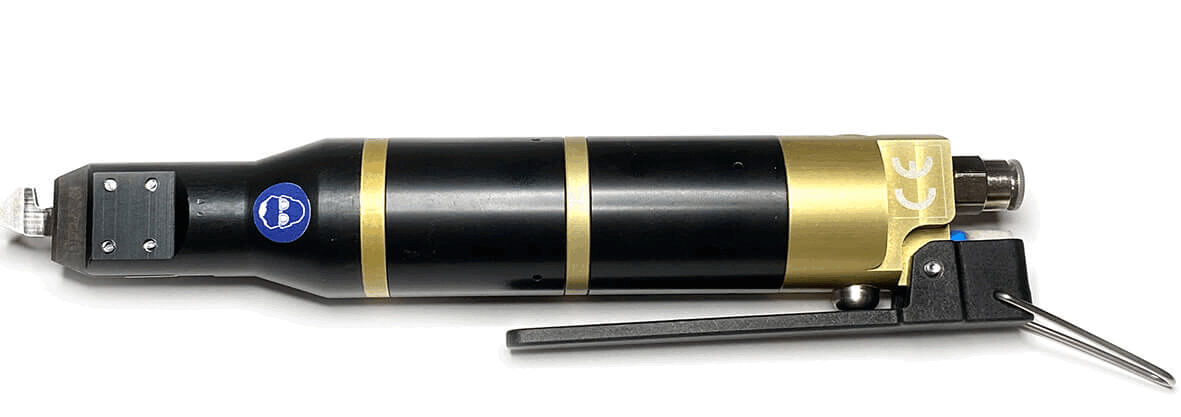

The Web Separator DPP 18N is a pneumatic separator specifically designed for precise and rapid separation of outline-milled PCB panels. Thanks to its compact design, it is excellently suited for work in hard-to-reach areas. The blades of this model are made from a high-quality special steel, allowing for clean and smooth cutting of the webs. The blade width is 1.8 mm, which ensures high accuracy during processing.
Technical Specifications:
- Blade width: 1.8 mm
- Pneumatic supply: 6 - 7 bar
- Cutting force: 80 kg
Item number: DPP-18N
This tool represents an efficient solution for technical buyers who value precision and reliability.
The Web Separator DPP 18N is a pneumatic separator specifically designed for precise and rapid separation of outline-milled PCB panels. Thanks to its compact design, it is excellently suited for work in hard-to-reach areas. The blades of this model are made from a high-quality special steel, allowing for clean and smooth cutting of the webs. The blade width is 1.8 mm, which ensures high accuracy during processing.
Technical Specifications:
- Blade width: 1.8 mm
- Pneumatic supply: 6 - 7 bar
- Cutting force: 80 kg
Item number: DPP-18N
This tool represents an efficient solution for technical buyers who value precision and reliability.
Details
- Compressed air supply Compressed air supply
- 6 - 7 bar
- Blade width Blade width
- 1.8 mm
- Cutting force Cutting force
- 80 kg
