Blade T 3.0, standard

Name: Blade T 3.0, standard
SKU: 8932144
Price: 71.80 CHF
Availability: InStock

ArticleNo: 8932144

Blade T 3.0, standard

dpvlink:

5554

Further product information

71.80 CHF

excl. 8.1% tax

1 PCE

Compare

Notice

Product Info

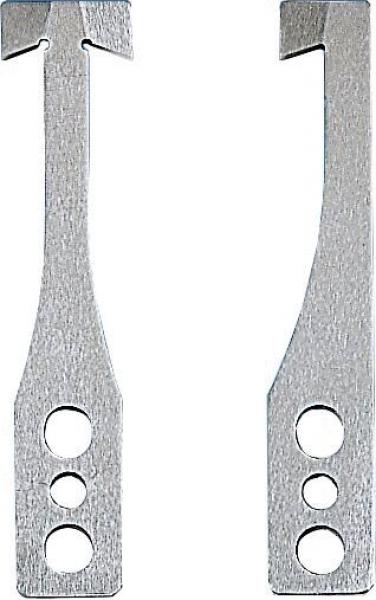

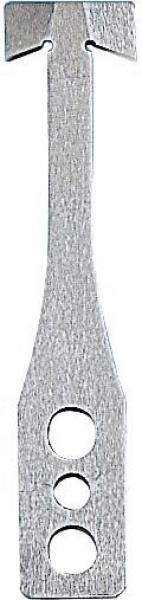

Blade T 3.0, standard

The "Messer T 3.0 standard" is specifically designed for use with the Hektor 2 separator and is made from high-quality special steel. This precision tool is available in five standard widths and can also be custom-made in intermediate sizes according to individual customer specifications to ensure an optimal fit. To prevent jamming in the circuit board, the knife is designed with a width of 2.85 mm, making it at least 0.15 mm narrower than the milling slot.
The T-knife allows for the punching out of webs both on the right and left edges of the circuit board, reducing the workload by eliminating the need to turn the board. Ideal for applications with small web distances, this tool offers an efficient and precise solution for your manufacturing needs. Produced by the renowned manufacturer CAB, the "Messer T 3.0 standard" guarantees durability and the highest quality for your technical requirements.

Details

Show accessories

Accessories

The image displays a device called "cab Hektograf 2" on a rectangular metal plate. It features a black block on top as well as several connections and hoses on the side.

Off-cut remover Hektor 2

Off-cut remover Hektor 2 pneumatic,
with foot switch, pressure regulator

-without blade-
!Blade not included in the scope of delivery !!!
