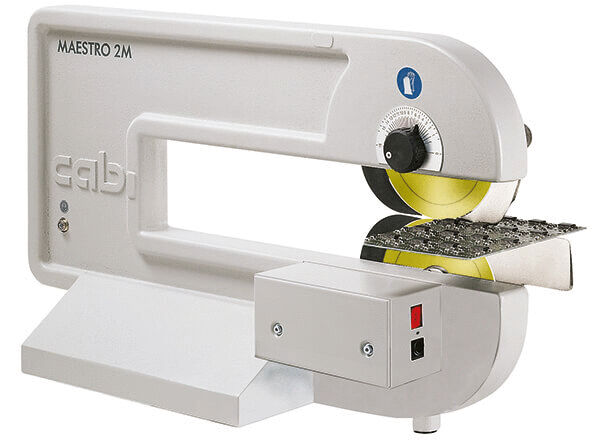

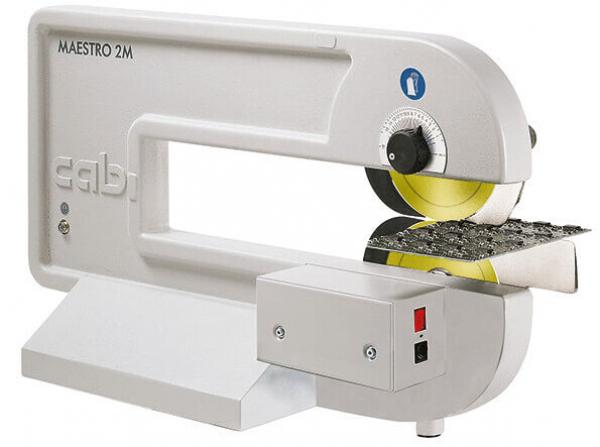

PCB separator MAESTRO 2 M, with motor
The MAESTRO 2M separator from CAB is an efficient device for the economical separation of printed circuit boards. This model features a motorized drive that allows for fatigue-free processing of larger quantities. The printed circuit boards are automatically transported and precisely separated by rotary blades. With adjustable speeds of 100, 200, or 300 mm/s and a separation length of 15 to 300 mm, the MAESTRO 2M offers flexible adjustment to various requirements.The technical specifications include a maximum remaining thickness of 0.8 mm and a scoring depth of at least 0.25 mm. The thickness of the printed circuit boards can vary between 0.8 and 3.2 mm. Safety aspects are ensured by compliance with CE and FCC Class 1 standards. The device has a compact size of 330 x 195 x 620 mm and weighs 19 kg. It is designed for an operating temperature of 10 to 35 °C and can be operated in an environment with a humidity of 10 to 85%.
Thanks to the motorized drive and safe handling, the MAESTRO 2M is ideal for use in technical environments where precision and efficiency are required.
Details
- Version Version
- motorized
- Separation speed Separation speed
- 100, 200, 300 mm/s
- Cutting length Cutting length
- 15 - 300 mm
- Weight Weight
- 19 kg
- Max. component height component side Max. component height component side
- 34 mm
- Max. component height solder side Max. component height solder side
- 34 mm
- Voltage Voltage
- 230 V
- Depth Depth
- 620 mm
- Depth of scoring Depth of scoring
- 0.25 mm
- Height Height
- 330 mm
- Max. remaining thickness Max. remaining thickness
- 0.8 mm
- Width Width
- 195 mm
- PCB thickness PCB thickness
- 0.8 - 3.2 mm
- Humidity Humidity
- 10 - 85 %
- Operating temperature Operating temperature
- 10 - 35 °C
- Storage temperature Storage temperature
- 0 - 60 °C
- Transport temperature Transport temperature
- -25 - 60 °C
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Safe handling

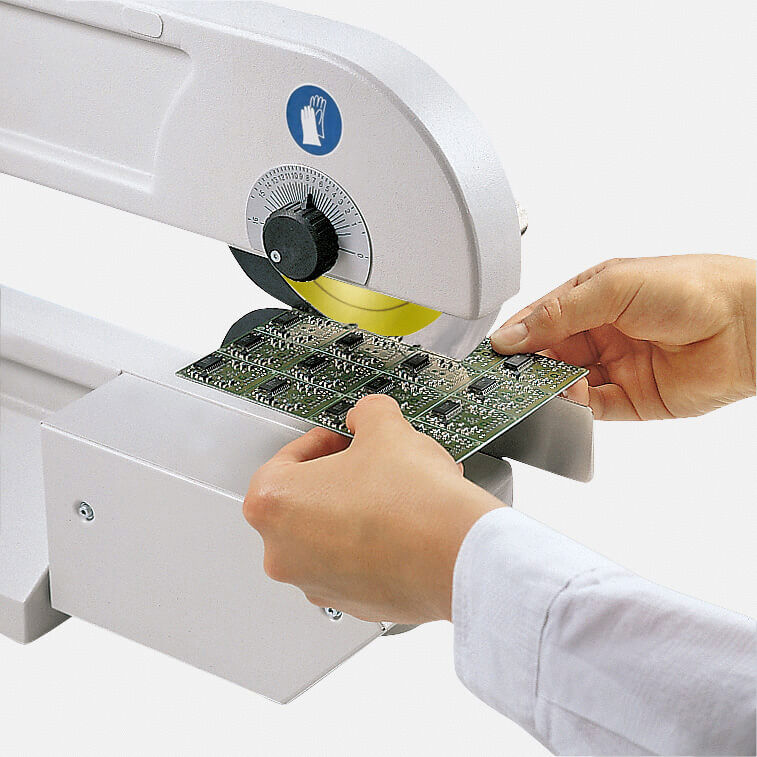

The PCB is inserted and separated. The distance between the upper guide and the lower guideis set so low that the PCB can only be fed in the pre-scored groove.
PCB

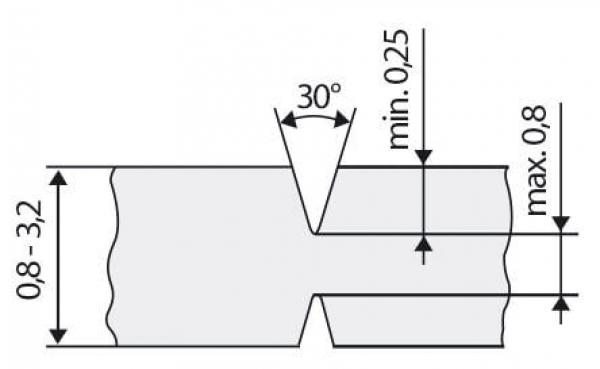

PCB thickness: | 0.8 - 3.2 mm |
Remaining thickness typical: | 1/3 of size A, max. 0.8 mm |
Depth of scoring: | min. 0.25 mm |
Extension of the external dimensions after the separation: | 0.1 - 0.2 mm |

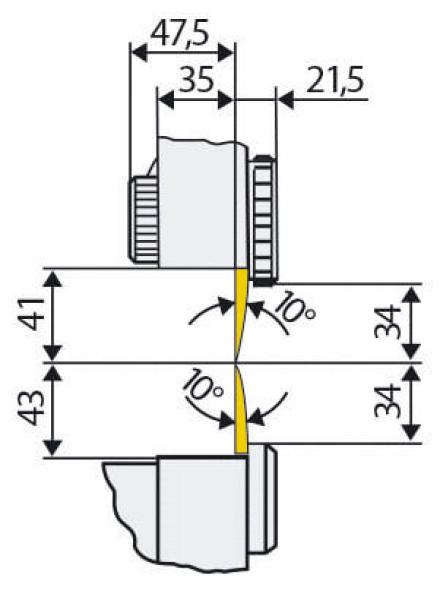

Component height:
(for dimensions see drawing)
Technical data

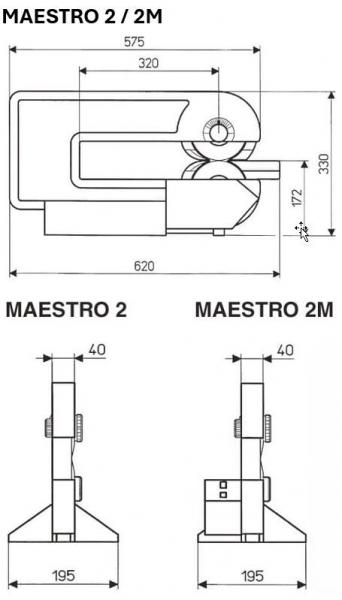

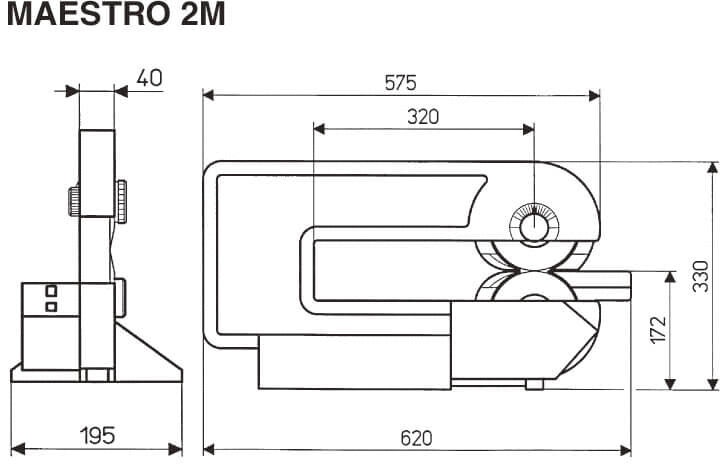

MAESTRO 2 MAESTRO 2M Separation principle: Component side: circular blade Separation process: manually with motor drive Separation speed: - 100/200/300 mm/s Cutting length: 15 - 300 mm Supply voltage: - switchable, 230/115 V~ 50 - 60 Hz Grounding push button: Ø 10 mm Operating temperature: 10 - 35 °C Storage / transport temperature: -20 - 50 °C Humidity non-condensing: 10 - 85% Safety requirements: CE, FCC class 1 Weight: 16 kg 19kg Dimensions H x W x D: 330 x 195 x 620 mm
Solder side: circular blade
The products meet the safety requirements of the EC directives. An EC declaration of conformity is supplied with the devices.
