PCB separator MAESTRO 4S / 600 for FR4 PCBs
The depaneling machine MAESTRO 4S / 600, manufactured by CAB, is specially designed for stress-free separation of pre-scored FR4 circuit boards. This device is distinguished by its ability to protect sensitive components right next to the scoring groove and efficiently separate circuit boards up to a thickness of 3.2 mm. It is also capable of separating aluminum circuit boards.
With a maximum cutting length of 600 mm and a motor-driven rotary blade, the MAESTRO 4S enables precise cuts. The machine offers programmable blade distances ranging from 0.6 mm to 0.05 mm, which can be adjusted in up to five steps to minimize tensile and compressive stresses and preserve the integrity of the components. Users can store up to eight cutting programs, enhancing adaptability.
The package includes the depaneling machine, a power cord, foot switch, hex key, support table with mounting kit, measuring device, and an instruction manual in German and English.
The technical specifications include a width of 852 mm, height of 434 mm, and depth of 425 mm. The weight of the device is 46 kg. It is designed for an operating temperature of 10 to 35 °C, while the storage and transport temperatures range from 0 to 60 °C and -25 to 60 °C, respectively. The humidity should be between 10 and 85%.
With a maximum cutting length of 600 mm and a motor-driven rotary blade, the MAESTRO 4S enables precise cuts. The machine offers programmable blade distances ranging from 0.6 mm to 0.05 mm, which can be adjusted in up to five steps to minimize tensile and compressive stresses and preserve the integrity of the components. Users can store up to eight cutting programs, enhancing adaptability.
The package includes the depaneling machine, a power cord, foot switch, hex key, support table with mounting kit, measuring device, and an instruction manual in German and English.
The technical specifications include a width of 852 mm, height of 434 mm, and depth of 425 mm. The weight of the device is 46 kg. It is designed for an operating temperature of 10 to 35 °C, while the storage and transport temperatures range from 0 to 60 °C and -25 to 60 °C, respectively. The humidity should be between 10 and 85%.
Details
- Cutting length Cutting length
- 600 mm
- Depth [mm] Depth [mm]
- 425 mm

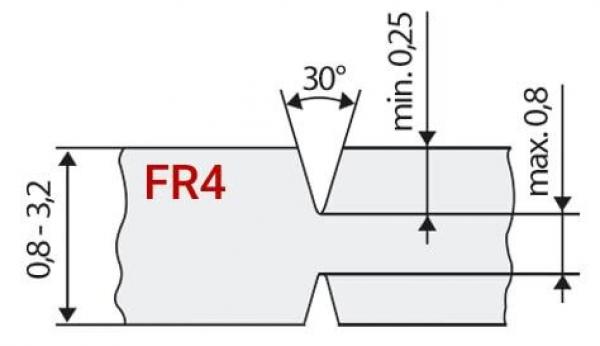

- Depth of scoring Depth of scoring
- 0.25 mm
- Height [mm] Height [mm]
- 434
- Max. remaining thickness B Max. remaining thickness B
- 1.2 mm
- Width [mm] Width [mm]
- 852
- PCB thickness PCB thickness
- 3,2 mm
- Humidity Humidity
- 10 - 85 %
- Operating temperature Operating temperature
- 10 - 35 °C
- Storage temperature Storage temperature
- 0 - 60 °C
- Transport temperature Transport temperature
- -25 - 60 °C
- Weight Weight
- 46 kg
Show accessories
Accessories
Spares
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Cutting length
Depth [mm]
Depth of scoring
Height [mm]
Max. remaining thickness B
Width [mm]
PCB thickness
Price
Compare
450 mm
425 mm
0.25 mm
434
1.2 mm
702
3,2 mm
450 mm
425 mm
0.25 mm
434
1.2 mm
702
3,2 mm
600 mm
425 mm
0.25 mm
434
1.2 mm
852
3,2 mm
600 mm
425 mm
0.25 mm
434
1.2 mm
852
3,2 mm
