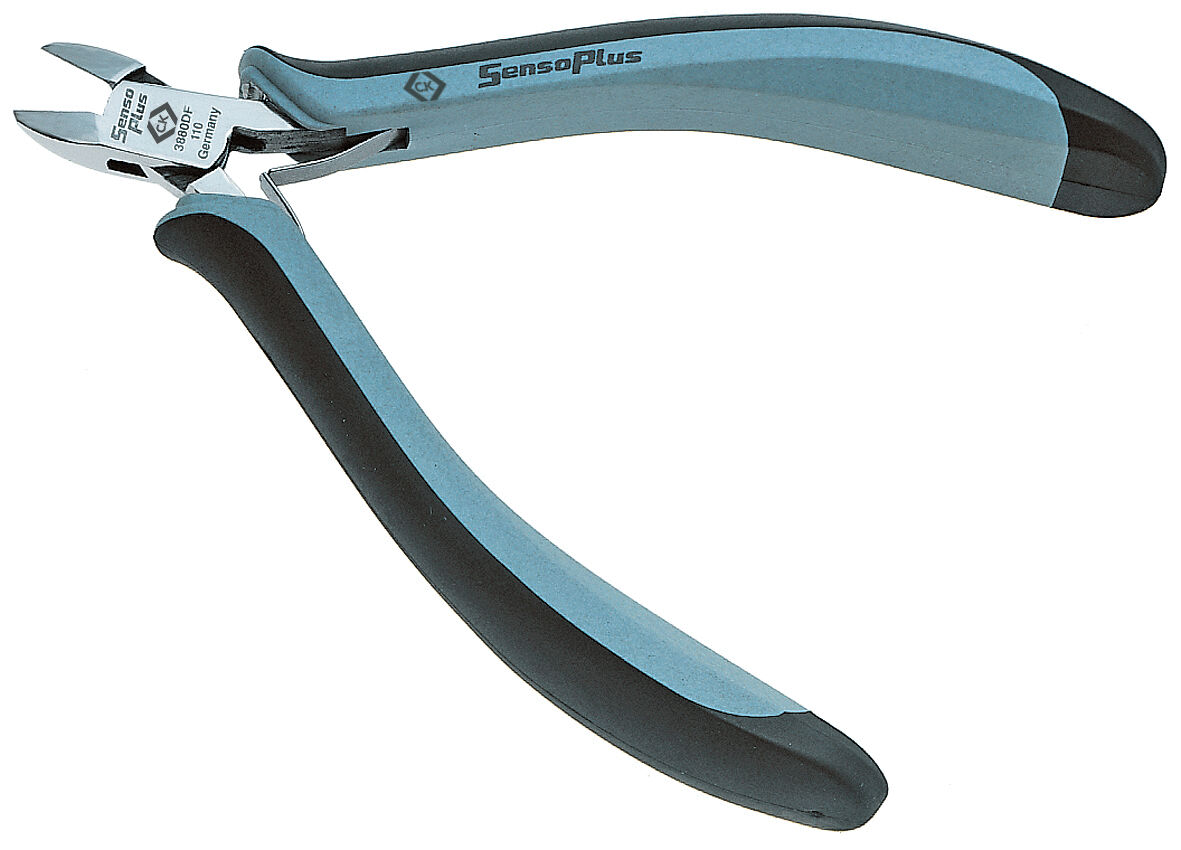

Diagonal cutting pliers 3880DF
The side cutter 3880DF from CK is a high-performance flush cutting tool specifically designed for precision and durability. Made from special alloy steel that is drop forged, hardened, and tempered, this tool offers exceptional strength and durability.
The precise through-bolt joint construction ensures permanent, adjustment-free jaw alignment and consistent cutting performance. The induction-hardened jaws guarantee excellent long-term performance and exceptional cutting power, even with the hardest materials. The high-gloss polished surface prevents damage from flaking chrome and ensures easy maintenance.
The ergonomically shaped two-component handles provide high comfort and optimal control. The fully ESD-compliant design according to IEC 61340-5.1 and 5.2 ensures that the side cutter can be safely used on sensitive electronic components. The tapered head shape facilitates precise cuts in tight areas.
Technical specifications include a head length of 9 mm, head width of 9 mm, and head thickness of 6 mm. The side cutter is designed for wires up to 1.45 mm (soft), 1.02 mm (hard), and 0.4 mm (piano) and has a total length of 120 mm.
The precise through-bolt joint construction ensures permanent, adjustment-free jaw alignment and consistent cutting performance. The induction-hardened jaws guarantee excellent long-term performance and exceptional cutting power, even with the hardest materials. The high-gloss polished surface prevents damage from flaking chrome and ensures easy maintenance.
The ergonomically shaped two-component handles provide high comfort and optimal control. The fully ESD-compliant design according to IEC 61340-5.1 and 5.2 ensures that the side cutter can be safely used on sensitive electronic components. The tapered head shape facilitates precise cuts in tight areas.
Technical specifications include a head length of 9 mm, head width of 9 mm, and head thickness of 6 mm. The side cutter is designed for wires up to 1.45 mm (soft), 1.02 mm (hard), and 0.4 mm (piano) and has a total length of 120 mm.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø hard Max Ø hard
- 1.02 mm
- Max Ø Piano Max Ø Piano
- 0.4 mm
- AWG hard AWG hard
- 18
- AWG Piano AWG Piano
- 26
- AWG soft AWG soft
- 15
- Head thickness Head thickness
- 6 mm
- Length [mm] Length [mm]
- 120
- Material Material
- steel
- Surface Surface
- polished
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 9 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
The current composition of shape and technology, completely convincing.
A flowing line adapted to the natural form of the hand in the right proportions.
The guarantee for a fatigue-free, controlled, safe and fast working in a level of quality that has been unknown up to now.
Ergonomics in an optimum design.
- Two-component handle with flush, soft thermoplastic material, slip-resistant and comfortable.
- Slip protection for a controlled and concentrated work.
- Captive, welded double leaf spring: guarantees an optimal function for the whole service life.
- Precise box joint: accurate guiding of the jaws without readjustment in case of a long service life.
- Mirror polish: optimal protection against corrosion without chrome, easy to clean.
- Inductive hardening of cutting edges: high hardness for a long durability.
The shapes of cutting edges and cutting performance
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Made in Germany
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
