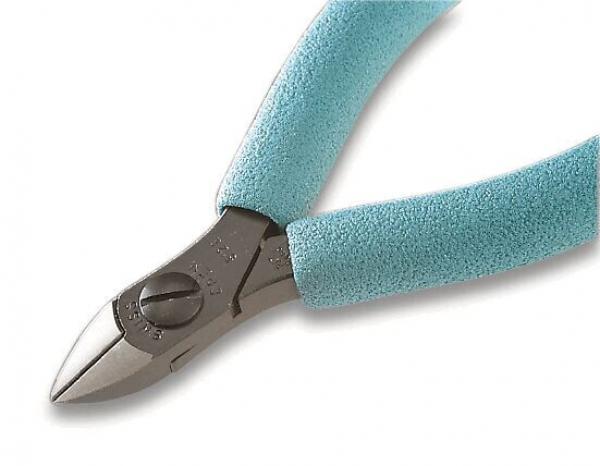

Diagonal cutting pliers 512E
Diagonal cutting pliers 512E
The medium-sized 512E side cutter from Weller Erem™ is distinguished by its versatile applications and high-quality craftsmanship. This model is specifically designed for cutting tasks in microelectronics and healthcare, where precision and reliability are required. With a standard head type and a head size that allows for robust cuts, the side cutter delivers cutting performance for soft materials up to a diameter of 1.57 mm, for medium-hard materials up to 1.02 mm, and for hard materials up to 0.48 mm.The total length is 115 mm, with a blade length of 10.16 mm and a head width of 9 mm. The ESD-safe handles meet MIL standard with a transition resistance between 10^5 and 10^9 Ohm, ensuring additional safety at work.
Another feature is the patented opening system, which integrates the springs invisibly, thus minimizing the risk of injury. The double self-locking screw joint significantly increases the lifespan by minimizing wear. The Stop! limiting system prevents the blades from crossing over, thereby avoiding damage. An optional wire holder is available, which reduces the risk of eye injuries and damage to assemblies.
The construction from high-quality tool steel guarantees the durability and reliability of this precise tool.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- regular
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Max Ø soft Max Ø soft
- 1.57 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0.48 mm
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 10.16 mm
- Length [mm] Length [mm]
- 115 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head width Head width
- 9 mm
- Jaw length Jaw length
- 12 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Type of pliers
Max Ø soft
Max Ø medium
Max Ø hard
Head shape
Price
Compare
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
0.48 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel (flush cut)
regular
Diagonal cutting pliers
1.57 mm
0.78 mm
without bevel
extra small
Diagonal cutting pliers
0.64 mm
0.4 mm
angled
without bevel
small
oblique cutting pliers
1.57 mm
1.02 mm
angled
without bevel
small
Oblique end cutting pliers
1.29 mm
0.57 mm
angled
without bevel
small
Oblique end cutting pliers
1.02 mm
0.4 mm
angled
