Diagonal cutting pliers 512N
Diagonal cutting pliers 512N

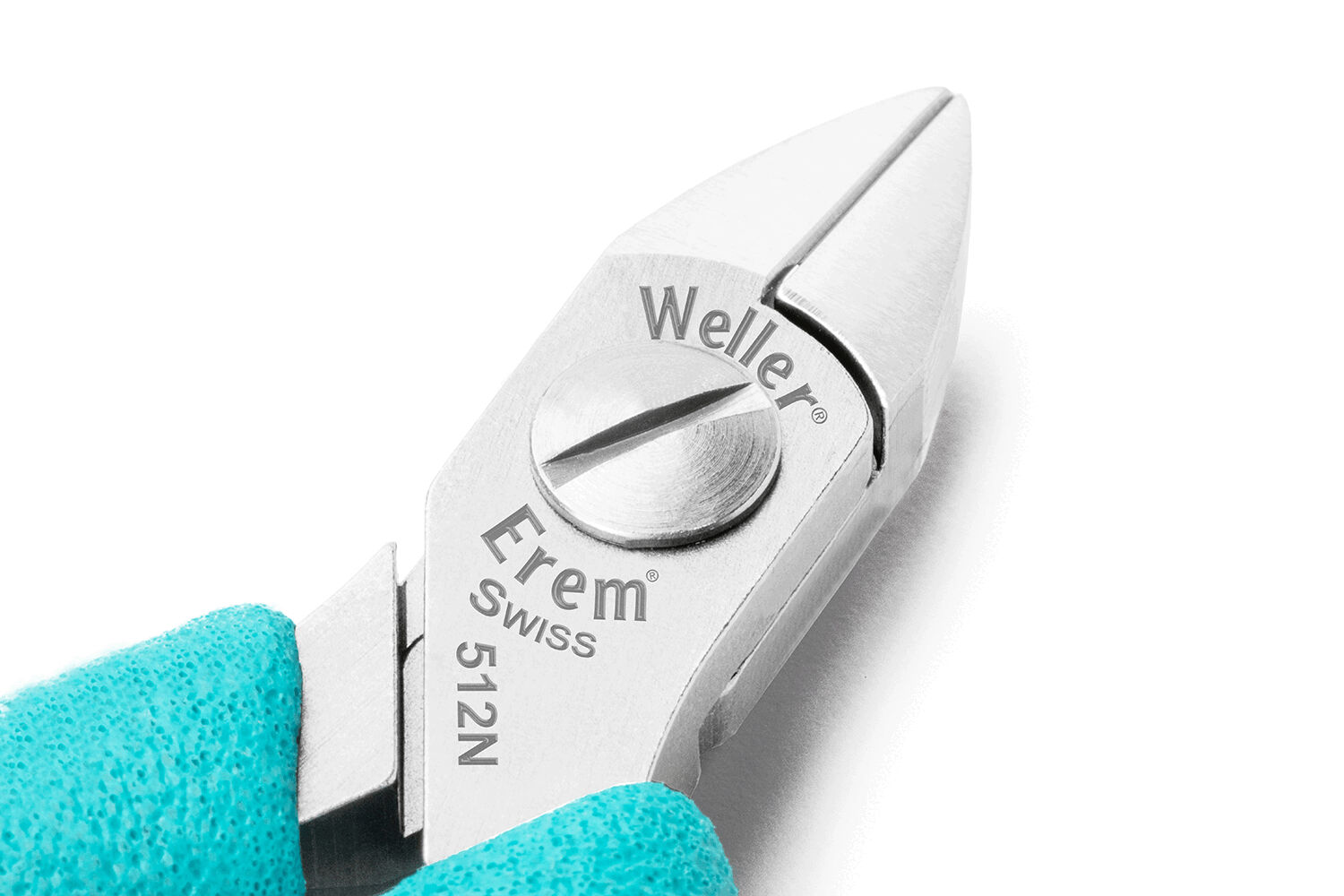

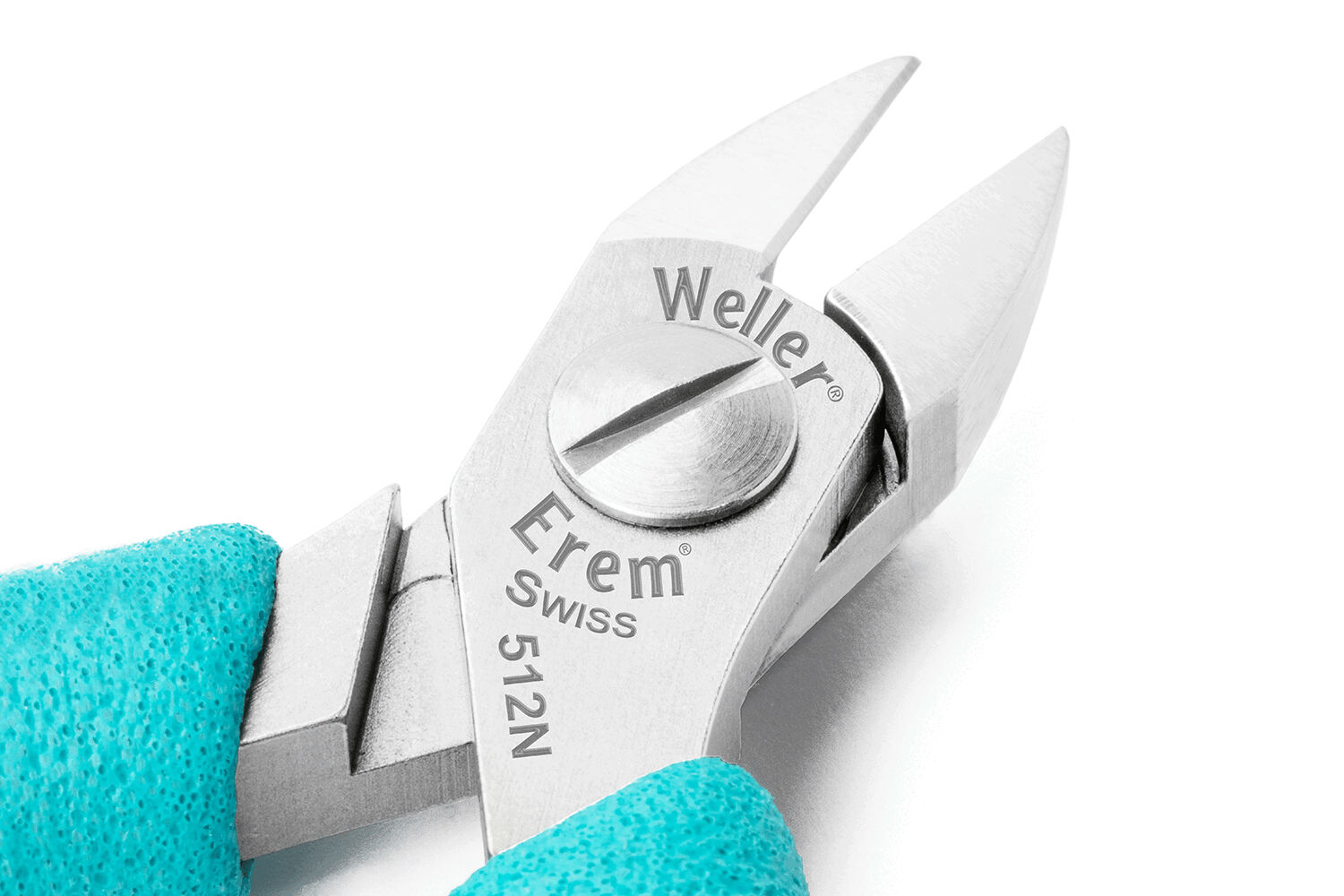

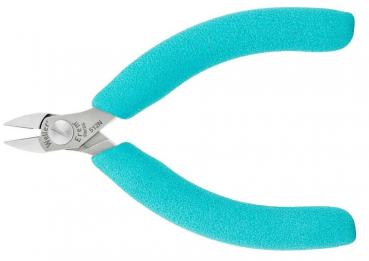

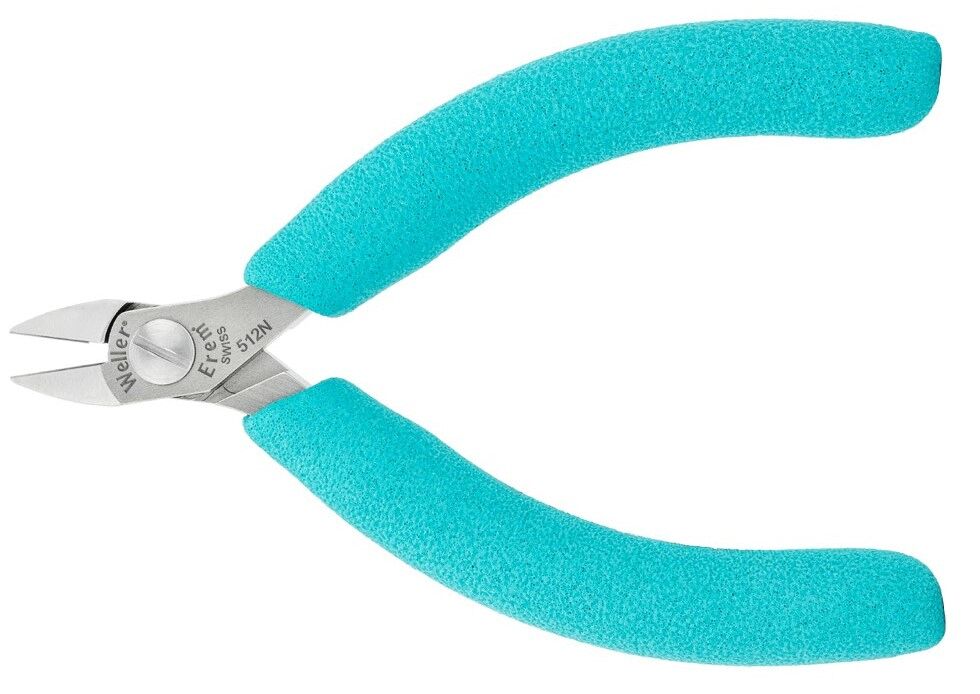

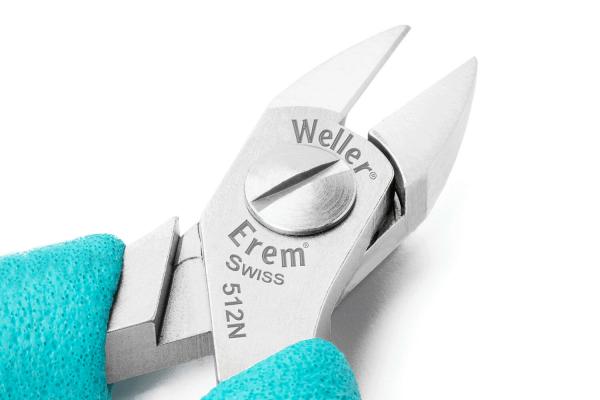

The Weller Erem 512N side cutter is a robust precision tool known for its versatility and durability. This model is part of the 500 Micro series, which includes medium-sized cutters with various head shapes. The side cutter is made from high-quality tool steel and the cutting edges are hardened to a hardness of 63-65 HRc, ensuring high cutting performance and re-sharpenability. The non-reflective surface provides ESD safety, meeting the MIL standard with a transition resistance between 105 and 109 Ohm.With a total length of 115 mm and a blade length of 10.16 mm, the side cutter enables precise cuts. The maximum cutting capacity is 1.57 mm for soft materials and 1.02 mm for medium-hard materials. The innovative design includes a double self-locking screw joint that minimizes wear, as well as a patented opening system that integrates the springs invisibly and reduces the risk of injury. Additionally, the Stop! limit system prevents the blades from crossing and thus protects against damage. An optional wire holder is available, which minimizes the risk of eye injuries and assembly destruction caused by uncontrolled cutting debris.
Ideal for use in microelectronics and other precision applications, this side cutter provides a reliable solution for your cutting tasks.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- regular
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Max Ø soft Max Ø soft
- 1.57 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 14
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 10.16 mm
- Length Length
- 115 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 12 mm
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Type of pliers
Max Ø soft
Max Ø medium
Max Ø hard
Head shape
Degree of bending
Price
Compare
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
0.51 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
with bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel
regular
Diagonal cutting pliers
1.57 mm
1.02 mm
without bevel (flush cut)
regular
Diagonal cutting pliers
1.57 mm
0.78 mm
without bevel
extra small
Diagonal cutting pliers
0.64 mm
0.4 mm
angled
without bevel
small
oblique cutting pliers
1.57 mm
1.02 mm
angled
without bevel
small
Oblique end cutting pliers
1.29 mm
0.57 mm
angled
45 °
without bevel
small
Oblique end cutting pliers
1.02 mm
0.4 mm
angled
30 °
