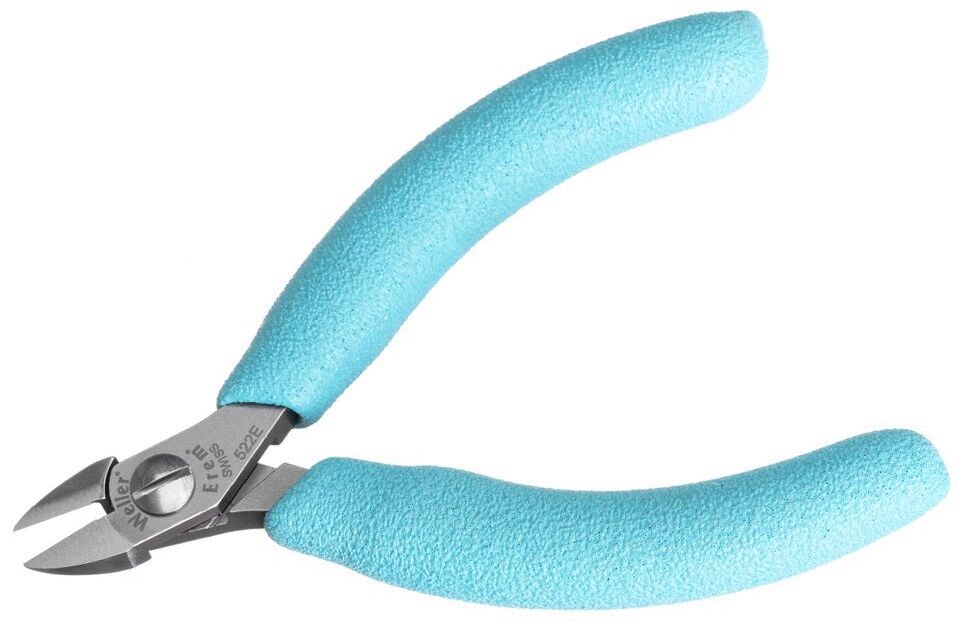

The integrated, double self-locking screw joints provide a large range of motion and minimize wear. An innovative, patented opening system protects against injuries and ensures durability. The ESD-safe handles meet MIL standards with a transition resistance between 10^5 and 10^9 Ohm.
The side cutter is equipped with a 'Stop! Collision Prevention System' that prevents the crossing of the blades, thus eliminating damage. An optional wire holder is available, which reduces the risk of eye injuries and damage to assemblies from uncontrolled cutting debris.
The cutting performance of the tool is optimal for hard and soft steel wires as well as copper wire and cables. Variants are available with small and large bevels, and a version without a bevel for a flush cut. The total length of the side cutter is 115 mm, with a blade length of 10.16 mm and a head width of 9 mm. This precise tool is essential for professionals who value quality and safety.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.57 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Head thickness Head thickness
- 6
- Blade length Blade length
- 10.16 mm
- Length [mm] Length [mm]
- 115 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head width Head width
- 9
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers

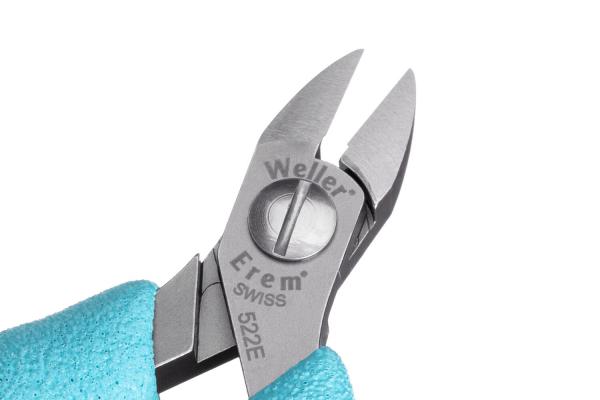

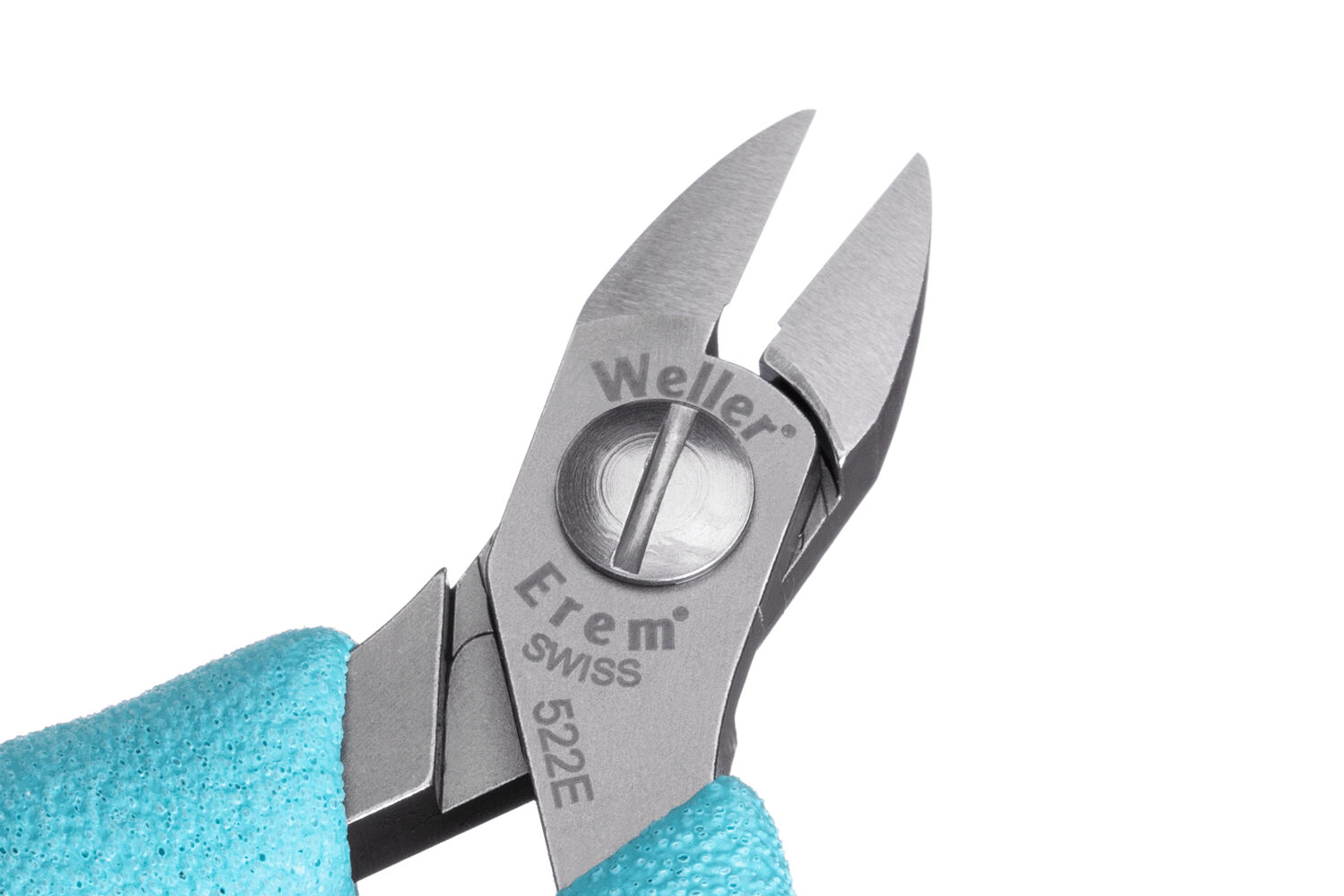

High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.

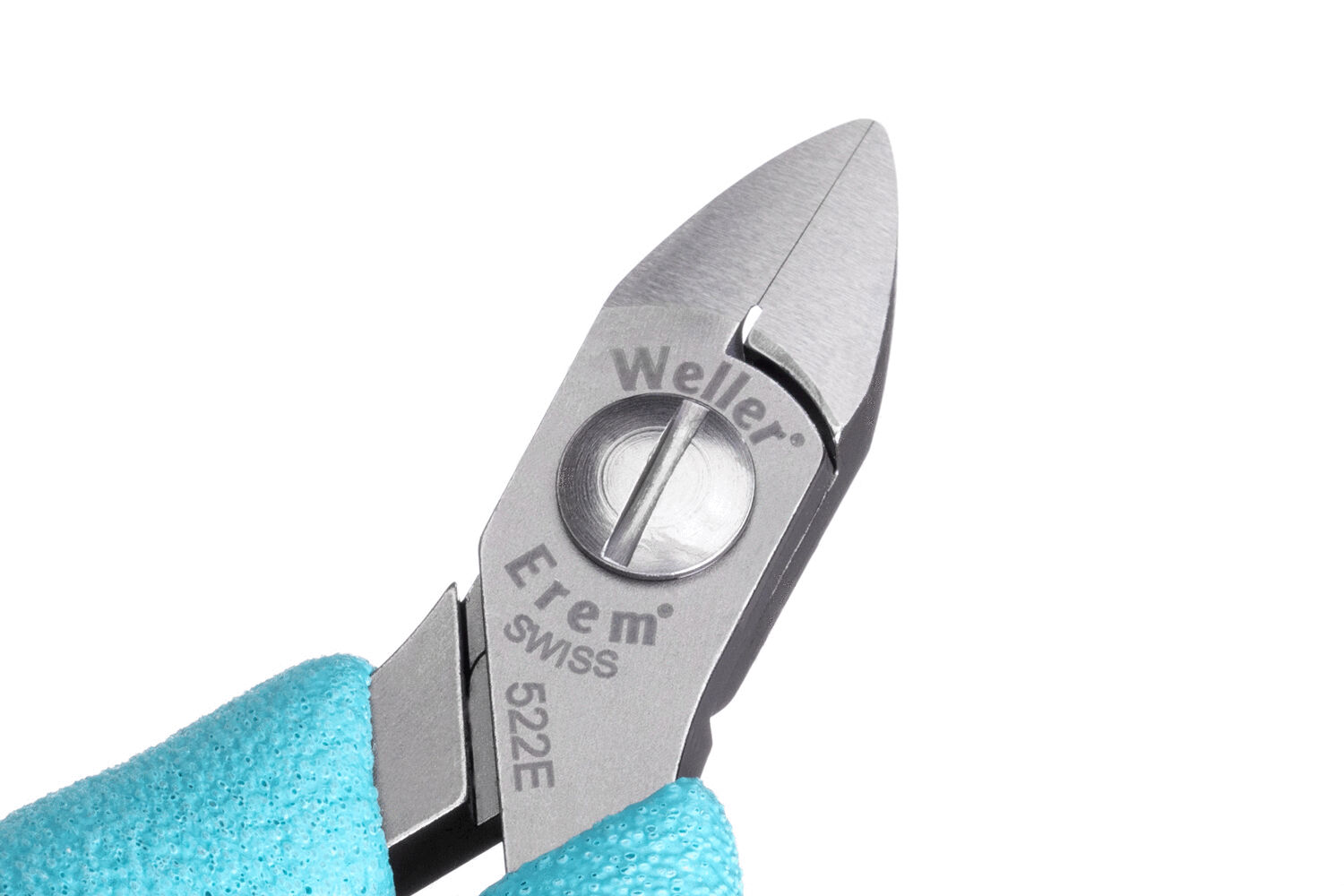

Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
