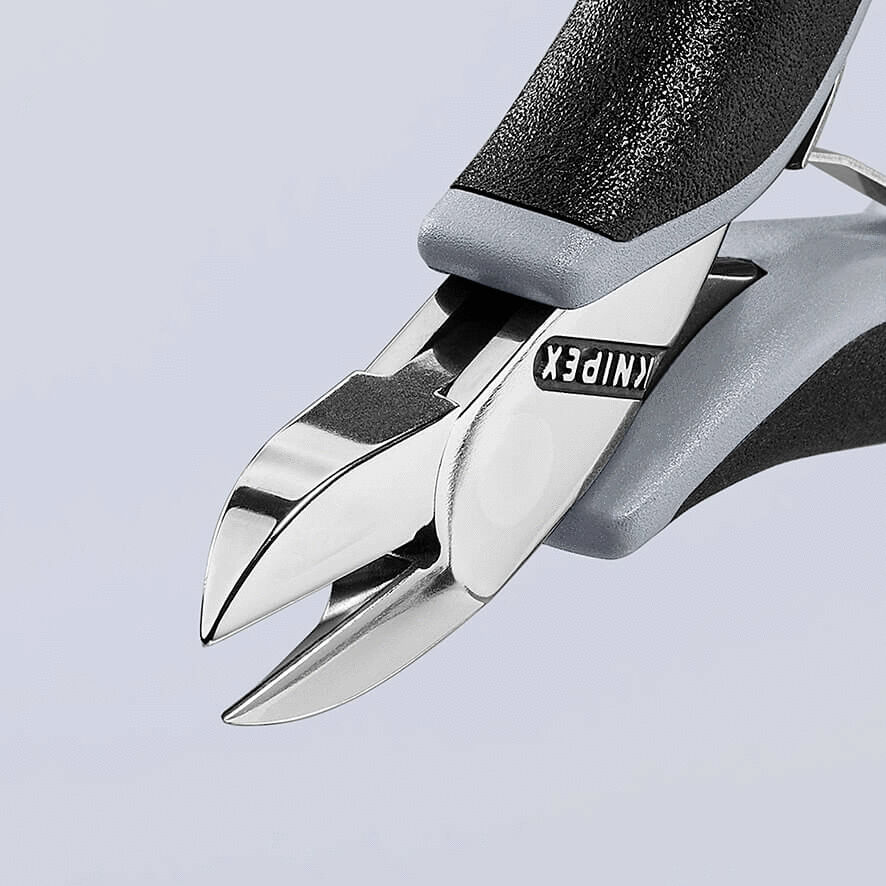

The image displays a small, serrated side cutting pliers with an ergonomic handle made of black and gray plastic. The pliers feature a sharp cutting edge and an engraved brand name.

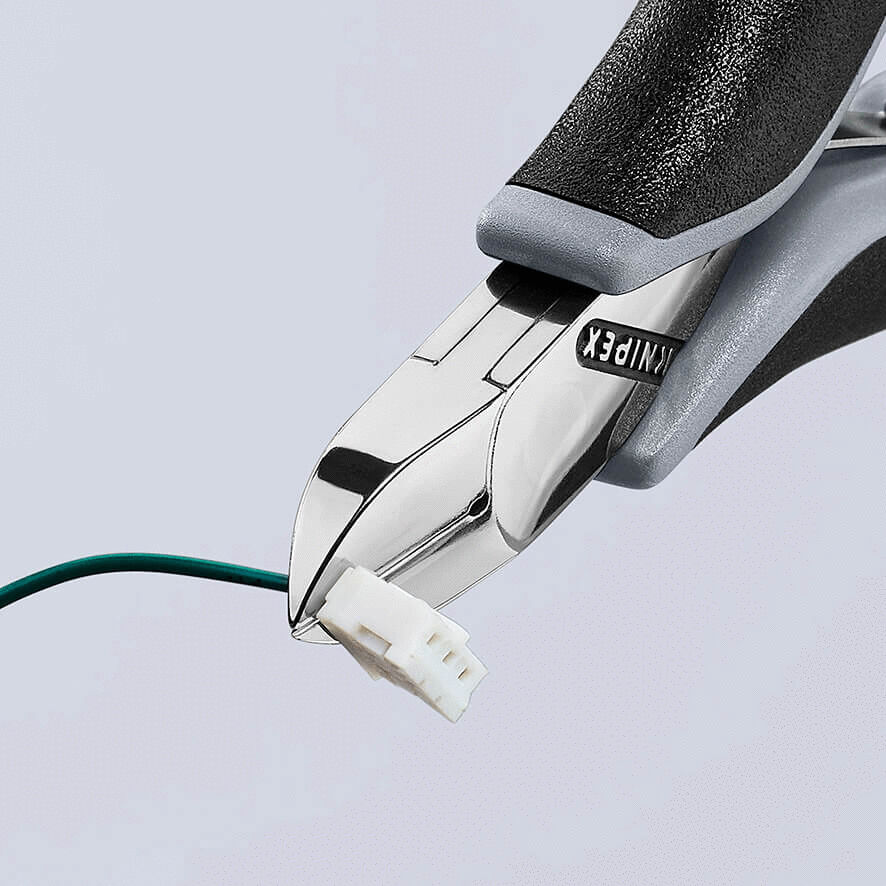

The image shows a pair of pliers gripping a green wire with a white plug. The pliers have black, rubberized handles and a shiny, metallic blade.
The image shows a high-quality nail scissors with shiny, sharp blades and ergonomic, gray rubber handles. It is designed for precise cutting.
Preview: The image displays a small, serrated side cutting pliers with an ergonomic handle made of black and gray plastic. The pliers feature a sharp cutting edge and an engraved brand name.
Preview: The image shows a pair of pliers gripping a green wire with a white plug. The pliers have black, rubberized handles and a shiny, metallic blade.
Preview: The image shows a high-quality nail scissors with shiny, sharp blades and ergonomic, gray rubber handles. It is designed for precise cutting.
Diagonal cutting pliers 7722115 ESD
(Product No.: K-7722.115.ESD)
The image displays a small, serrated side cutting pliers with an ergonomic handle made of black and gray plastic. The pliers feature a sharp cutting edge and an engraved brand name.
The image shows a pair of pliers gripping a green wire with a white plug. The pliers have black, rubberized handles and a shiny, metallic blade.
The image shows a high-quality nail scissors with shiny, sharp blades and ergonomic, gray rubber handles. It is designed for precise cutting.
Mobile Preview: The image displays a small, serrated side cutting pliers with an ergonomic handle made of black and gray plastic. The pliers feature a sharp cutting edge and an engraved brand name.
Mobile Preview: The image shows a pair of pliers gripping a green wire with a white plug. The pliers have black, rubberized handles and a shiny, metallic blade.
Mobile Preview: The image shows a high-quality nail scissors with shiny, sharp blades and ergonomic, gray rubber handles. It is designed for precise cutting.
Notice

Diagonal cutting pliers 7722115 ESD

Diagonal cutting pliers 7722115 ESD

dpvlink:
8838
Type of pliers:
Diagonal cutting pliers
Bevel:
without bevel
Head type/size:
large
Head shape:
round nose
Max Ø soft:
1.29 mm
Max Ø medium:
1.02 mm
Properties:
Further product information

49.40 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers 7722115 ESD

The KNIPEX 7722115 ESD diagonal cutter is distinguished by its robust, load-optimized construction with a riveted and play-free joint. The slender shape of the handles extending to the head of the pliers allows for fine and comfortable gripping between the thumb and forefinger, while the high transmission ratio requires minimal effort.
The load-optimized design provides a more direct working sensation. A low-friction double spring ensures smooth and even opening. The mirror polish combined with a fine oil film effectively protects against rust without causing disruptions in the circuit due to flaking chrome parts. The cutting edges are additionally laser-hardened, achieving a hardness of about 62 HRC.
Technically, the diagonal cutter has a length of 115 mm, a width of 69 mm, and a height of 16 mm, with a weight of 70 g. It is made of high-quality tool steel, mirror-polished, and has a round head shape without a bevel. The maximum diameter for soft materials is 1.29 mm and for medium-hard materials is 1.02 mm. ESD safety is assured, making it ideal for electrostatically sensitive work areas.
Type of pliers
Type of pliers
Diagonal cutting pliers
Bevel
Bevel
without bevel
Head type/size
Head type/size
large
Head shape
Head shape
round nose
Max Ø soft
Max Ø soft
1.29 mm
Max Ø medium
Max Ø medium
1.02 mm
AWG medium
AWG medium
18
AWG soft
AWG soft
16
Head thickness
Head thickness
7.5 mm
Height
Height
16 mm
Length
Length
115 mm
Width
Width
69 mm
Material
Material
Tool steel
Surface
Surface
mirror polished
ESD
ESD
yes
Head width
Head width
11 mm
Jaw length
Jaw length
14 mm
Version
Version
with opening spring
Weight
Weight
70 g
Common

The cutting pliers of the Knipex standard series are equipped with precision-ground cutting edges for finest cutting work, e.g. in electronics and fine mechanics. A low-friction double spring ensures a smooth and even opening. The mirror polish combined with a fine oil film offers a good rust protection so that errors in circuits by flaking chrome parts are prevented.
All versions are electrically dissipative


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 475
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Type of pliers
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Max Ø Piano
Degree of bending
Price
Compare
K-7702.115.ESD - Diagonal cutting pliers 7702115 ESD
K-7702.115.ESD
Diagonal cutting pliers 7702115 ESD
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.15 mm
0,64 mm


49.10 CHF
K-7712.115.ESD - Diagonal cutting pliers 7712115 ESD
K-7712.115.ESD
Diagonal cutting pliers 7712115 ESD
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.15 mm
0,64 mm


57.70 CHF
K-7722.115.ESD - Diagonal cutting pliers 7722115 ESD
K-7722.115.ESD
Diagonal cutting pliers 7722115 ESD
Diagonal cutting pliers
without bevel
large
round nose
1.29 mm
1.02 mm



49.40 CHF
K-7732.115.ESD - Diagonal cutting pliers 7732115 ESD
K-7732.115.ESD
Diagonal cutting pliers 7732115 ESD
Diagonal cutting pliers
with bevel
large
snipe nose
1.29 mm
1.02 mm
0.51 mm


52.80 CHF
K-7742.115.ESD - Diagonal cutting pliers 7742115 ESD
K-7742.115.ESD
Diagonal cutting pliers 7742115 ESD
Diagonal cutting pliers
without bevel
large
snipe nose
1.29 mm
0.81 mm
0.32 mm


52.50 CHF
K-7752.115.ESD - Diagonal cutting pliers 7752115 ESD
K-7752.115.ESD
Diagonal cutting pliers 7752115 ESD
Diagonal cutting pliers
with bevel
large
snipe nose
1.02 mm
0.81 mm
0.51 mm


55.10 CHF
K-7772.115.ESD - Diagonal cutting pliers 7772115 ESD
K-7772.115.ESD
Diagonal cutting pliers 7772115 ESD
Diagonal cutting pliers
with bevel
regular
snipe nose
0.81 mm




52.50 CHF
K-7702.120H.ESD - Diagonal cutting pliers 7702120 H ESD
K-7702.120H.ESD
Diagonal cutting pliers 7702120 H ESD
Diagonal cutting pliers
large bevel
large
round nose
2.05 mm
1.45 mm
1.02 mm
0.64 mm

142.60 CHF
K-7702.135H.ESD - Diagonal cutting pliers 7702135 H ESD
K-7702.135H.ESD
Diagonal cutting pliers 7702135 H ESD
Diagonal cutting pliers
large bevel
extra large
round nose
2.05 mm
1.63 mm
1,15 mm
0.81 mm

146.70 CHF
K-7732.120H.ESD - Diagonal cutting pliers 7732120 H ESD
K-7732.120H.ESD
Diagonal cutting pliers 7732120 H ESD
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.02 mm
0,64 mm
0.2 mm

146.00 CHF
K-6412.115.ESD - End cutting pliers 6412115 ESD
K-6412.115.ESD
End cutting pliers 6412115 ESD
end cutting pliers
without bevel

oblique
2.05 mm
0.81 mm
0.51 mm


56.15 CHF
K-6432.120.ESD - End cutting pliers 6432120 ESD
K-6432.120.ESD
End cutting pliers 6432120 ESD
oblique cutting pliers
with bevel

oblique
2.05 mm
0.81 mm
0.51 mm

15 °
61.25 CHF
K-6462.120.ESD - End cutting pliers 6462120 ESD
K-6462.120.ESD
End cutting pliers 6462120 ESD
Oblique end cutting pliers
with bevel

oblique / long
0.64 mm



65 °
62.55 CHF
