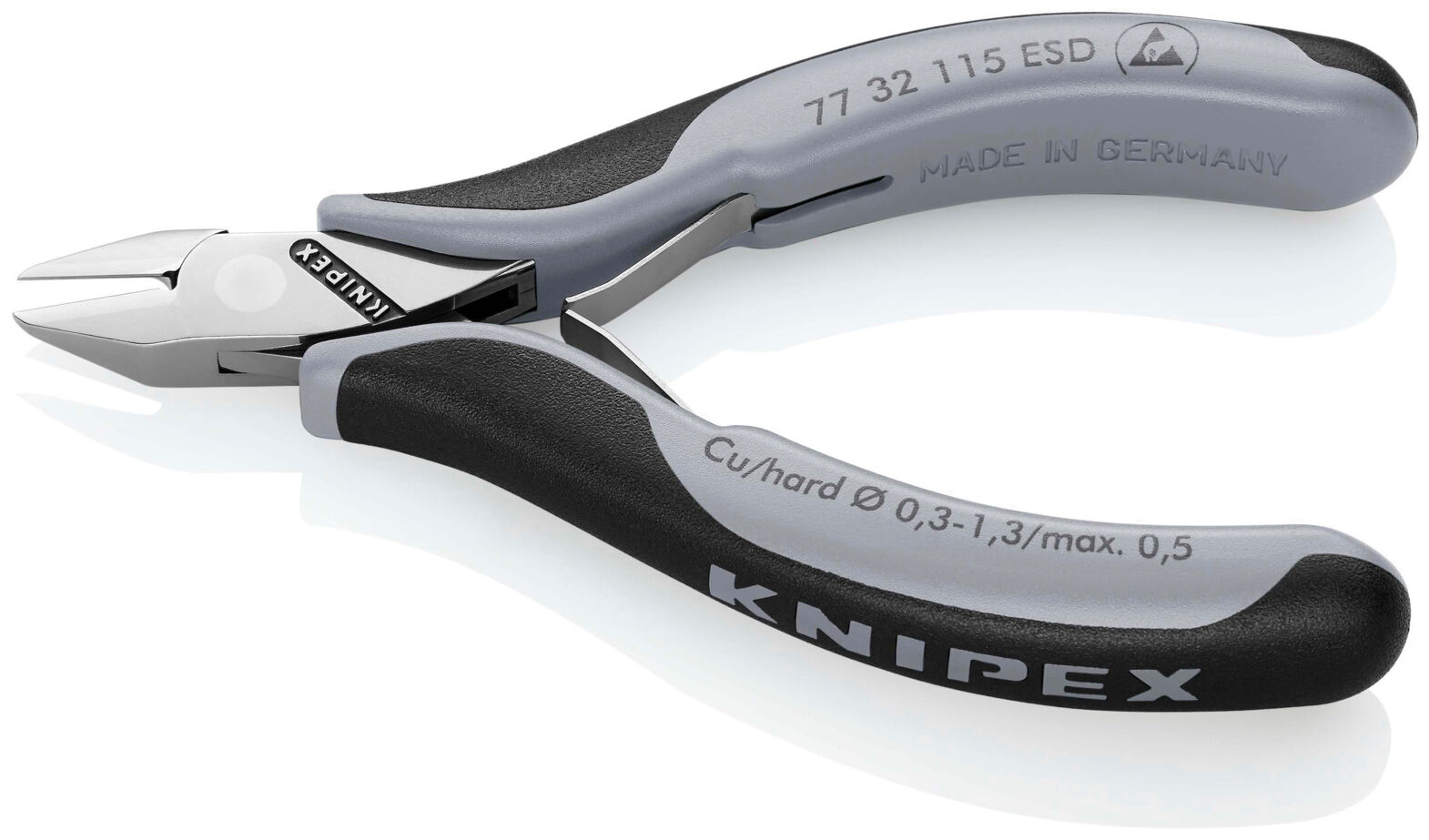

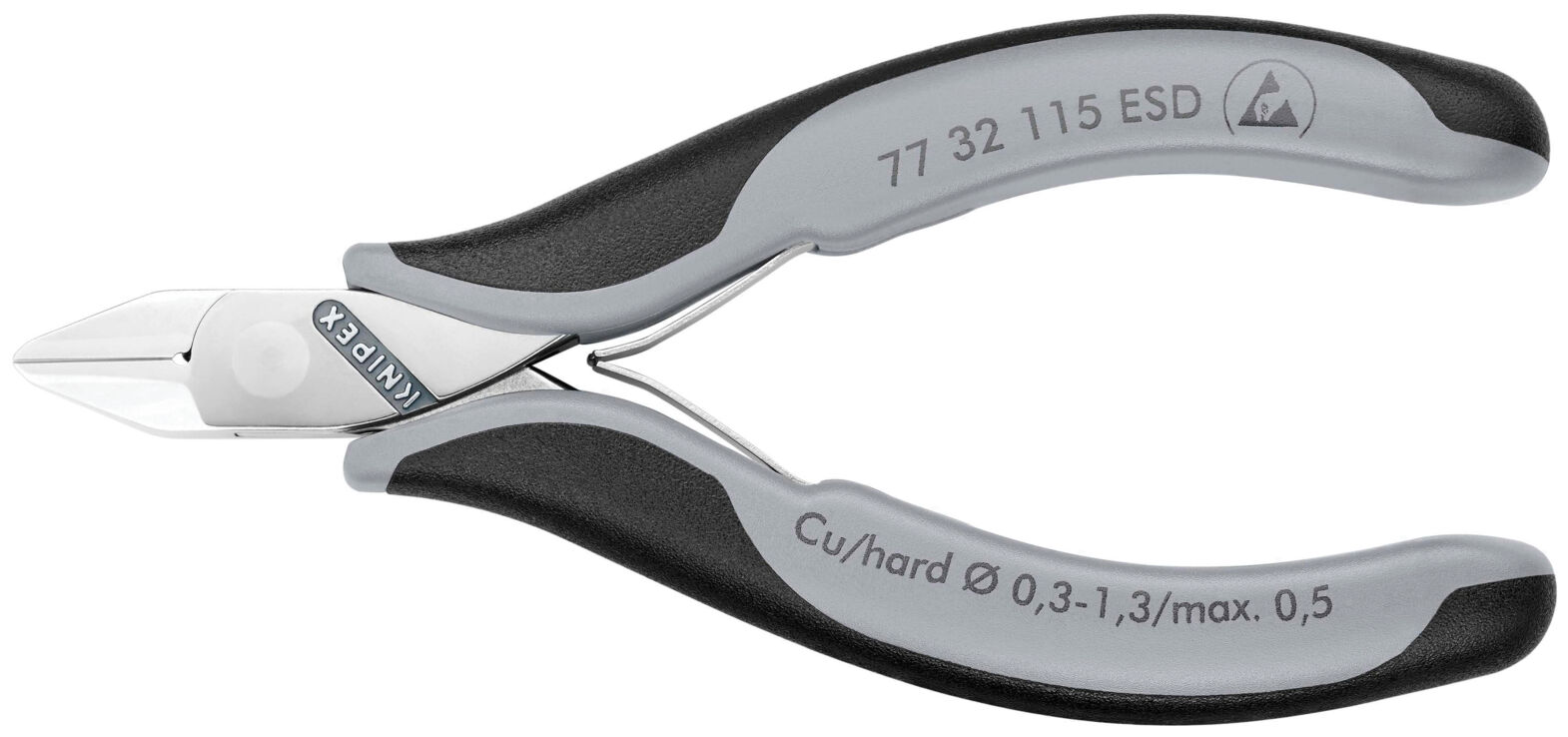

Diagonal cutting pliers 7732115 ESD
Diagonal cutting pliers 7732115 ESD

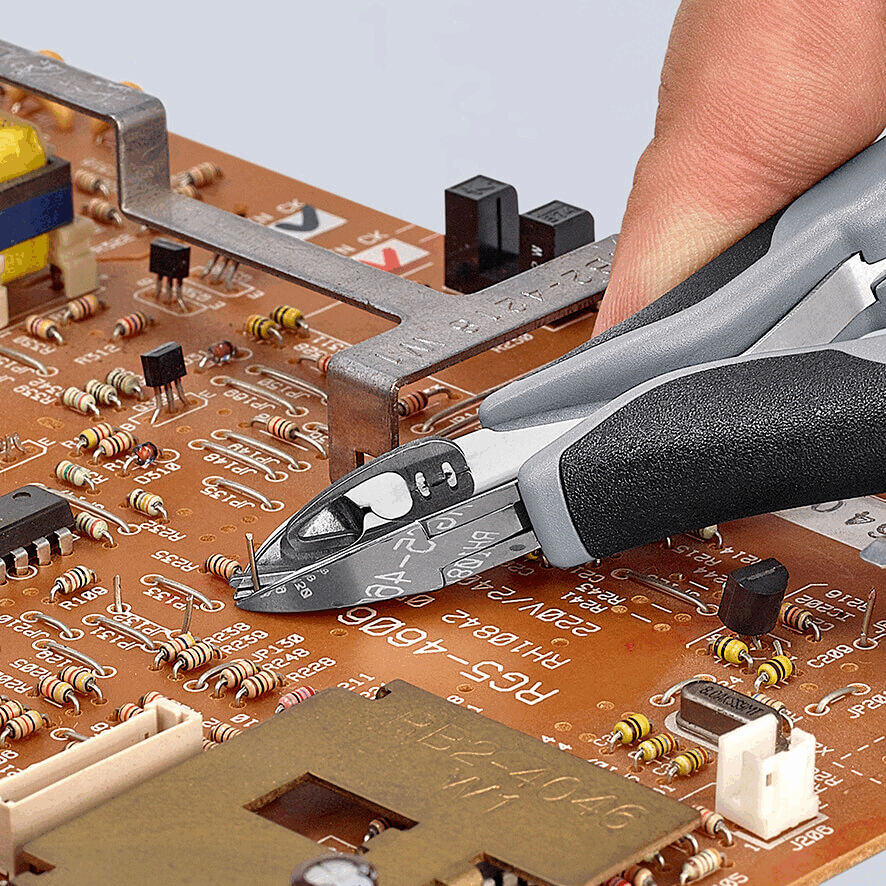

The KNIPEX 7732115 ESD diagonal cutter combines a robust, load-optimized construction with a riveted and play-free joint, ensuring long-lasting use. With a total length of 115 mm and a weight of only 67 g, this tool offers high handling and precision. The slim design of the handles allows for fine and comfortable gripping, ideal for precise work between the thumb and forefinger.The high leverage of the diagonal cutter ensures low effort during cutting. The laser-hardened edges with a hardness of approximately 62 HRC easily handle soft materials up to a diameter of 1.29 mm, medium hardness up to 1.02 mm, and hard materials up to 0.5 mm. A low-friction double spring supports the smooth and even opening of the pliers.
Additionally, the mirror-polished surface with a fine oil film effectively protects against rust without flaking chrome parts and disturbing electronic circuits. The ESD safety of the diagonal cutter prevents electrostatic discharges, making it particularly suitable for use in sensitive electronic environments.
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- large
- Head shape Head shape
- snipe nose
- Max Ø soft Max Ø soft
- 1.29 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0.51 mm
- AWG hard AWG hard
- 24
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 7 mm
- Height Height
- 17 mm
- Length Length
- 115 mm
- Width Width
- 54 mm
- Material Material
- Tool steel
- Surface Surface
- mirror polished
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 14 mm
- Version Version
- with opening spring
- Weight Weight
- 67 g
The cutting pliers of the Knipex standard series are equipped with precision-ground cutting edges for finest cutting work, e.g. in electronics and fine mechanics. A low-friction double spring ensures a smooth and even opening. The mirror polish combined with a fine oil film offers a good rust protection so that errors in circuits by flaking chrome parts are prevented.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
With bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Type of pliers
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Max Ø Piano
Degree of bending
Price
Compare
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.15 mm
0,64 mm
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.15 mm
0,64 mm
Diagonal cutting pliers
without bevel
large
round nose
1.29 mm
1.02 mm
Diagonal cutting pliers
with bevel
large
snipe nose
1.29 mm
1.02 mm
0.51 mm
Diagonal cutting pliers
without bevel
large
snipe nose
1.29 mm
0.81 mm
0.32 mm
Diagonal cutting pliers
with bevel
large
snipe nose
1.02 mm
0.81 mm
0.51 mm
Diagonal cutting pliers
with bevel
regular
snipe nose
0.81 mm
Diagonal cutting pliers
large bevel
large
round nose
2.05 mm
1.45 mm
1.02 mm
0.64 mm
Diagonal cutting pliers
large bevel
extra large
round nose
2.05 mm
1.63 mm
1,15 mm
0.81 mm
Diagonal cutting pliers
with bevel
large
round nose
1,63 mm
1.02 mm
0,64 mm
0.2 mm
end cutting pliers
without bevel
oblique
2.05 mm
0.81 mm
0.51 mm
oblique cutting pliers
with bevel
oblique
2.05 mm
0.81 mm
0.51 mm
15 °
Oblique end cutting pliers
with bevel
oblique / long
0.64 mm
65 °
