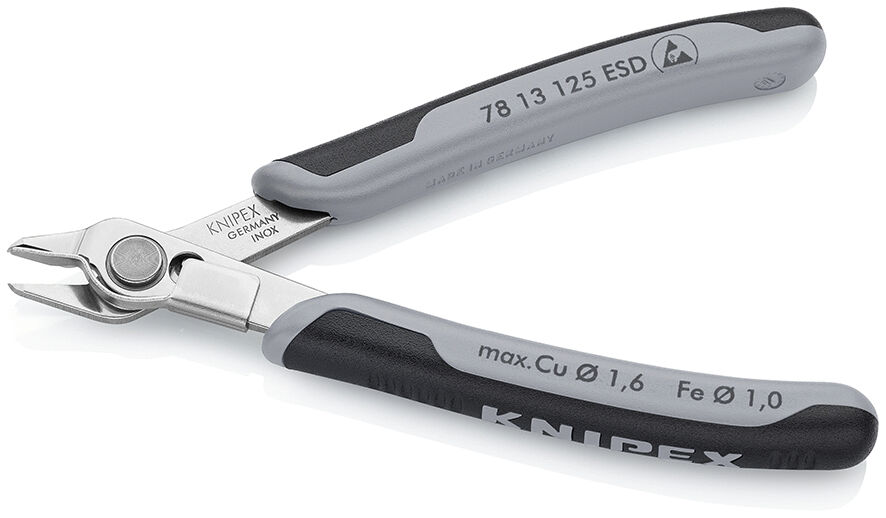

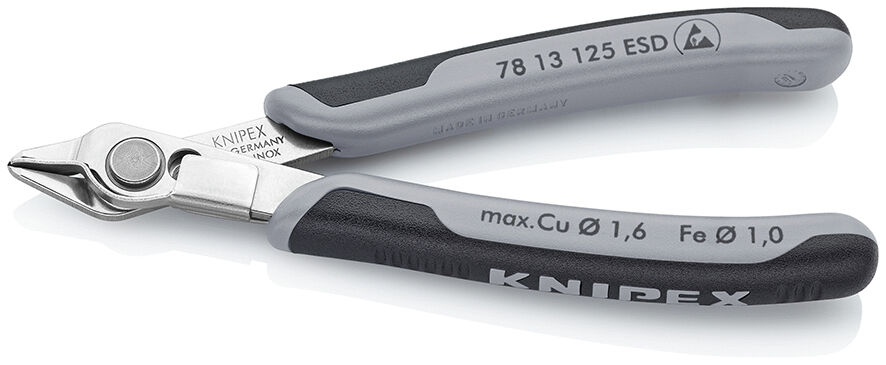

Diagonal cutting pliers 7813125 ESD

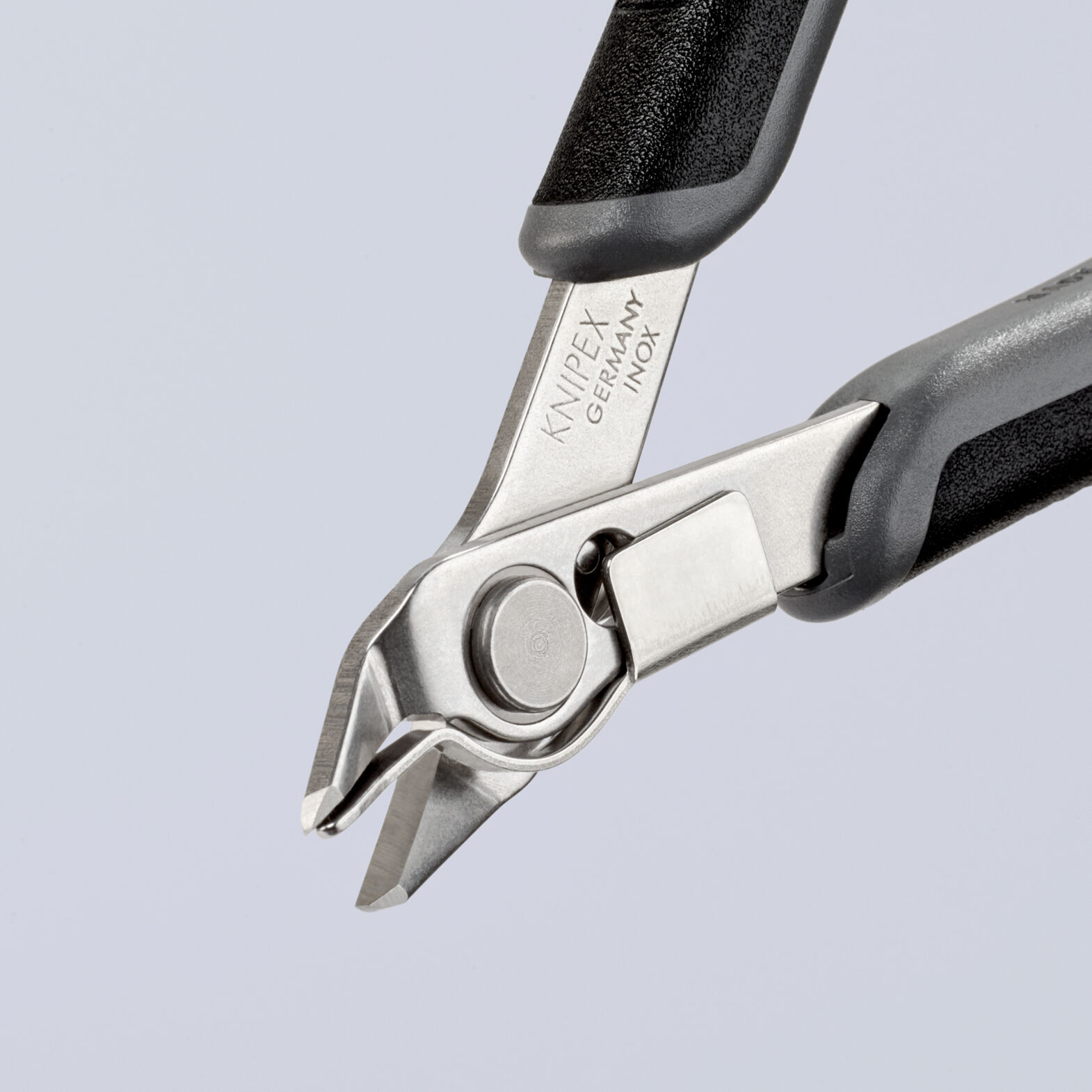

The Knipex 7813125 ESD diagonal cutter, specifically designed for precise cutting tasks in electronics and fine mechanics, guarantees standard-compliant ESD protection and prevents uncontrolled electrostatic discharges. This tool meets the stringent standards of IEC TR 61 340-5, DIN EN 61 340-5, and SP Method 2472, making it ideal for use in sensitive electronic environments.Equipped with electrically conductive, dissipative handles, this diagonal cutter allows for slow charge equalization. The cutting edges are made of high-quality, stainless steel and are ground for ultra-precise, facet-free cuts. With a cutting edge hardness of approximately 54 HRC and a controlled micro-cutting edge offset, the tool offers a long service life and the ability to precisely cut even the thinnest wires.

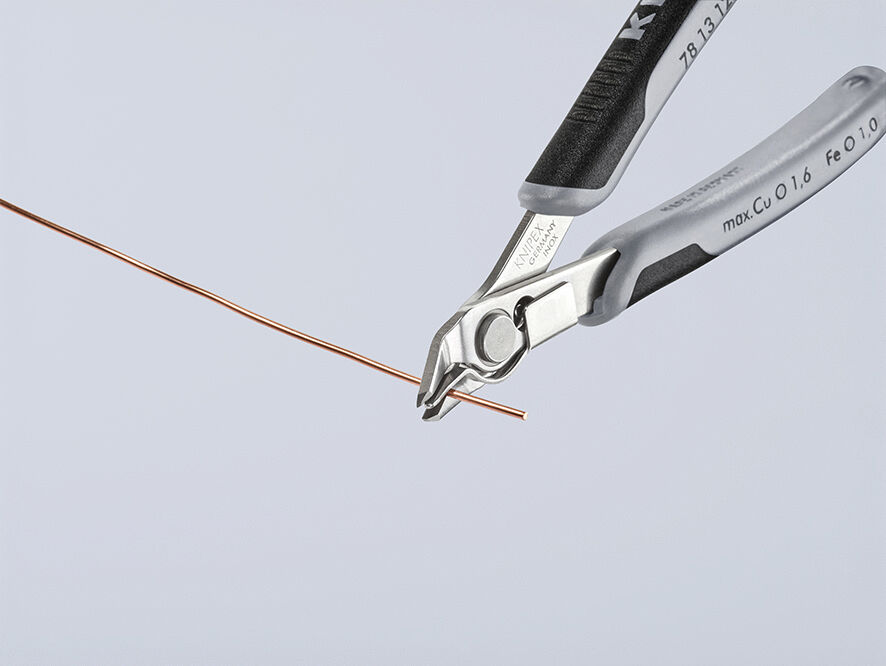

The pliers feature a spring opening and an opening limit, which, along with the extremely smooth operation, ensure fatigue-free work. The precisely shaped tips allow for cutting wires from a diameter of 0.2 mm that are directly adjacent to housings or components. With an overall length of 125 mm and a weight of only 57 g, this pliers is handy and efficient for daily use.
Manufactured by KNIPEX, the 7813125 ESD diagonal cutter stands for quality and reliability in every detail, from material selection to processing.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Version Version
- with wire clamp / with opening spring
- Surface Surface
- polished
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 14
- Head thickness Head thickness
- 7.5 mm
- Height Height
- 12 mm
- Length Length
- 125 mm
- Width Width
- 61 mm
- Material Material
- stainless steel
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 57 g
The Knipex Super-Knips series have precision-ground cutting edges for a clean, planar cutting without bevel, e.g. for the use in electronics and fine mechanics. The very smooth-running joint and the opening spring offer high ease of use.
All versions are electrically dissipative
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Diagonal cutting pliers 7803125 ESD
Precise cutting of even adjacent, fine wires - ESD protection for electronics - with/without wire clamp
Extremely sharp cutting edges
The Knipex Electronic Super Knips are made of surgical steel (INOX steel). The cutting edges are ground without a bevel for flush cutting. The burnished versions are made of tool steel.

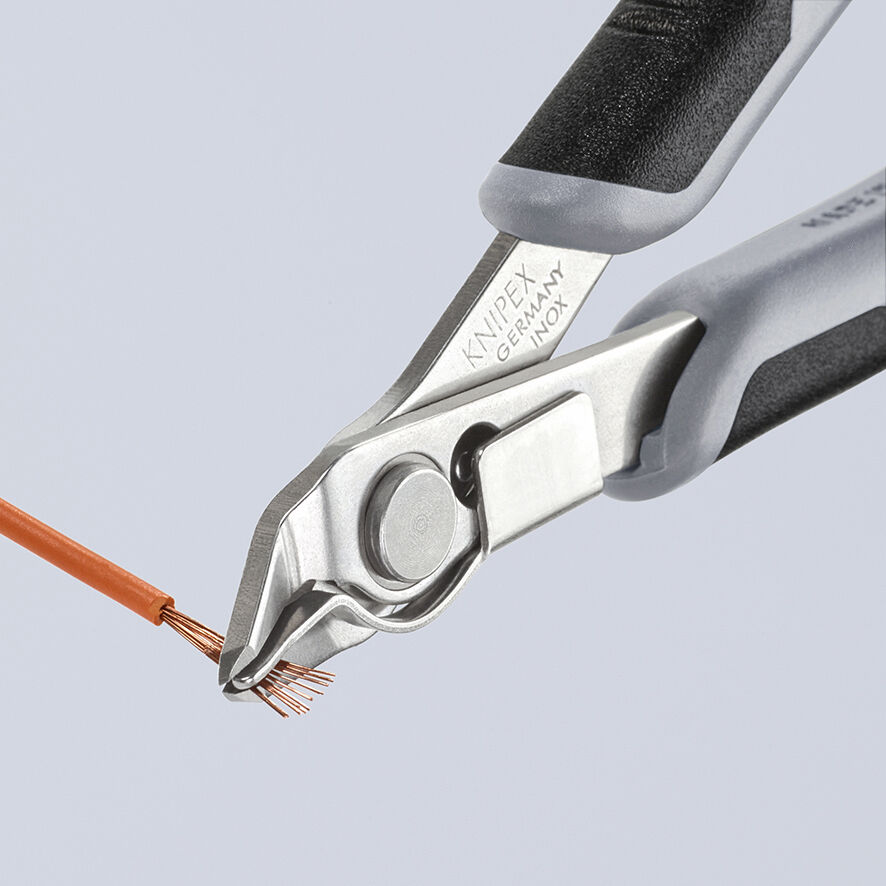

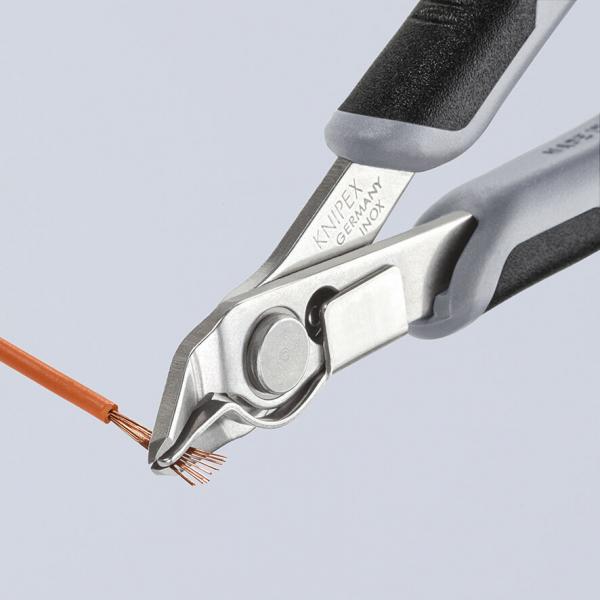

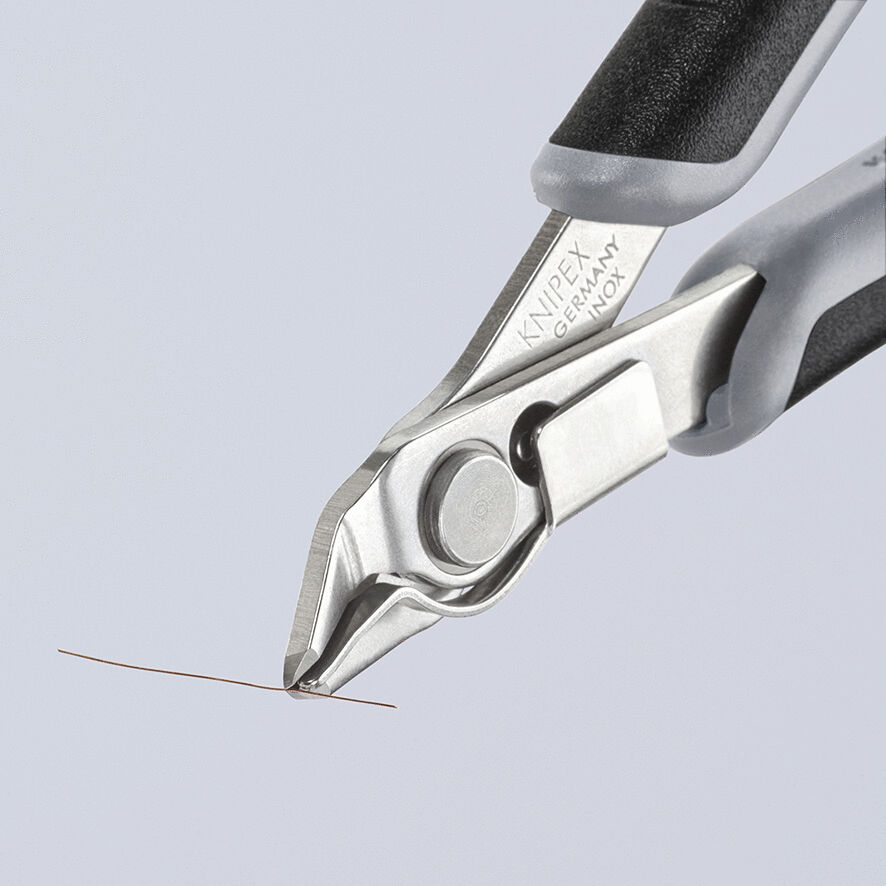

Thanks to the precisely machined tips, even fine wires, e.g. on housings and components, can be cut precisely.
When working on electronic components and in precision mechanics, dexterity is required. Thanks to the frictionless torsion spring, the Knipex Electronic Super Knips is so smooth-running that the force can be very finely dosed - with fingertip sensitivity. The opening spring and opening limiter make work even easier.
ESD protection against uncontrolled electrostatic discharge
Sudden discharges due to electrostatic charge differences are particularly feared in electronics. With the pliers, electrostatic energy is dissipated evenly and in a controlled manner via the handles. The handles are conductive - i.e. not voltage-insulating - and therefore enable slow charge equalization. With ESD protection through dissipative discharge, the Knipex Electronic Super Knips meets the requirements of your workplace.
The design with integrated wire clamp prevents wire sections from jumping off in an uncontrolled manner: a safety aspect, especially when cutting wires that are located in housings with electronic assemblies.
