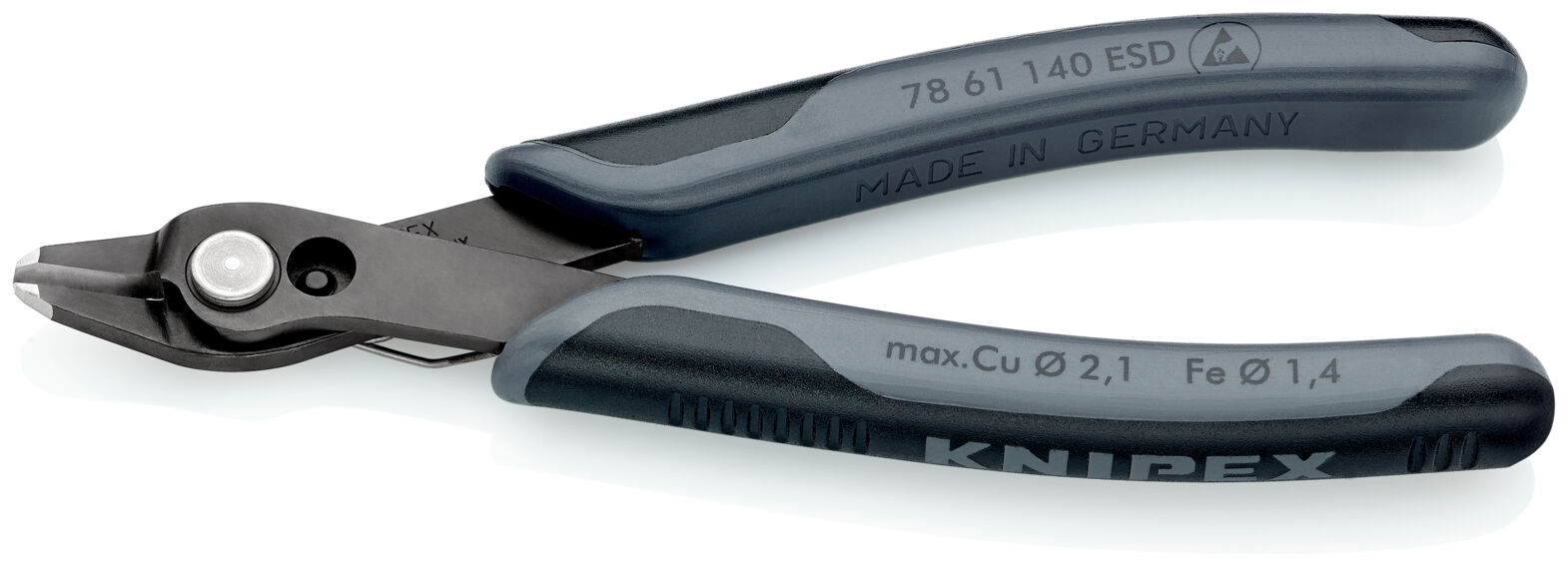

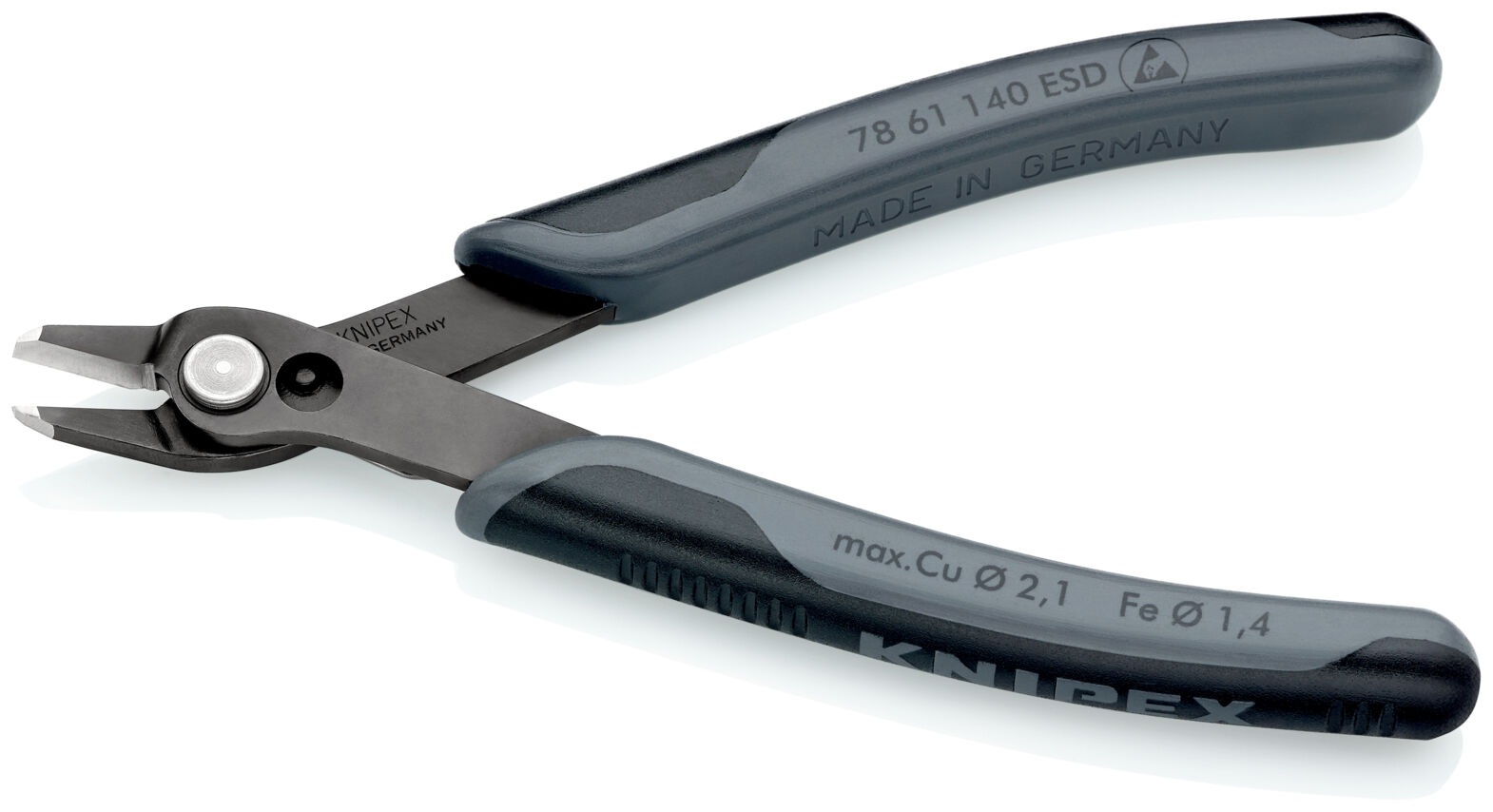

Diagonal cutting pliers 7861140 ESD
The KNIPEX 7861140 ESD side cutter is a highly specialized tool for the finest cutting tasks in electronics and precision mechanics. This side cutter enables precise shortening of cable ties and cutting of adjacent wires from Ø 0.2 mm. The cutting edges are ground and without a bevel for a flush cut, which, along with the controlled micro-edge offset, ensures a long service life and ultra-precise cuts.The pliers are made of high-quality tool steel, burnished, and have a head shape that is angled. They feature a spring opening and an opening limit that support fatigue-free work. The extremely smooth movement of the joint, which is secured with a stainless steel rivet, also contributes to the ergonomics. With a length of 140 mm and a weight of only 77 g, the side cutter is handy and efficient in use.
The ESD-safe handles protect sensitive electronic components from static discharge. The technical specifications include a maximum cutting capacity of 2.1 mm for soft and 1.4 mm for medium-hard materials. The head width is 15.7 mm and the head thickness is 9.2 mm, enhancing the stability and cutting performance of the tool. Ideal for professional users in the electronics industry and related fields.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 2.05 mm
- Max Ø medium Max Ø medium
- 1.45 mm
- Version Version
- with opening spring
- Surface Surface
- brilliant
- AWG medium AWG medium
- 15
- AWG soft AWG soft
- 12
- Head thickness Head thickness
- 9.2 mm
- Height Height
- 14 mm
- Length Length
- 140 mm
- Width Width
- 83 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head shape Head shape
- angled
- Head width Head width
- 15.7 mm
- Jaw length Jaw length
- 12.3 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 77 g
The Knipex Super-Knips series have precision-ground cutting edges for a clean, planar cutting without bevel, e.g. for the use in electronics and fine mechanics. The very smooth-running joint and the opening spring offer high ease of use.
All versions are electrically dissipative
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Diagonal cutting pliers 7803125 ESD
Precise cutting of even adjacent, fine wires - ESD protection for electronics - with/without wire clamp
Extremely sharp cutting edges
The Knipex Electronic Super Knips are made of surgical steel (INOX steel). The cutting edges are ground without a bevel for flush cutting. The burnished versions are made of tool steel.
Thanks to the precisely machined tips, even fine wires, e.g. on housings and components, can be cut precisely.
When working on electronic components and in precision mechanics, dexterity is required. Thanks to the frictionless torsion spring, the Knipex Electronic Super Knips is so smooth-running that the force can be very finely dosed - with fingertip sensitivity. The opening spring and opening limiter make work even easier.
ESD protection against uncontrolled electrostatic discharge
Sudden discharges due to electrostatic charge differences are particularly feared in electronics. With the pliers, electrostatic energy is dissipated evenly and in a controlled manner via the handles. The handles are conductive - i.e. not voltage-insulating - and therefore enable slow charge equalization. With ESD protection through dissipative discharge, the Knipex Electronic Super Knips meets the requirements of your workplace.
The design with integrated wire clamp prevents wire sections from jumping off in an uncontrolled manner: a safety aspect, especially when cutting wires that are located in housings with electronic assemblies.
