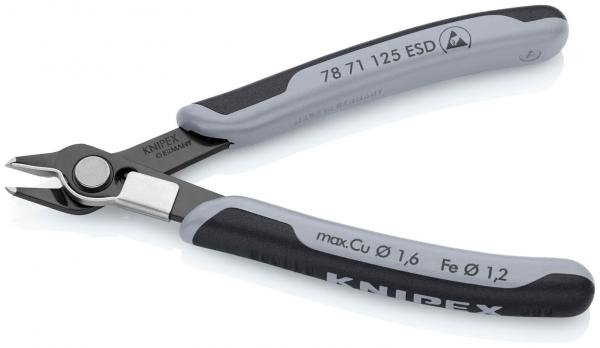

The image shows a small pair of pliers with precise cutting edges. The handles are black with gray rubber inserts for better grip. It is intended for fine work.

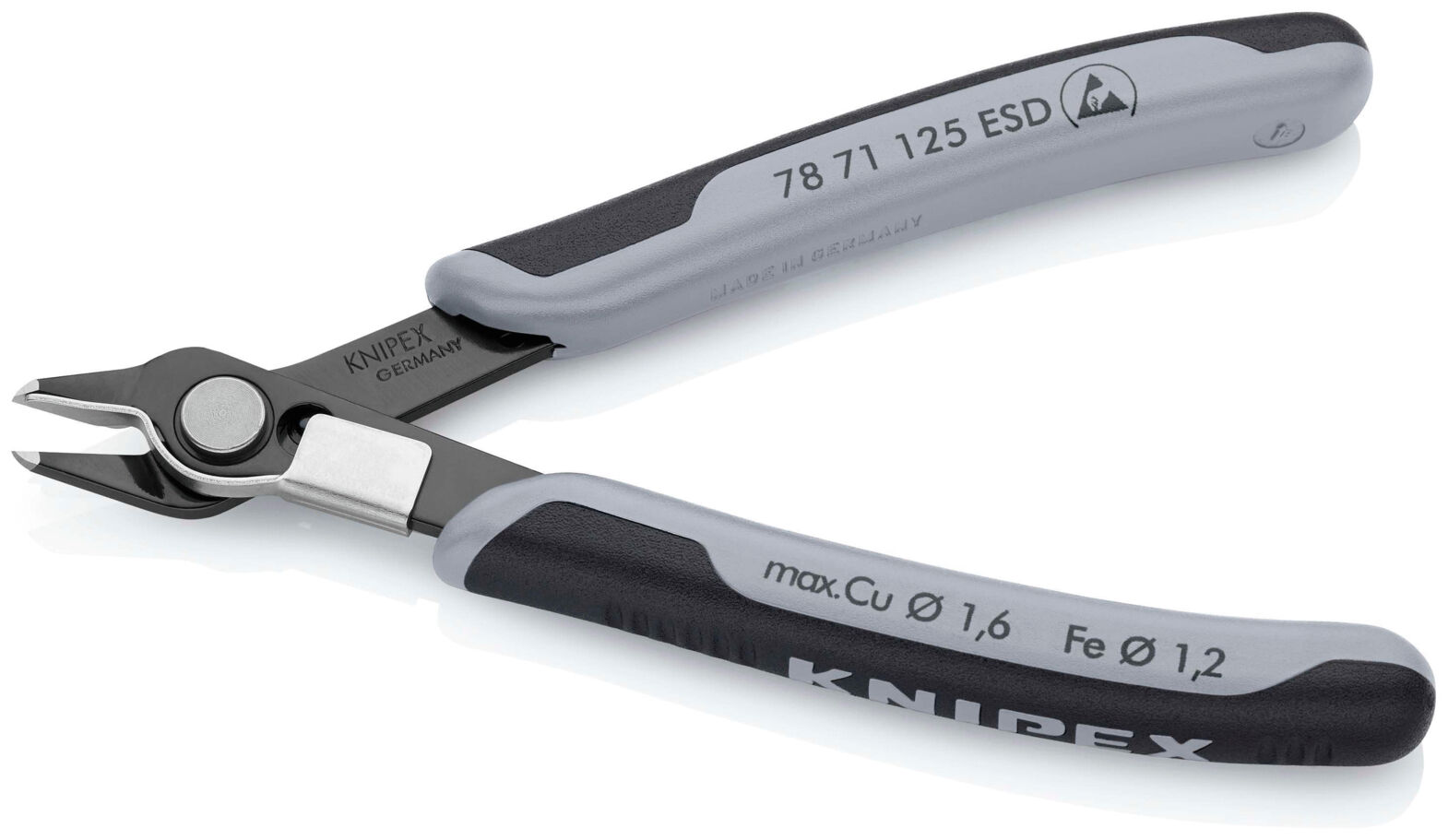

The image shows a pair of wire cutters. They have gray rubber grips and a metallic tip. The tip is narrow and sharp, ideal for cutting wires and small objects.

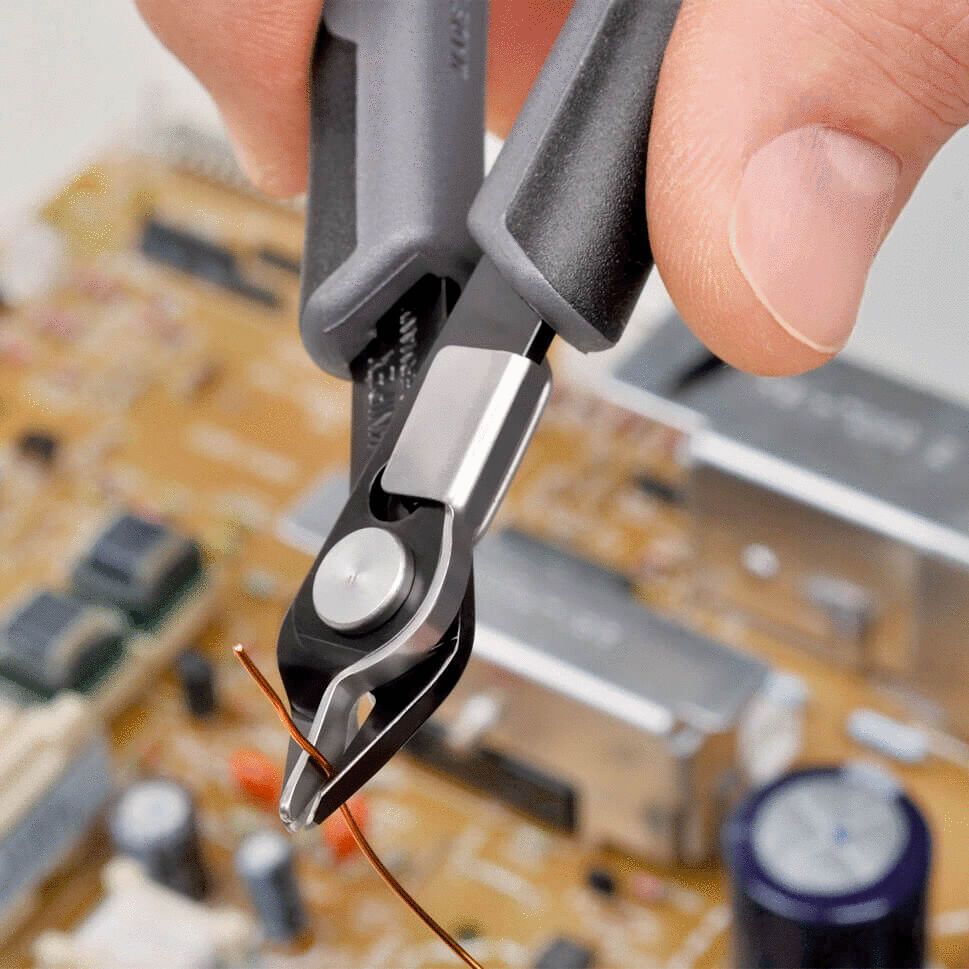

A hand holds a wire cutter pliers gripping a thin copper wire. In the background, a circuit board with various components is visible.

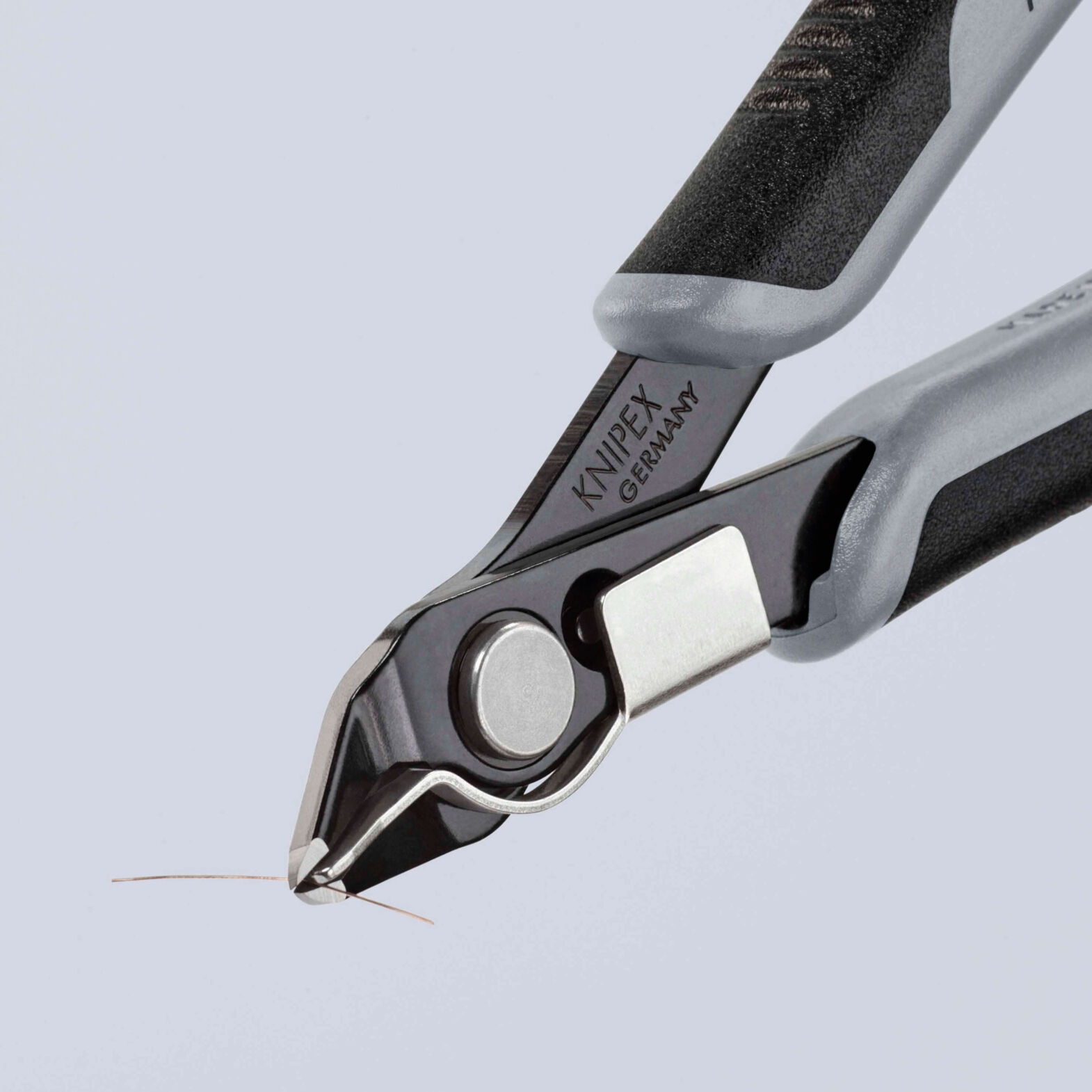

The image shows a wire cutter pliers. The grip areas are black and gray, while the cutting blades appear shiny and sturdy. A wire is held at the end of the pliers.

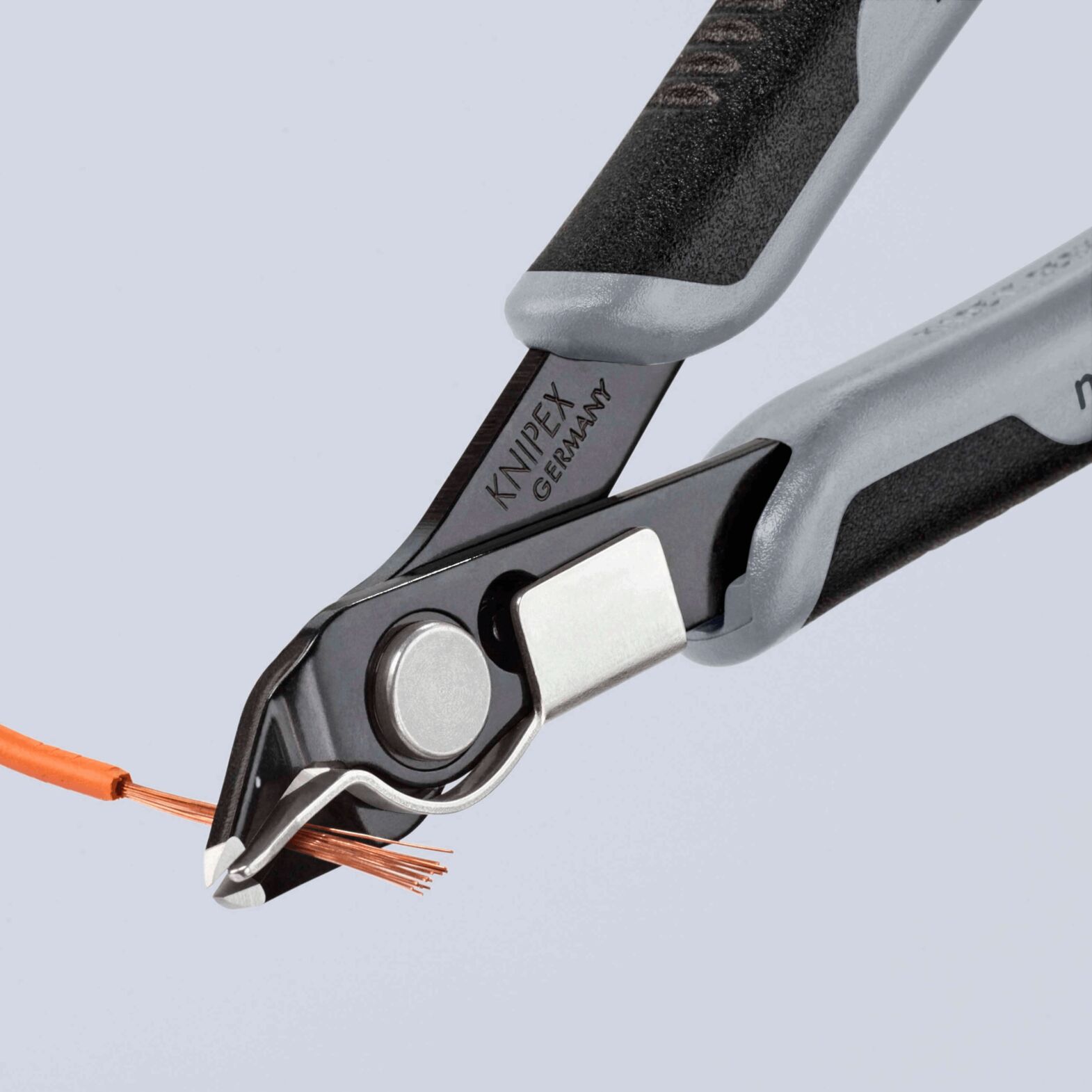

The image shows a pair of pliers with black and gray handles. The pliers are cutting an orange cable bundle. The cutting area is designed to be precise and sharp.

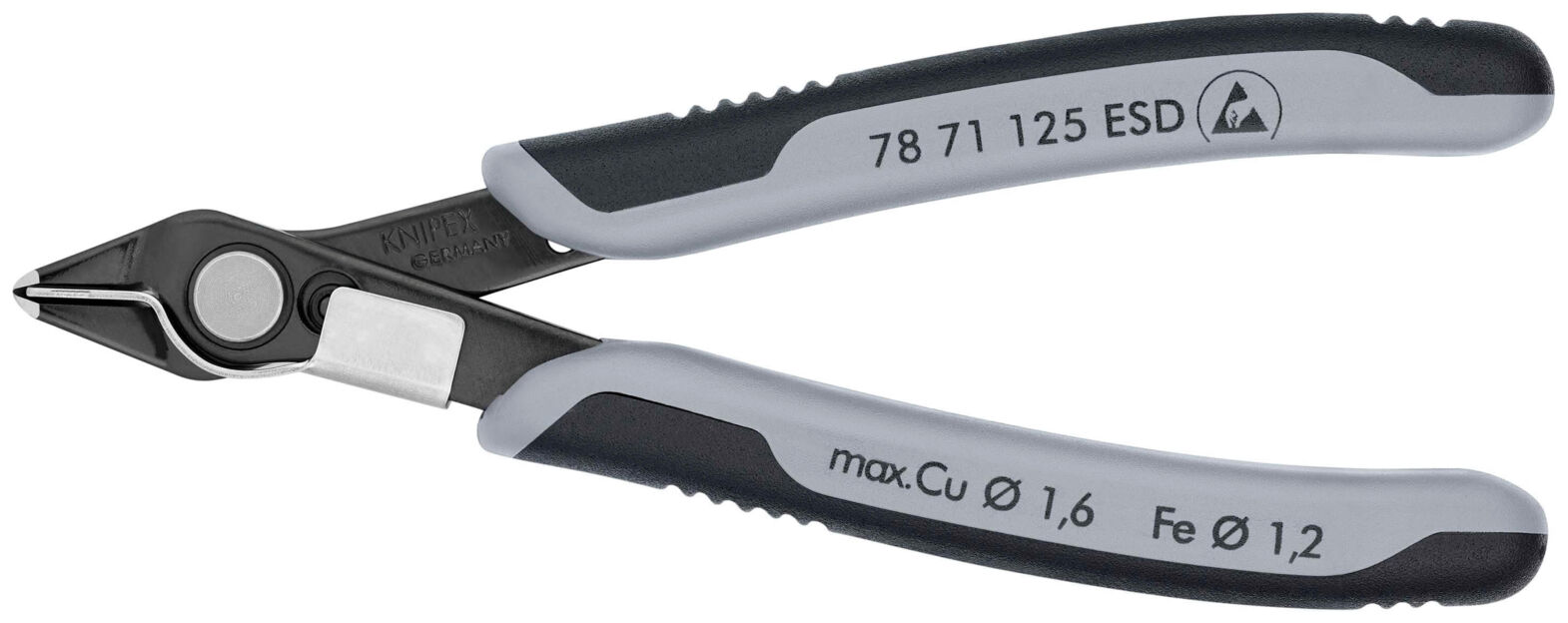

The image shows a diagonal pliers with a black and gray grip area. The cutting edge is sharp and shiny, ideal for precise cutting of wires or fine materials.

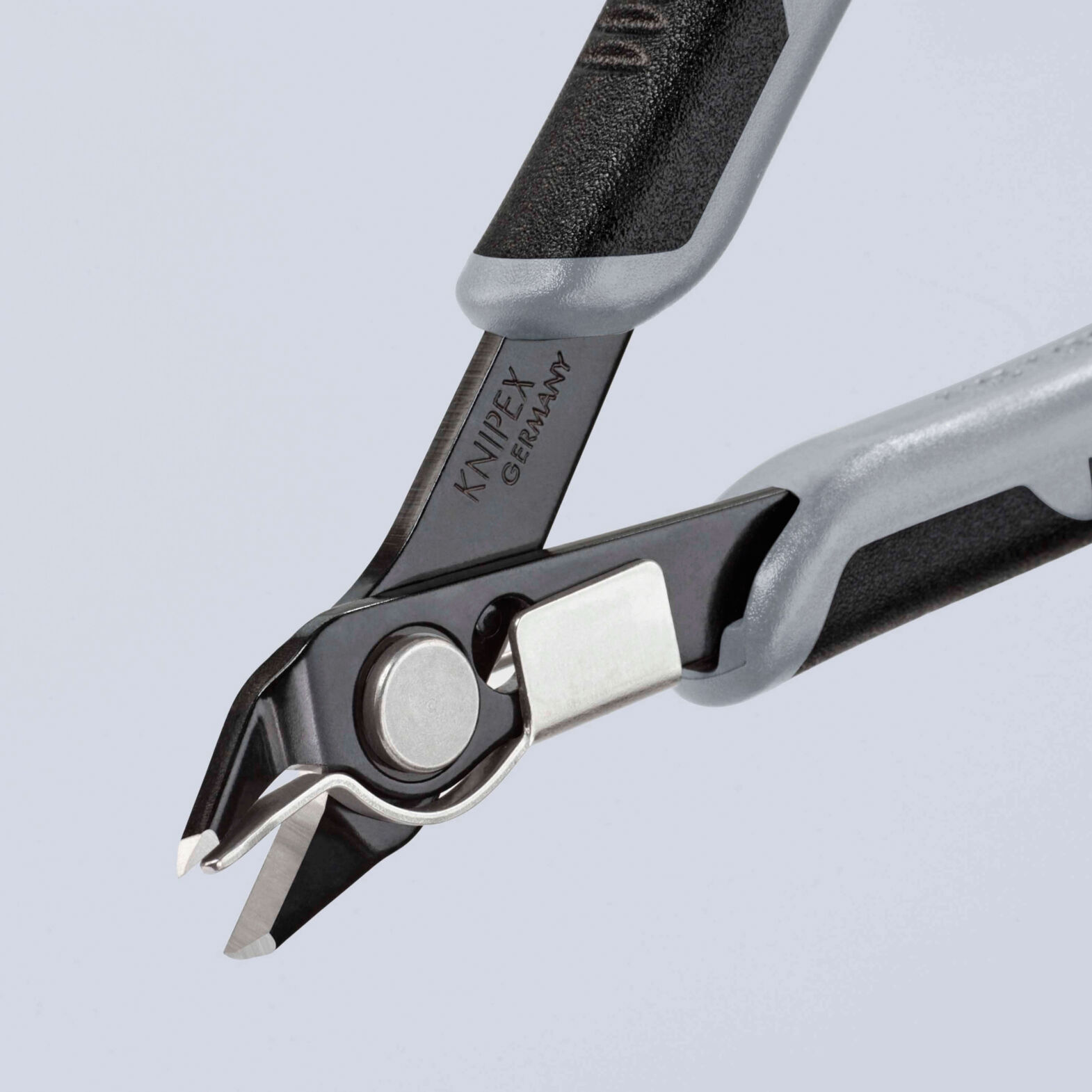

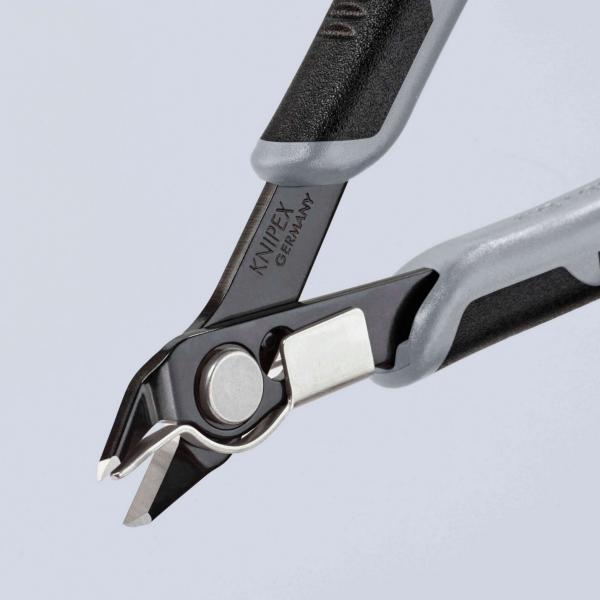

The image shows a special pair of pliers with pointed, curved blades. The handle is black with gray rubber buffers for better grip. The blades are sharp and metallic.
Preview: The image shows a small pair of pliers with precise cutting edges. The handles are black with gray rubber inserts for better grip. It is intended for fine work.
Preview: The image shows a pair of wire cutters. They have gray rubber grips and a metallic tip. The tip is narrow and sharp, ideal for cutting wires and small objects.
Preview: A hand holds a wire cutter pliers gripping a thin copper wire. In the background, a circuit board with various components is visible.
Preview: The image shows a wire cutter pliers. The grip areas are black and gray, while the cutting blades appear shiny and sturdy. A wire is held at the end of the pliers.
Preview: The image shows a pair of pliers with black and gray handles. The pliers are cutting an orange cable bundle. The cutting area is designed to be precise and sharp.
Preview: The image shows a diagonal pliers with a black and gray grip area. The cutting edge is sharp and shiny, ideal for precise cutting of wires or fine materials.
Preview: The image shows a special pair of pliers with pointed, curved blades. The handle is black with gray rubber buffers for better grip. The blades are sharp and metallic.
Diagonal cutting pliers 7871125 ESD
(Product No.: K-7871.125.ESD)
The image shows a small pair of pliers with precise cutting edges. The handles are black with gray rubber inserts for better grip. It is intended for fine work.
The image shows a pair of wire cutters. They have gray rubber grips and a metallic tip. The tip is narrow and sharp, ideal for cutting wires and small objects.
A hand holds a wire cutter pliers gripping a thin copper wire. In the background, a circuit board with various components is visible.

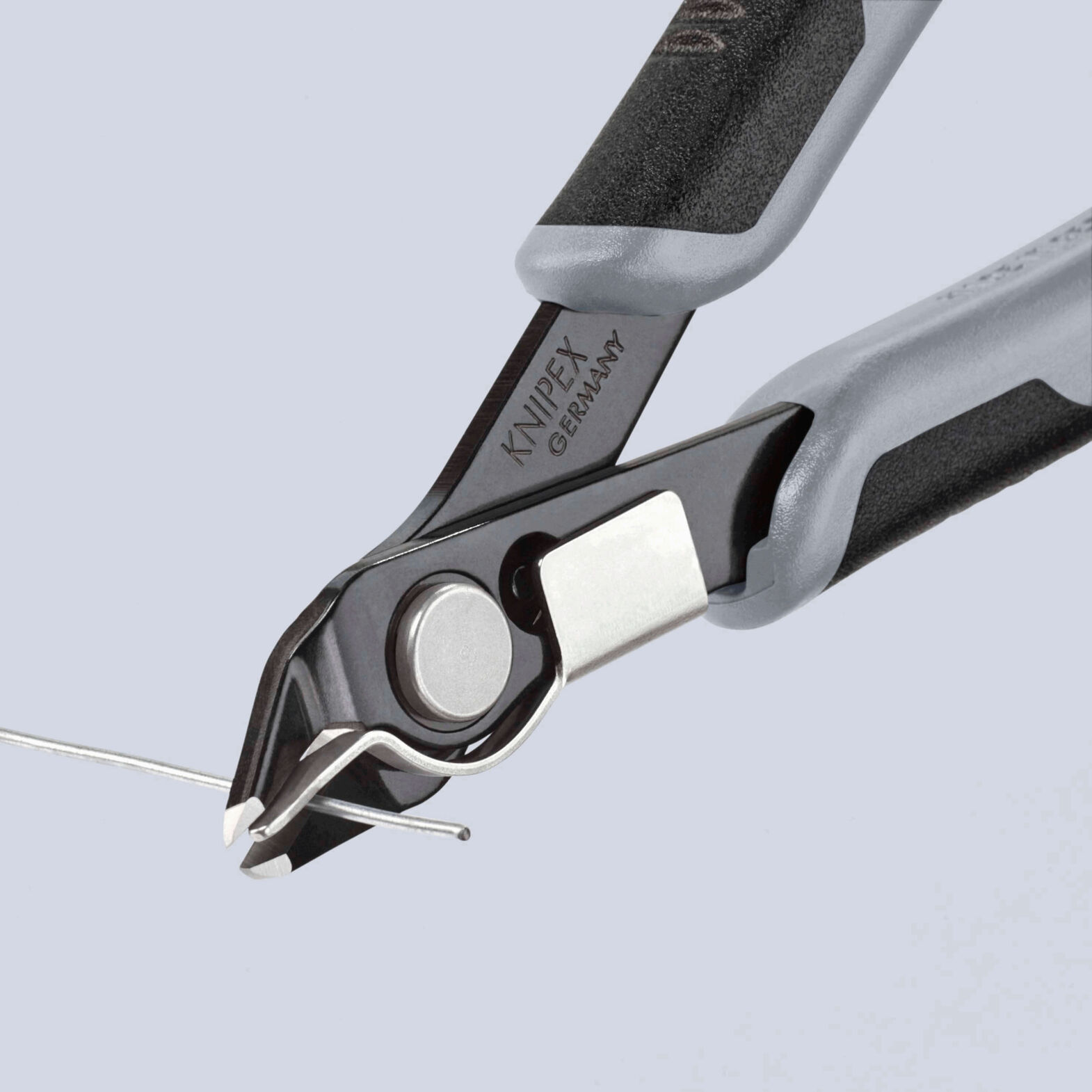

The image shows a wire cutter pliers. The grip areas are black and gray, while the cutting blades appear shiny and sturdy. A wire is held at the end of the pliers.
The image shows a pair of pliers with black and gray handles. The pliers are cutting an orange cable bundle. The cutting area is designed to be precise and sharp.
The image shows a diagonal pliers with a black and gray grip area. The cutting edge is sharp and shiny, ideal for precise cutting of wires or fine materials.
The image shows a special pair of pliers with pointed, curved blades. The handle is black with gray rubber buffers for better grip. The blades are sharp and metallic.
Mobile Preview: The image shows a small pair of pliers with precise cutting edges. The handles are black with gray rubber inserts for better grip. It is intended for fine work.
Mobile Preview: The image shows a pair of wire cutters. They have gray rubber grips and a metallic tip. The tip is narrow and sharp, ideal for cutting wires and small objects.
Mobile Preview: A hand holds a wire cutter pliers gripping a thin copper wire. In the background, a circuit board with various components is visible.
Mobile Preview: The image shows a wire cutter pliers. The grip areas are black and gray, while the cutting blades appear shiny and sturdy. A wire is held at the end of the pliers.
Mobile Preview: The image shows a pair of pliers with black and gray handles. The pliers are cutting an orange cable bundle. The cutting area is designed to be precise and sharp.
Mobile Preview: The image shows a diagonal pliers with a black and gray grip area. The cutting edge is sharp and shiny, ideal for precise cutting of wires or fine materials.
Mobile Preview: The image shows a special pair of pliers with pointed, curved blades. The handle is black with gray rubber buffers for better grip. The blades are sharp and metallic.
Notice

Diagonal cutting pliers 7871125 ESD

Diagonal cutting pliers 7871125 ESD

dpvlink:
8830
Bevel:
without bevel
Head type/size:
small
Max Ø soft:
1,63 mm
Max Ø medium:
1.15 mm
Version:
with wire clamp / with opening spring
Surface:
brilliant
Properties:
Further product information

30.60 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers 7871125 ESD

The KNIPEX 7871125 ESD side cutter is specifically designed for precise cutting tasks in electronics and fine mechanics. With a length of 125 mm and a weight of just 57 g, this tool allows for fatigue-free operation. The cutting edges are made of burnished special tool steel, ground without a bevel and inductively hardened to approximately 62 HRC, ensuring a long lifespan and ultra-precise cuts even of the thinnest wires.
The handles of the side cutter are electrically conductive and provide ESD protection to prevent uncontrolled electrostatic discharges. This complies with the standards IEC TR 61 340-5, DIN EN 61 340-5, and SP Method 2472. The product features an opening spring and a movement limiter, which, along with the frictionless joint spring, ensures smooth operation.
The precisely shaped tips of the side cutter can cut wires from a diameter of 0.2 mm accurately, supported by the controlled micro-cutting edge offset. Additionally, the version with a wire clamp offers safety by preventing the uncontrolled snapping of wire sections.
The compact design with a head width of 13.5 mm and a head thickness of 7.5 mm makes the side cutter ideal for working in hard-to-reach places.
Bevel
Bevel
without bevel
Head type/size
Head type/size
small
Max Ø soft
Max Ø soft
1,63 mm
Max Ø medium
Max Ø medium
1.15 mm
Version
Version
with wire clamp / with opening spring
Surface
Surface
brilliant
AWG medium
AWG medium
17
AWG soft
AWG soft
14
Head thickness
Head thickness
7.5 mm
Height
Height
13 mm
Length
Length
125 mm
Width
Width
61 mm
Material
Material
Tool steel
ESD
ESD
yes
Head shape
Head shape
angled
Head width
Head width
13.5 mm
Jaw length
Jaw length
9 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Weight
Weight
57 g
Common

The Knipex Super-Knips series have precision-ground cutting edges for a clean, planar cutting without bevel, e.g. for the use in electronics and fine mechanics. The very smooth-running joint and the opening spring offer high ease of use.
All versions are electrically dissipative


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 473
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Bevel
Head type/size
Max Ø soft
Max Ø medium
Version
Surface
Price
Compare
K-7803.125.ESD - Diagonal cutting pliers 7803125 ESD
K-7803.125.ESD
Diagonal cutting pliers 7803125 ESD
without bevel
small
1,63 mm
1.02 mm
with opening spring
polished
26.70 CHF
K-7813.125.ESD - Diagonal cutting pliers 7813125 ESD
K-7813.125.ESD
Diagonal cutting pliers 7813125 ESD
without bevel
small
1,63 mm
1.02 mm
with wire clamp / with opening spring
polished
29.10 CHF
K-7861.125.ESD - Diagonal cutting pliers 7861125 ESD
K-7861.125.ESD
Diagonal cutting pliers 7861125 ESD
without bevel
small
1,63 mm
1.15 mm
with opening spring
brilliant
27.55 CHF
K-7871.125.ESD - Diagonal cutting pliers 7871125 ESD
K-7871.125.ESD
Diagonal cutting pliers 7871125 ESD
without bevel
small
1,63 mm
1.15 mm
with wire clamp / with opening spring
brilliant
30.60 CHF
K-7803.140.ESD - Diagonal cutting pliers 7803140 ESD
K-7803.140.ESD
Diagonal cutting pliers 7803140 ESD
without bevel
regular
2.05 mm
1.15 mm
with opening spring
polished
32.30 CHF
K-7861.140.ESD - Diagonal cutting pliers 7861140 ESD
K-7861.140.ESD
Diagonal cutting pliers 7861140 ESD
without bevel
regular
2.05 mm
1.45 mm
with opening spring
brilliant
32.90 CHF
