Diagonal cutting pliers 7902120 ESD
Diagonal cutting pliers 7902120 ESD

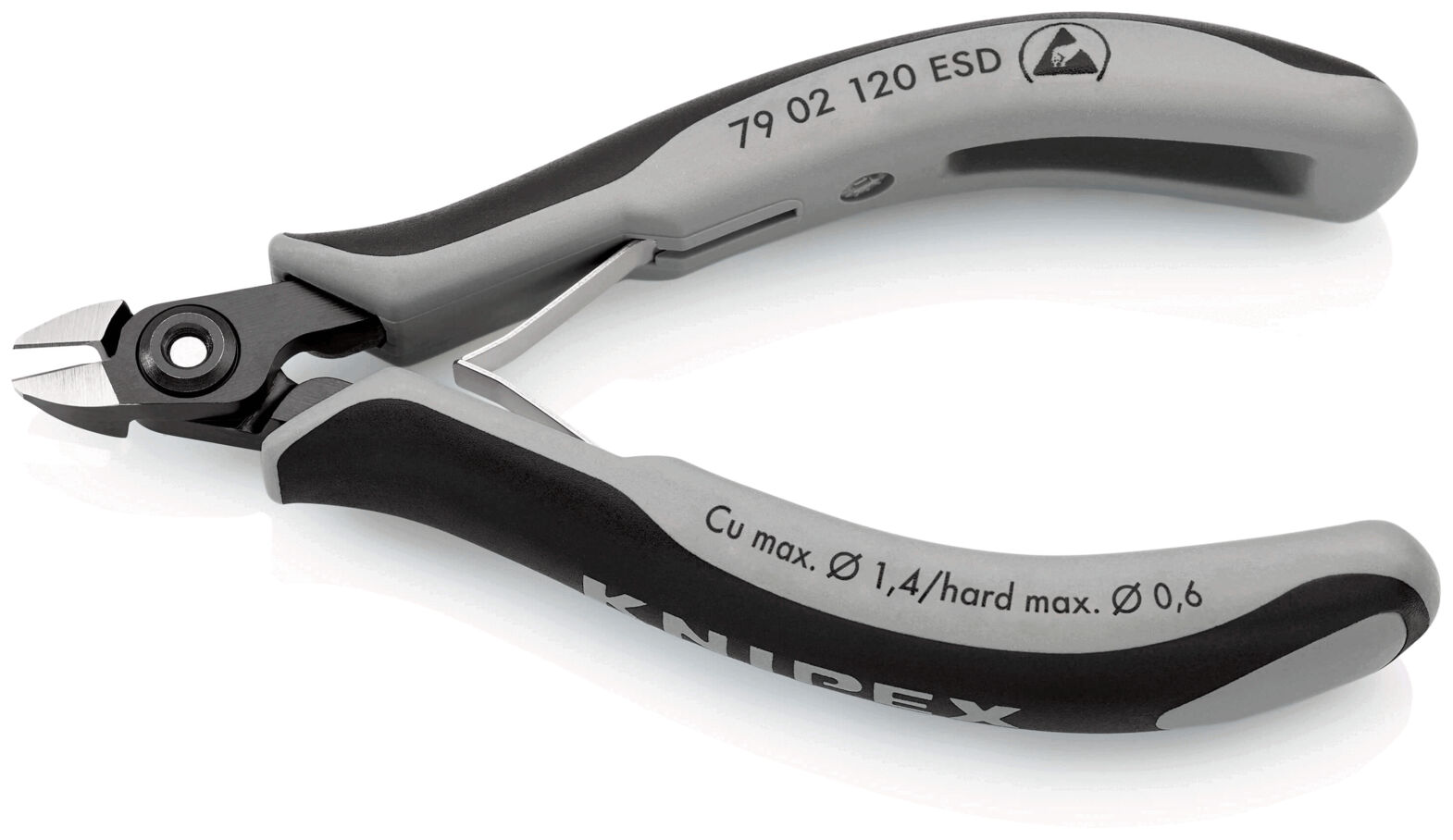

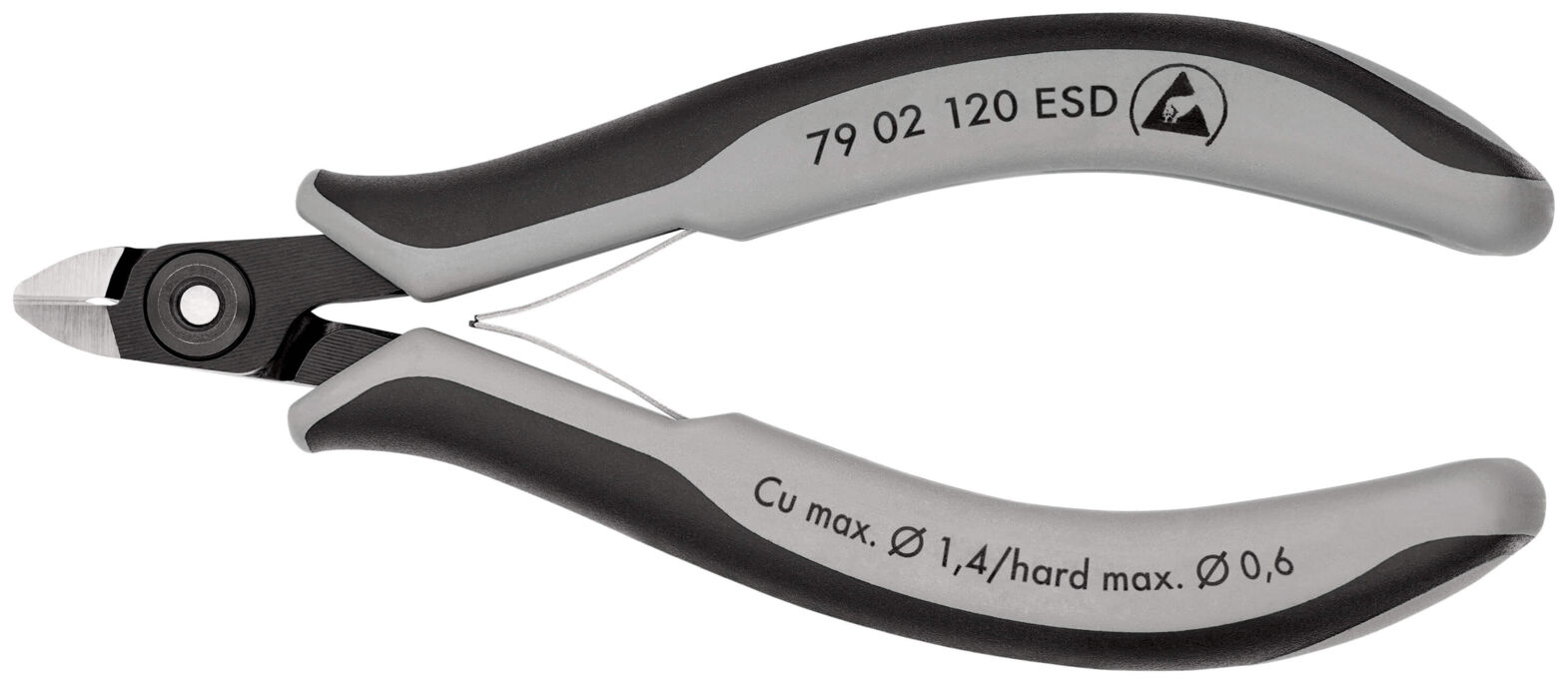

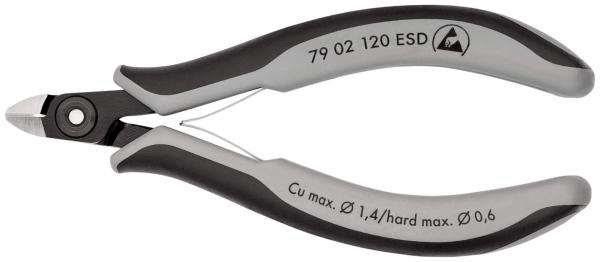

The KNIPEX 7902120 ESD diagonal cutter is a highly precise tool specifically designed for the finest cutting tasks in electronics and precision mechanics. This model is characterized by its electrically dissipative handles, which are conductive and thus ensure safe handling of sensitive components. The blades of the diagonal cutter are very precisely ground and sharp, with small facets for exact cuts, as well as an option for flush cutting without a facet.The blades are additionally induction-hardened and achieve a hardness of approximately 64 HRC, which guarantees a long service life and lasting sharpness. Weighing only 57 g, this tool is about 20% lighter than conventional electronic pliers. The construction includes a screwed joint that ensures smooth and low-friction movement, as well as an easy-to-operate double spring that allows for gentle opening. The ergonomically optimized multi-component sleeves offer additional comfort.
The technical specifications include a length of 120 mm, a height of 20 mm, and a width of 69 mm. The diagonal cutter can cut materials up to a diameter of 1.45 mm (soft), 1.02 mm (medium), and 0.6 mm (hard). The tool is ESD-safe and made of polished or burnished steel, which ensures a robust and durable surface.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- extra small
- Head shape Head shape
- round nose
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0,64 mm
- Version Version
- with opening spring
- AWG hard AWG hard
- 22
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 15
- Head thickness Head thickness
- 6.5 mm
- Height [mm] Height
- 20 mm
- Length Length
- 120 mm
- Width [mm] Width
- 69 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 9 mm
- Jaw length Jaw length
- 6.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 57 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
