Diagonal cutting pliers 7922125 ESD
Diagonal cutting pliers 7922125 ESD

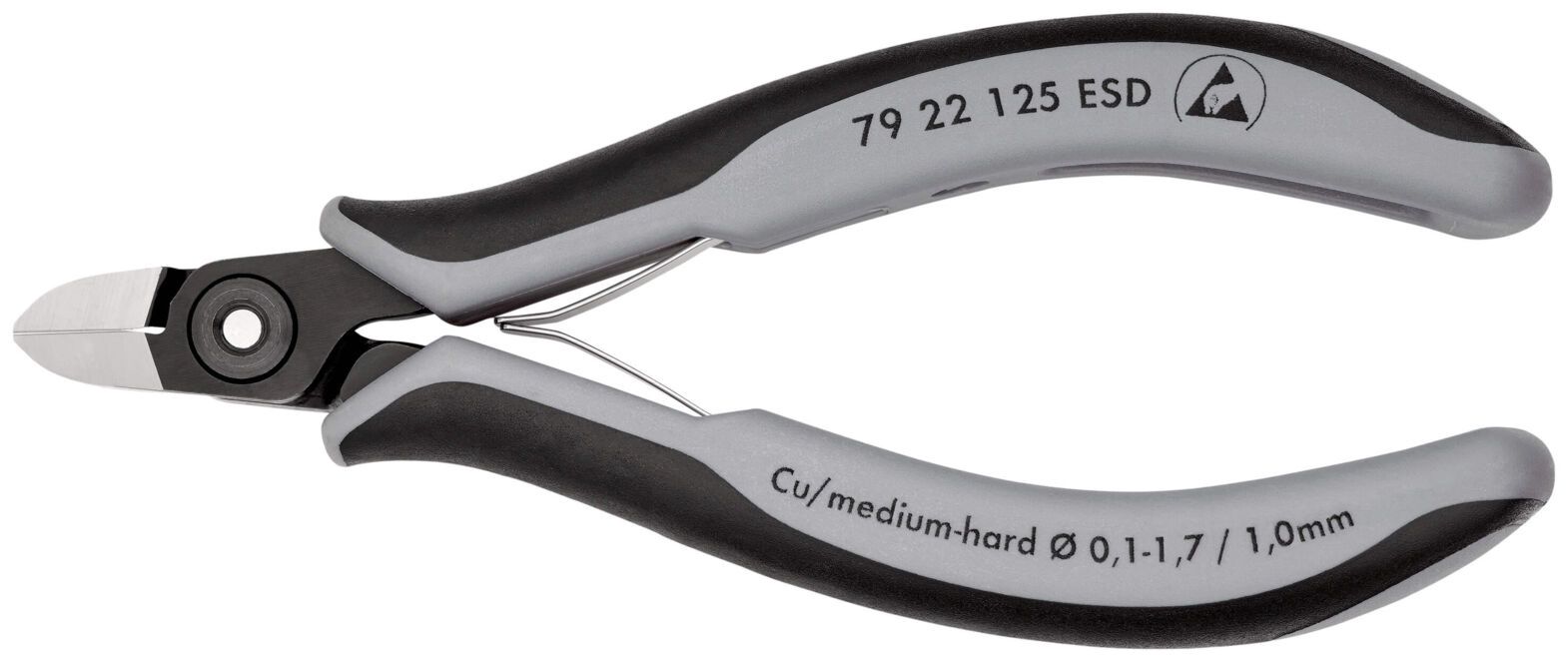

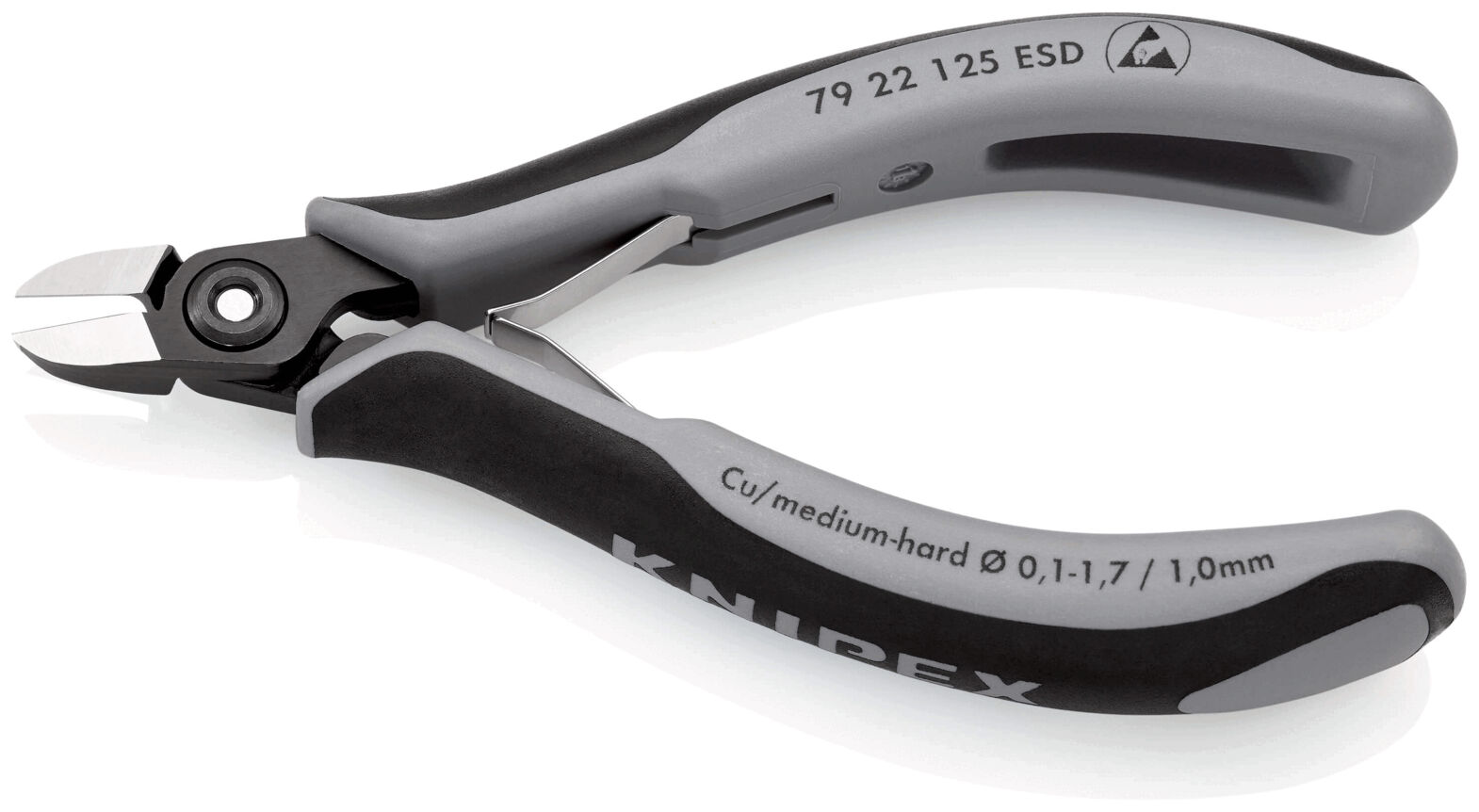

The KNIPEX 7922125 ESD side cutter is a high-precision plier specifically developed for the finest cutting tasks in electronics and precision mechanics. Its handles are electrically conductive and dissipative, making it ideal for handling sensitive electronic components.The cutting edges are very precisely ground and sharp, with very small facets for exact cuts, as well as an option for flush cutting without a facet. These precision cutting edges are additionally inductively hardened, giving them a hardness of approximately 64 HRC.
The tool impresses with its lightweight, which is about 20% less than conventional electronic pliers, and a screwed joint that ensures smooth and low-friction movement. An easy-to-operate double spring supports gentle and uniform opening. Ergonomically optimized multi-component grips and a round head increase working comfort.
Technical specifications include a length of 125 mm, a width of 61 mm, and a height of 18 mm. The side cutter weighs 61 g, is made of polished and burnished steel, and features a head thickness of 6.5 mm and a jaw length of 10 mm. It is suitable for soft materials up to a diameter of 1.7 mm and medium-hard materials up to 1.02 mm.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Head shape Head shape
- round nose
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Version Version
- with opening spring
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 14
- Head thickness Head thickness
- 6.5 mm
- Height [mm] Height
- 18 mm
- Length Length
- 125 mm
- Width [mm] Width
- 61 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 10 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 61 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Version
Price
Compare
mini bevel
extra small
round nose
1.45 mm
1.02 mm
0,64 mm
with opening spring
mini bevel
small
round nose
1,63 mm
1.29 mm
0.72 mm
with opening spring
without bevel
extra small
round nose
1.29 mm
0.81 mm
with opening spring
without bevel
small
round nose
1,63 mm
1.02 mm
with opening spring
mini bevel
small
snipe nose
1.45 mm
1.15 mm
0,64 mm
with opening spring
without bevel
small
snipe nose
1.45 mm
0.81 mm
with opening spring
without bevel (flush cut)
small
snipe nose
1.45 mm
0.81 mm
with opening spring
mini bevel
small
snipe nose
1.29 mm
0.91 mm
0.51 mm
with opening spring / with wire clamp
without bevel
small
snipe nose
1.29 mm
0.81 mm
with opening spring / with wire clamp
