Diagonal cutting pliers 7942125 ESD
Diagonal cutting pliers 7942125 ESD

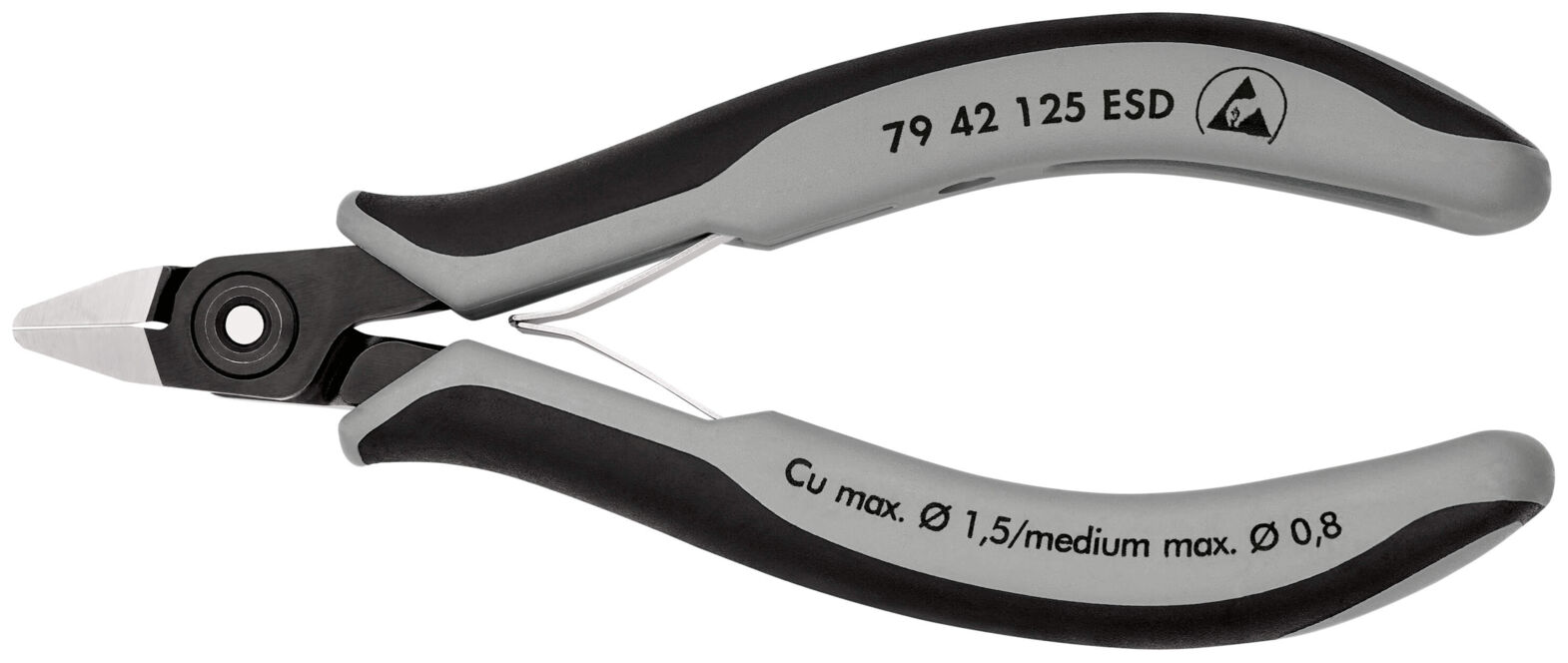

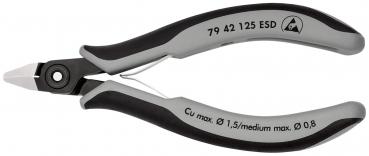

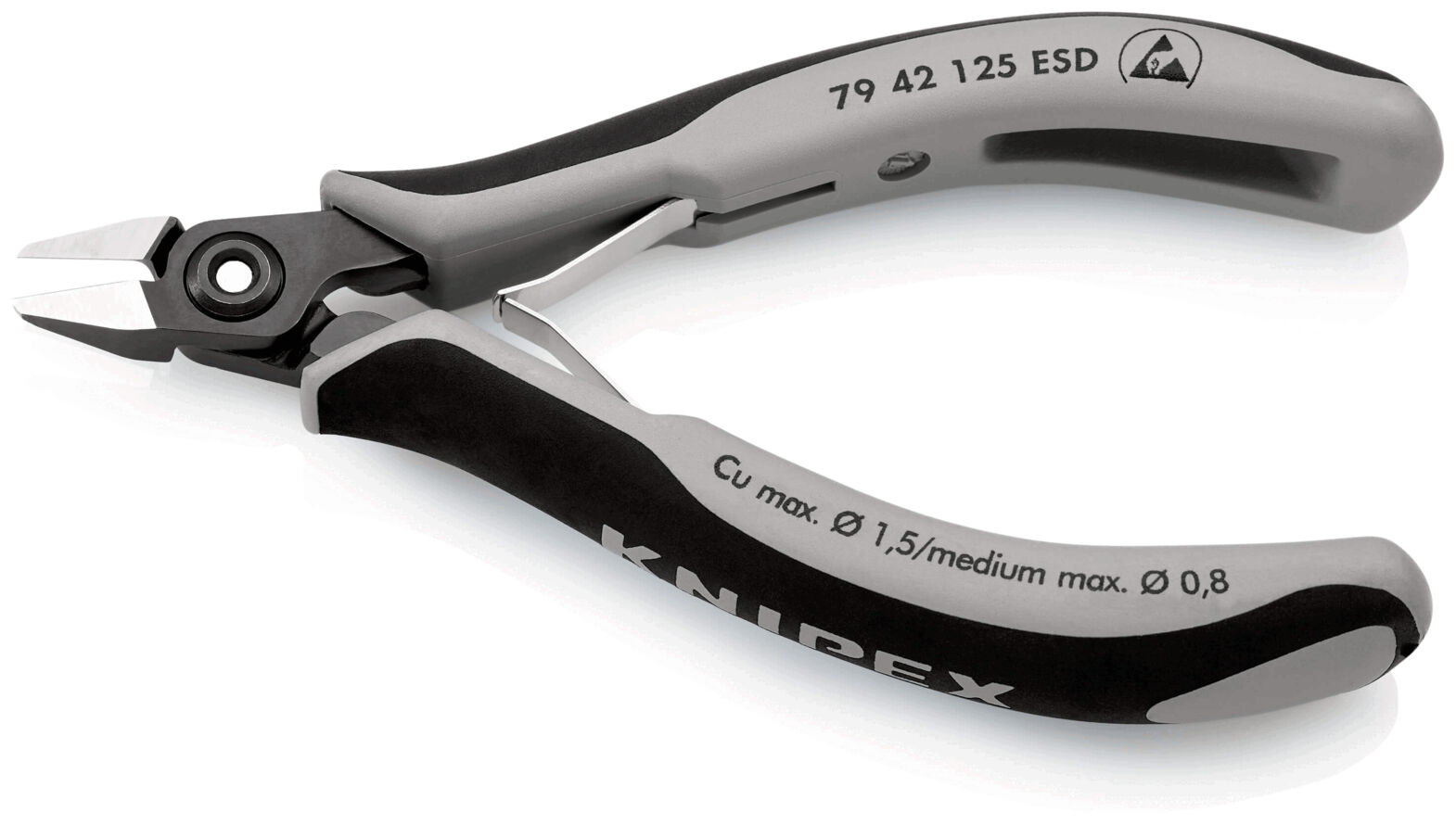

The KNIPEX 7942125 ESD side cutter is a highly precise plier specifically designed for the finest cutting tasks in electronics and precision mechanics. This tool is characterized by electrically conductive, dissipative handles that ensure safe work on sensitive electronic components. The cutting edges are very precisely ground and sharp, with very small facets for exact cuts, as well as an option for flush cutting without a facet.The cutting edges of the side cutter are additionally induction-hardened and achieve a hardness of approximately 64 HRC, which ensures long-lasting sharpness. Despite its robustness, the weight of the tool is about 20% less than that of conventional electronic pliers. A screwed joint with carefully manufactured joint surfaces allows for low-friction movement across the entire opening range. A smooth double spring supports gentle and even opening.
Ergonomically optimized multi-component sleeves and a pointed head further increase working comfort. The technical specifications include a length of 125 mm, a head width and a jaw length of 11 mm each, and a head thickness of 6.5 mm. The weight is 58 g. The material of the side cutter is steel, the surface is polished and burnished, which promises additional durability.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Head shape Head shape
- snipe nose
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 0.81 mm
- Version Version
- with opening spring
- AWG medium AWG medium
- 20
- AWG soft AWG soft
- 15
- Head thickness Head thickness
- 6.5 mm
- Height [mm] Height
- 16 mm
- Length Length
- 125 mm
- Width [mm] Width
- 61 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 11 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 58 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Version
Price
Compare
mini bevel
extra small
round nose
1.45 mm
1.02 mm
0,64 mm
with opening spring
mini bevel
small
round nose
1,63 mm
1.29 mm
0.72 mm
with opening spring
without bevel
extra small
round nose
1.29 mm
0.81 mm
with opening spring
without bevel
small
round nose
1,63 mm
1.02 mm
with opening spring
mini bevel
small
snipe nose
1.45 mm
1.15 mm
0,64 mm
with opening spring
without bevel
small
snipe nose
1.45 mm
0.81 mm
with opening spring
without bevel (flush cut)
small
snipe nose
1.45 mm
0.81 mm
with opening spring
mini bevel
small
snipe nose
1.29 mm
0.91 mm
0.51 mm
with opening spring / with wire clamp
without bevel
small
snipe nose
1.29 mm
0.81 mm
with opening spring / with wire clamp
