Diagonal cutting pliers 7942125Z ESD
Diagonal cutting pliers 7942125Z ESD

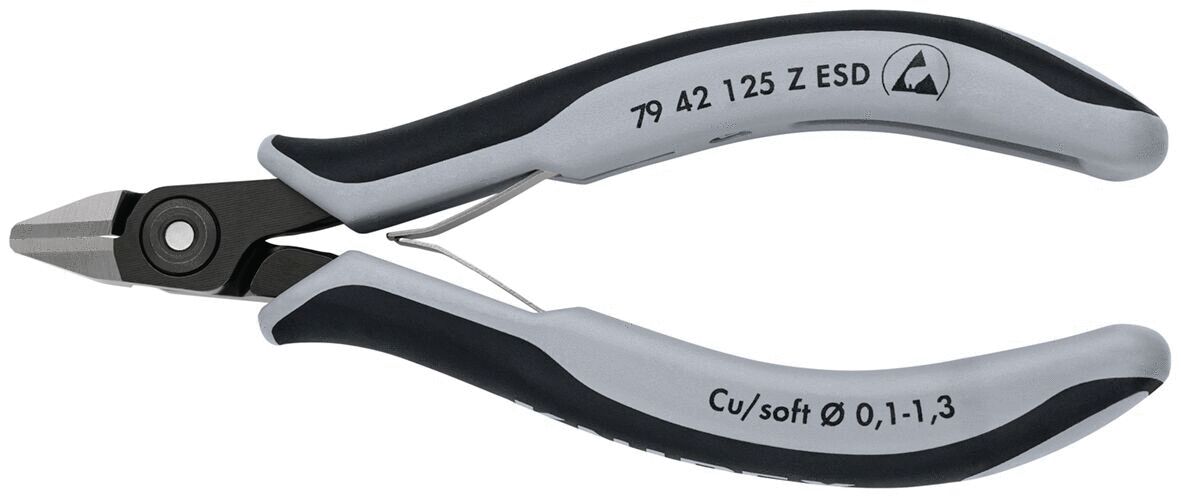

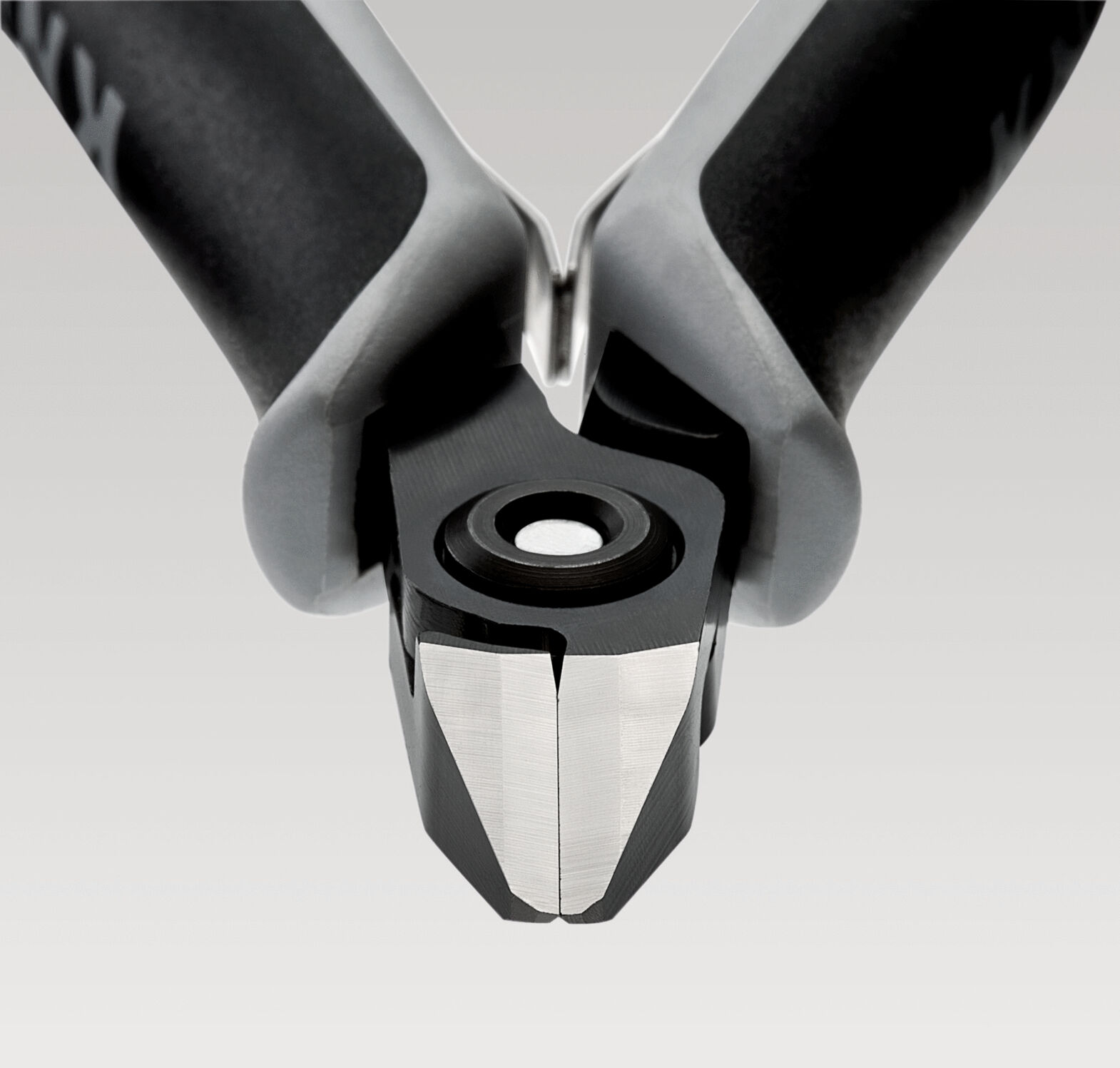

The KNIPEX 7942125 Z ESD side cutter is specifically designed for precise cutting tasks in electronics and fine mechanics. This high-quality tool features electrically conductive handles that are dissipative, thus providing safety when working with sensitive electronic components. The cutting edges are very precisely ground and sharp, with small facets for exact cuts or without a facet for flush cutting.The cutting edges of this side cutter are additionally induction-hardened and achieve a hardness of approximately 64 HRC, which guarantees a long service life and sustained sharpness. Despite its robustness, the tool weighs about 20% less than conventional electronic pliers, which facilitates handling. The screwed joint and the smooth double spring ensure even and low-friction movement.
The ergonomically optimized multi-component sleeves offer additional comfort and control. With a length of 125 mm and a weight of only 58 g, this side cutter is ideal for working in places with tight tolerances. The head shape is pointed, and the surface of the steel-made tool is both polished and burnished, contributing to its durability and efficiency.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- small
- Head shape Head shape
- snipe nose
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 0.81 mm
- Version Version
- with opening spring
- AWG medium AWG medium
- 20
- AWG soft AWG soft
- 15
- Head thickness Head thickness
- 6.5 mm
- Height [mm] Height
- 19 mm
- Length Length
- 125 mm
- Width [mm] Width
- 61 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 11 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 58 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel flush cut
Flush cut. Only suitable for soft materials (copper and plastic).
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Version
Price
Compare
mini bevel
extra small
round nose
1.45 mm
1.02 mm
0,64 mm
with opening spring
mini bevel
small
round nose
1,63 mm
1.29 mm
0.72 mm
with opening spring
without bevel
extra small
round nose
1.29 mm
0.81 mm
with opening spring
without bevel
small
round nose
1,63 mm
1.02 mm
with opening spring
mini bevel
small
snipe nose
1.45 mm
1.15 mm
0,64 mm
with opening spring
without bevel
small
snipe nose
1.45 mm
0.81 mm
with opening spring
without bevel (flush cut)
small
snipe nose
1.45 mm
0.81 mm
with opening spring
mini bevel
small
snipe nose
1.29 mm
0.91 mm
0.51 mm
with opening spring / with wire clamp
without bevel
small
snipe nose
1.29 mm
0.81 mm
with opening spring / with wire clamp
