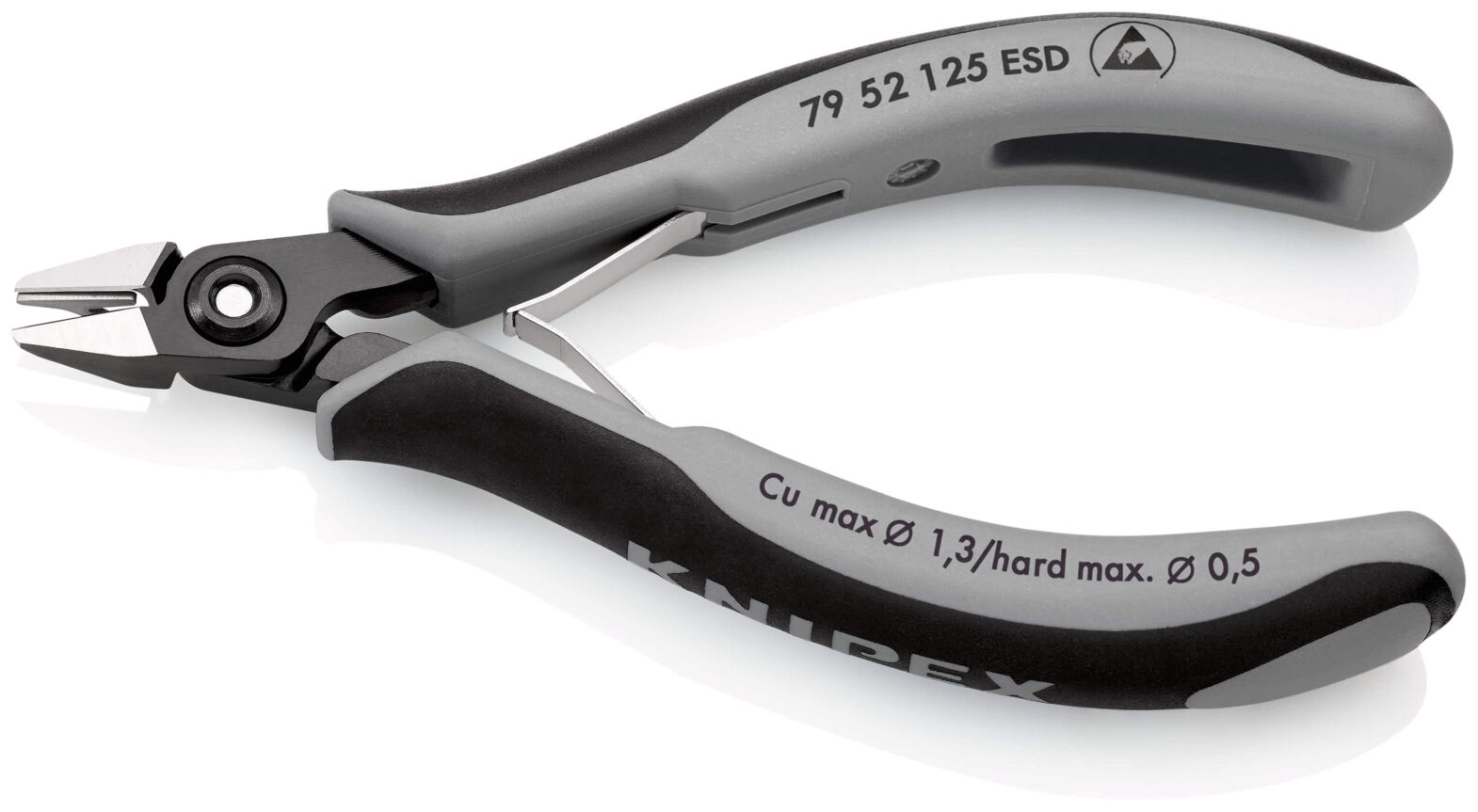

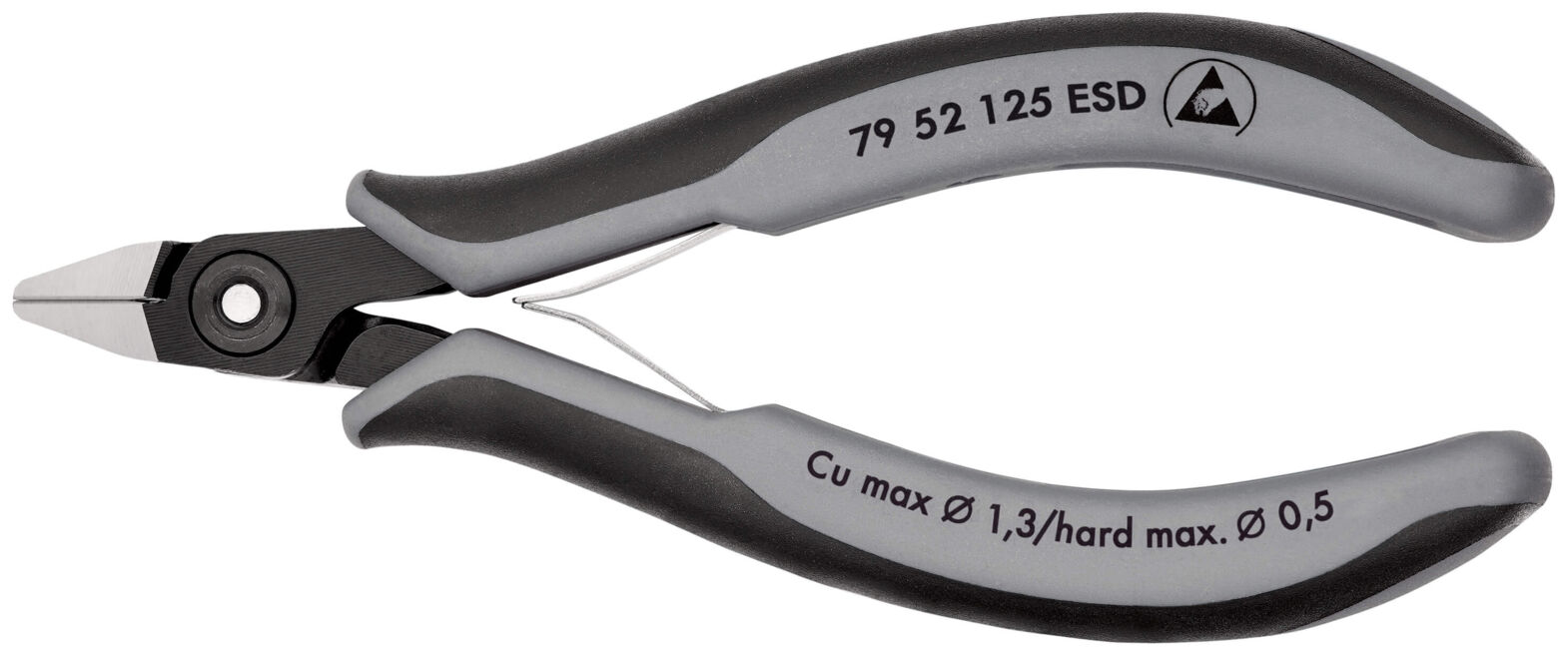

Diagonal cutting pliers 7952125 ESD
Diagonal cutting pliers 7952125 ESD

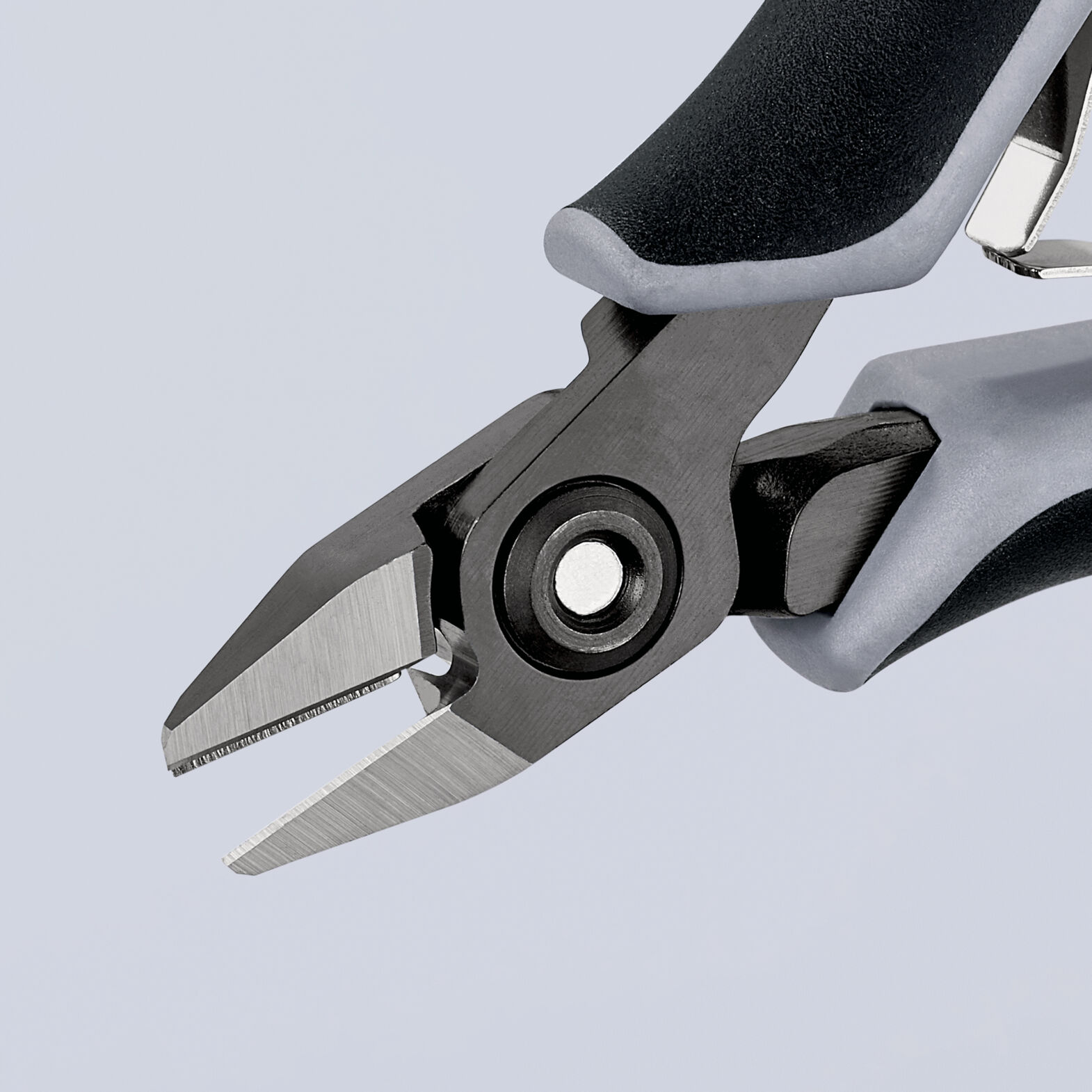

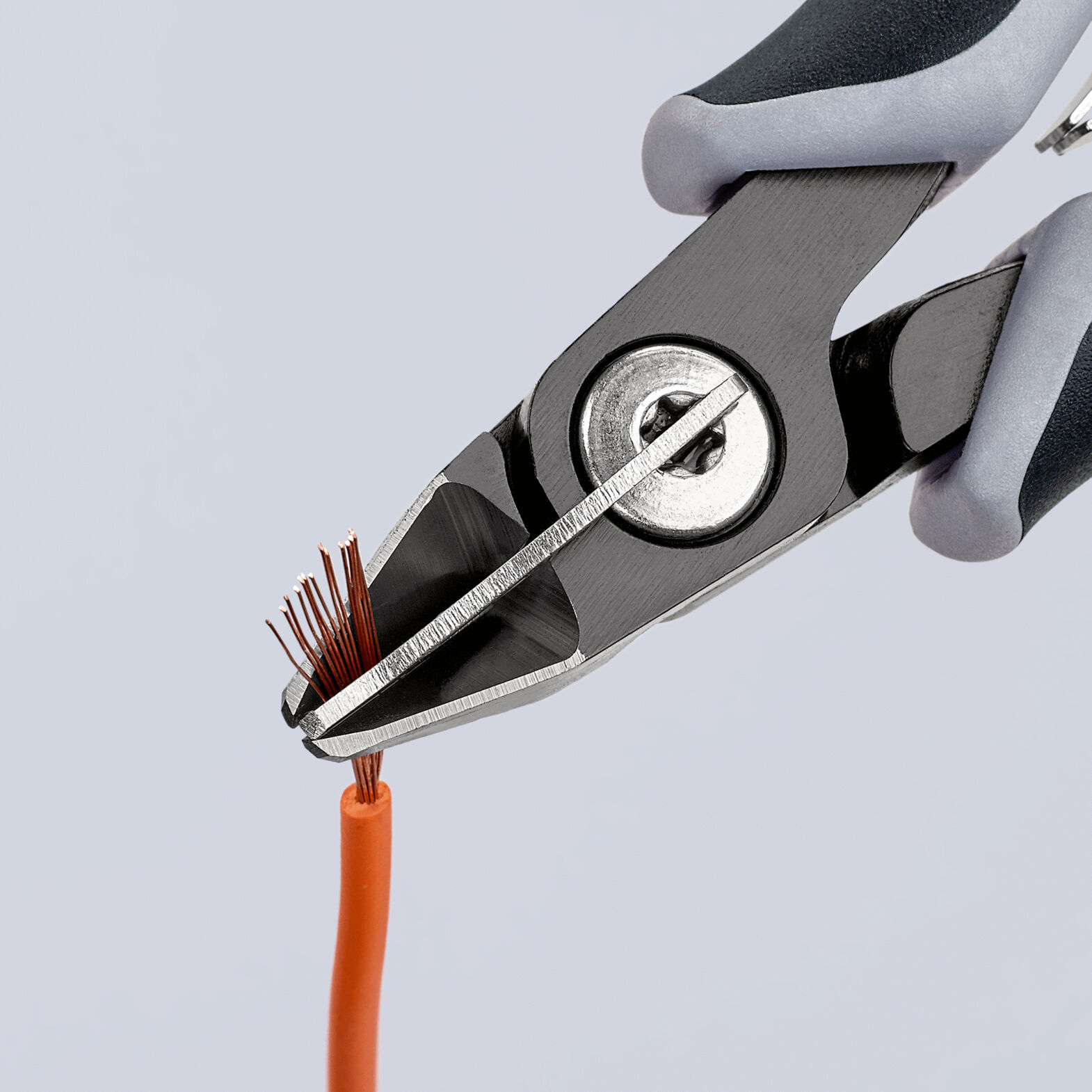

The KNIPEX 7952125 ESD side cutter is a high-precision plier, specifically designed for the finest cutting tasks in electronics and precision mechanics. This tool features electrically conductive, dissipative handles and a pointed head that allows for precise cuts without uncontrolled jumping of the wire sections, thanks to an integrated wire clamp.The cutting edges of the side cutter are very precisely ground and have small facets as well as inductive hardening, achieving a cutting hardness of about 64 HRC. This allows for precise cuts on sensitive components and offers the option for flush cutting without a facet. Despite its robustness, the side cutter weighs about 20% less than conventional electronic pliers.
The technical specifications include a mini-bevel, a length of 125 mm, a head width and thickness of 11 mm and 6.5 mm respectively, and a weight of only 58 g. The material consists of polished, burnished steel, which ensures durable and reliable use. Ergonomically optimized multi-component casings and an easy-to-move double spring facilitate handling and ensure smooth opening of the pliers.
This makes the 7952125 ESD side cutter an indispensable tool for professional electronics and precision mechanics work.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- small
- Head shape Head shape
- snipe nose
- Max Ø soft Max Ø soft
- 1.29 mm
- Max Ø medium Max Ø medium
- 0.91 mm
- Max Ø hard Max Ø hard
- 0.51 mm
- Version Version
- with opening spring / with wire clamp
- AWG hard AWG hard
- 24
- AWG medium AWG medium
- 19
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 6.5 mm
- Height [mm] Height
- 19 mm
- Length Length
- 125 mm
- Width [mm] Width
- 49 mm
- Material Material
- steel
- Surface Surface
- polished / brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 11 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 58 g
The Knipex "Profi" series for highest requirements concerning efficiency and performance. The precision cutting pliers have precision-ground, sharp cutting edges for the use e.g. in electronics and fine mechanics, with a small bevel or without bevel for precise cuts on sensitive electronic components. A low-friction double spring ensures a smooth and even opening. Forged of high-quality chrome-vanadium ball bearing steel with glare-free finish and low weight.
All versions are electrically dissipative
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Bevel
Head type/size
Head shape
Max Ø soft
Max Ø medium
Max Ø hard
Version
Price
Compare
mini bevel
extra small
round nose
1.45 mm
1.02 mm
0,64 mm
with opening spring
mini bevel
small
round nose
1,63 mm
1.29 mm
0.72 mm
with opening spring
without bevel
extra small
round nose
1.29 mm
0.81 mm
with opening spring
without bevel
small
round nose
1,63 mm
1.02 mm
with opening spring
mini bevel
small
snipe nose
1.45 mm
1.15 mm
0,64 mm
with opening spring
without bevel
small
snipe nose
1.45 mm
0.81 mm
with opening spring
without bevel (flush cut)
small
snipe nose
1.45 mm
0.81 mm
with opening spring
mini bevel
small
snipe nose
1.29 mm
0.91 mm
0.51 mm
with opening spring / with wire clamp
without bevel
small
snipe nose
1.29 mm
0.81 mm
with opening spring / with wire clamp
