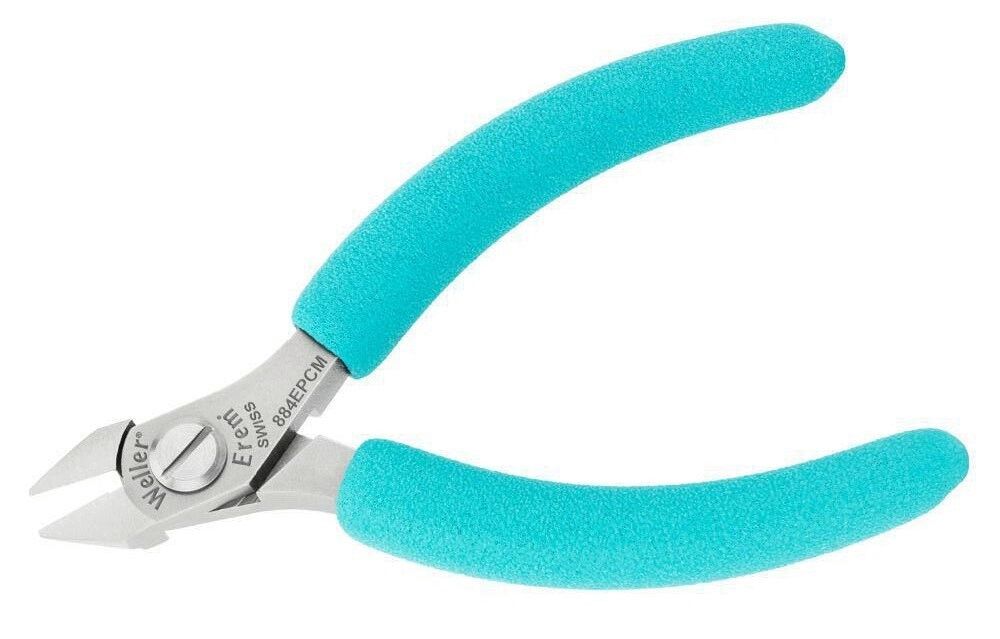

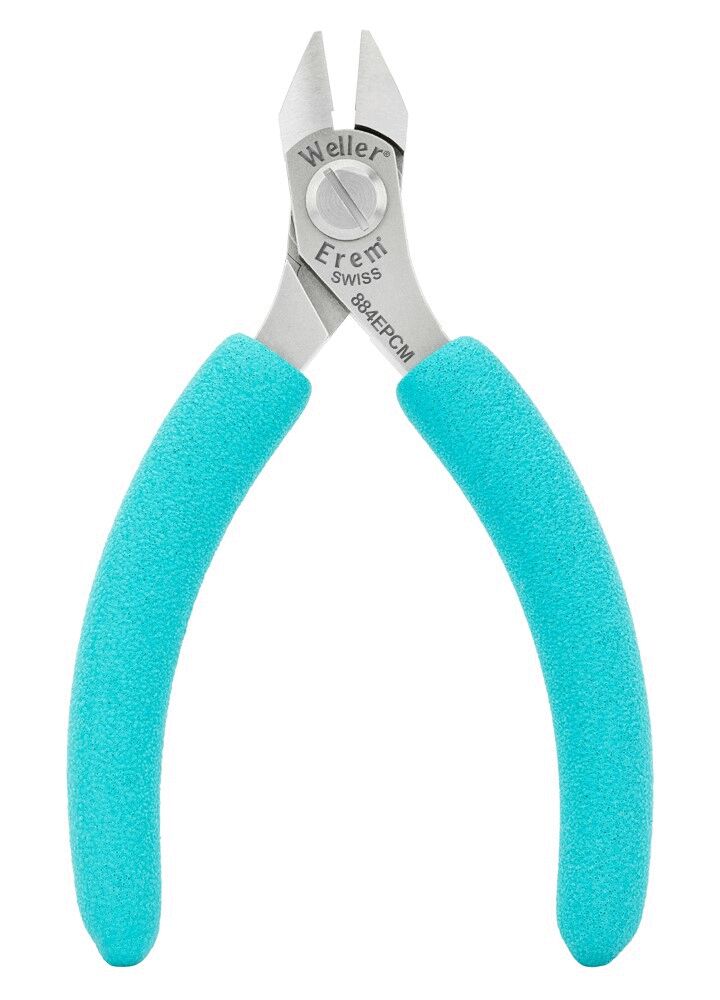

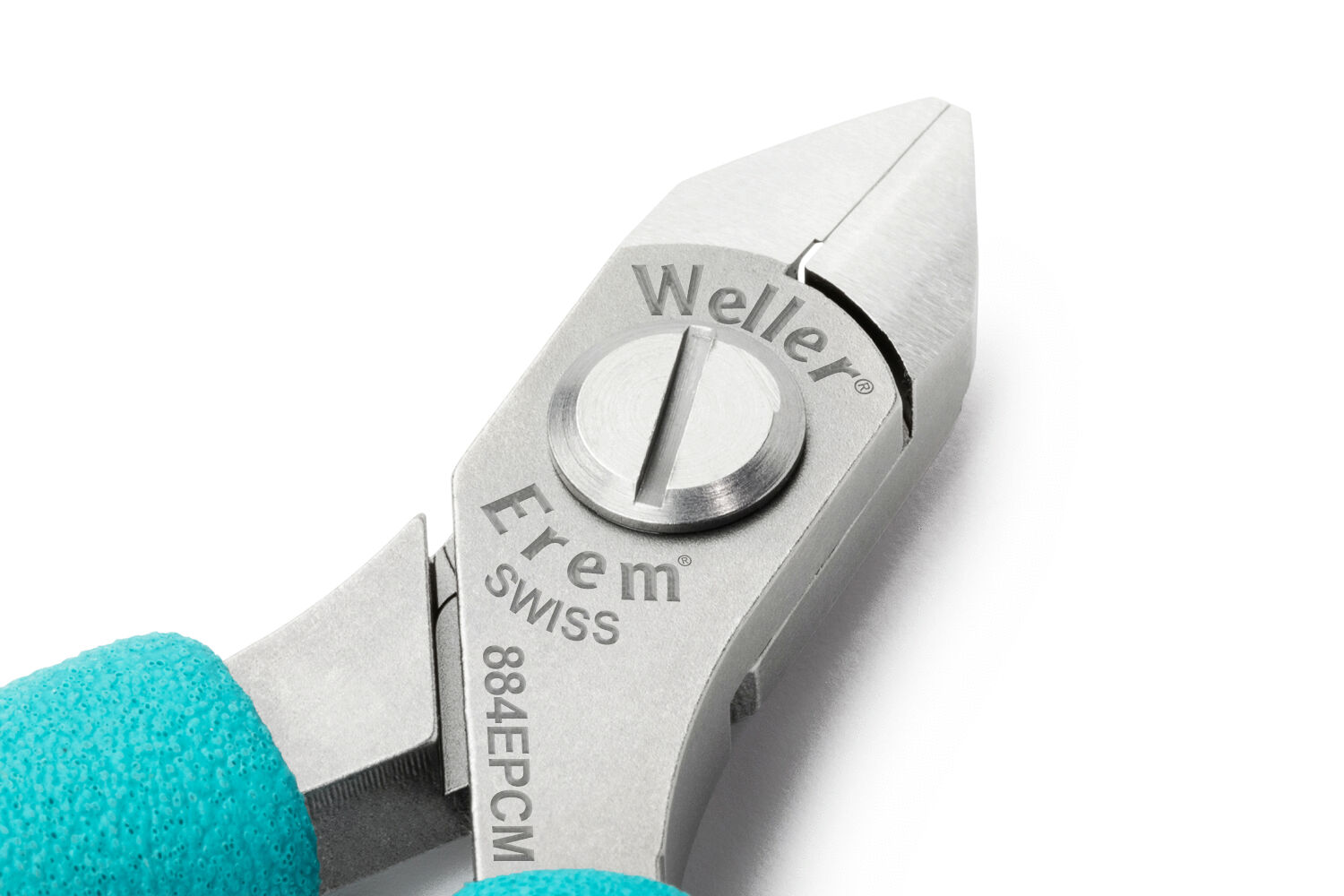

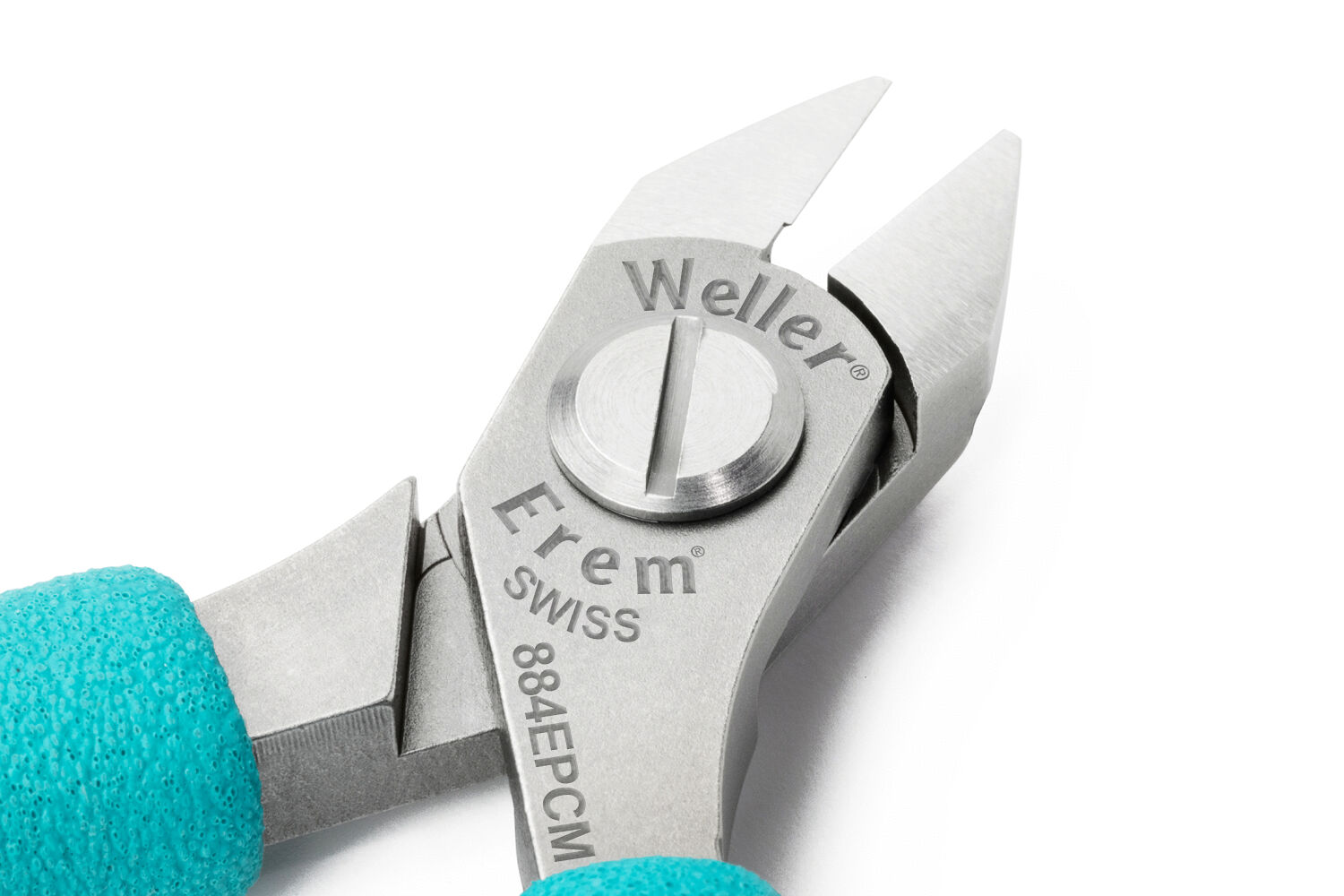

Diagonal cutting pliers 884EPCM
(Product No.: 884EPCM)
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Mobile Preview: Image
Notice

Diagonal cutting pliers 884EPCM

dpvlink:
2536
Bevel:
small bevel
Properties:
Further product information

130.71 CHF

1 PCE
Compare Compare
Notice
Product Info
The Weller Erem 884EPCM side cutter from the 800 Maxi series is specifically designed for cutting large wire diameters in electronics. This high-quality tool is made from robust tool steel and features cutting edges that are hardened to a hardness of 63-65 HRc to ensure durability and precise cuts. The surface of the cutter is non-reflective and ESD-safe, making it ideal for use in sensitive electronic environments. Additionally, the cutter is re-sharpenable, significantly extending its service life.
The total length of the side cutter is 115 mm with a blade length of 7 mm and a jaw length of 12 mm. The small chamfer on the blade allows for a normal cut and is universally applicable to hard and soft steel wires as well as other soft materials like copper wire and cables. The innovative, patented opening system integrates the springs invisibly, thus ensuring safety and interchangeability without the risk of injury. The double self-locking screw joint and the Stop! limit system prevent the blades from crossing and minimize wear. An optional wire holder is available, which reduces the risk of eye injuries and damage to assemblies from severed cutting debris.
This side cutter combines precision and safety for professional applications in electronics manufacturing and is a reliable choice for technical professionals.
Bevel
Bevel
small bevel
Blade length
Blade length
7
Length [mm]
Length [mm]
115
Material
Material
Tool steel
ESD
ESD
yes
Jaw length
Jaw length
12 mm
Type of pliers
Type of pliers
Diagonal cutting pliers
Common


High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.



Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.



Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.



Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.



Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.



The cutting shapes and cutting performance:



With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.



With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.



Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.



Without bevel flush (facet)
Flush cut for soft materials.


Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 487
Complete Catalog 2023 - 2024
