Diagonal cutting pliers Micro 612N

(Product No.: 612N)

(Product No.: 612N)

Diagonal cutting pliers Micro 612N

Name: Diagonal cutting pliers Micro 612N
SKU: 612N
Price: 72.51 CHF
Availability: InStock

ArticleNo: 612N

dpvlink:

2397

Type of pliers:

Diagonal cutting pliers

Bevel:

small bevel

Length [mm]:

110

A [mm]:

9.0

Max Cu:

1.3 mm

Properties:

Further product information

72.51 CHF
72.51 CHF per PCE

PCE:

Compare

Notice

Product Info

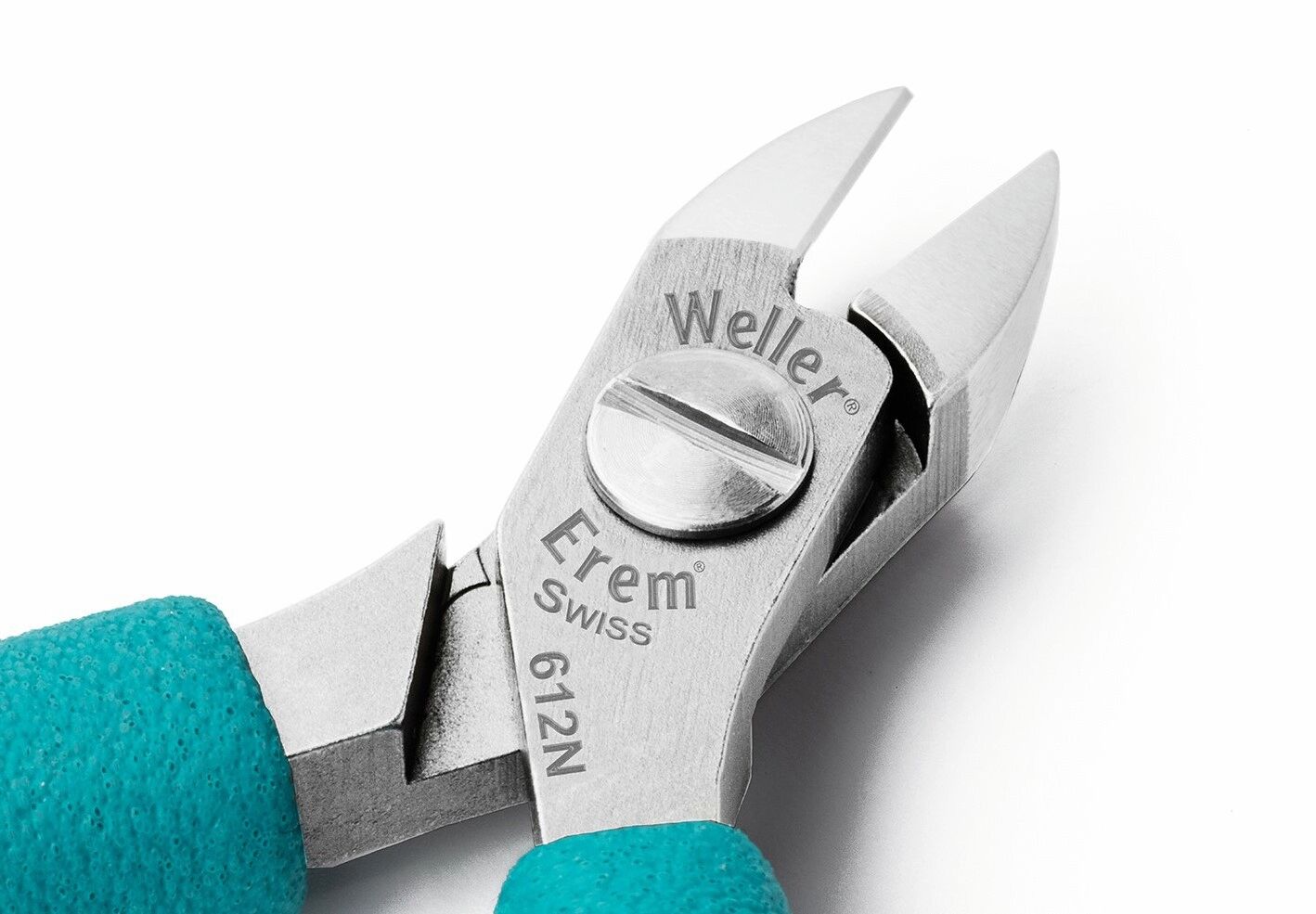

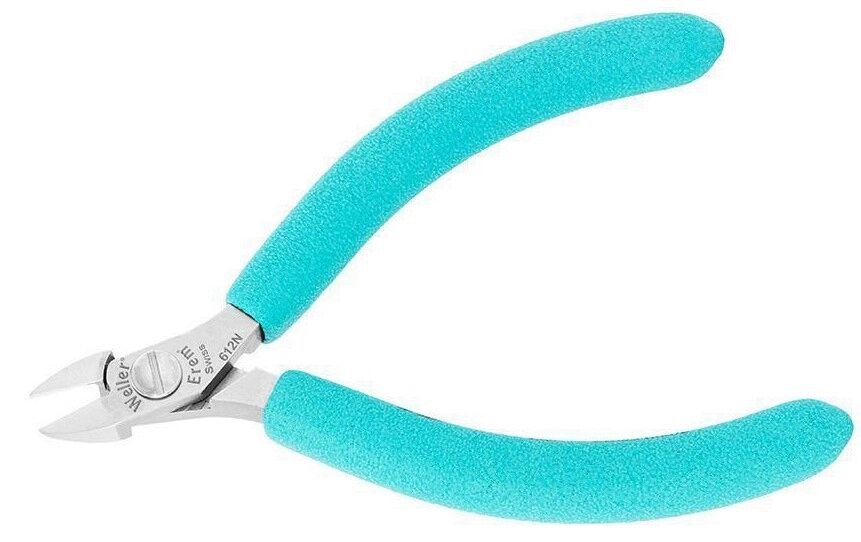

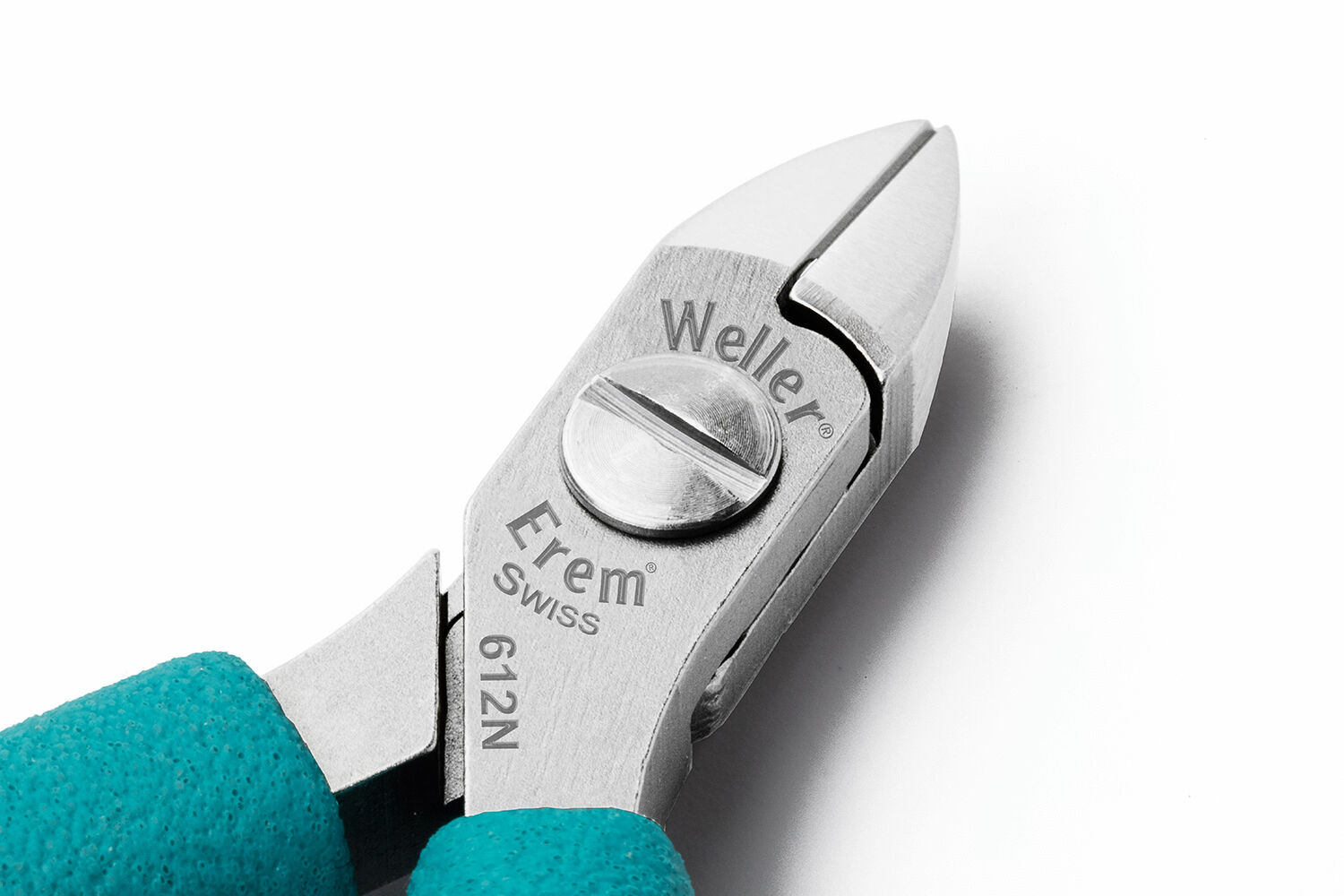

Micro Cutter 612N The Weller Erem Series 600 Micro Cutters are designed for precision work in microelectronics, especially for hard-to-reach areas. These tools are made from high-quality tool steel, with cutting edges hardened to over 60 HRc, and feature a non-reflective surface. They are ESD-safe with a transition resistance of 10^5 to 10^9 Ohm according to MIL standard and offer the possibility for resharpening. The cutters feature a double self-locking screw joint that minimizes wear, and a patented opening system that integrates the springs invisibly, thus eliminating injury risks. An additional 'Stop! Stop system' prevents the crossing of the blades. Optionally, a wire holder is available that prevents eye injuries and damage to assemblies by uncontrolled detached cutting waste. Technical specifications: - Plier type: Side cutter - Edge: small bevel - Length: 110 mm - A: 9.0 mm - Max Cu: 1.3 mm - B: 9.0 mm - C: 6.0 mm - D: 17.0 mm

Details

Type of pliers Type of pliers: Diagonal cutting pliers
Bevel Bevel: small bevel
Length [mm] Length [mm]: 110
A [mm] A [mm]: 9.0
Max Cu Max Cu: 1.3 mm
B [mm] B [mm]: 9.0
C [mm] C [mm]: 6.0
D [mm] D [mm]: 17.0

Common

High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.

Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.

Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.

Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.

Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.

The cutting shapes and cutting performance:

With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.

With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.

Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.

Without bevel flush (facet)
Flush cut for soft materials.

Pictograms

Small bevel

Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.

Documents

Downloads

Please log in to download datasheets! :: There are several datasheets for this product. Please log in!

Catalogues

Page: 483

Complete Catalog 2023 - 2024

Product Family

Article image	Article description	Type of pliers	Bevel	Length [mm]	A [mm]	Max Cu	Price
	632N Diagonal cutting pliers Micro 632N	Diagonal cutting pliers	flush cut	110	10.0	1.3 mm	75.61 CHF
	622N Diagonal cutting pliers Micro 622N	Diagonal cutting pliers	large bevel	110	9.0	1.3 mm	69.45 CHF
	612N Diagonal cutting pliers Micro 612N	Diagonal cutting pliers	small bevel	110	9.0	1.3 mm	72.51 CHF
