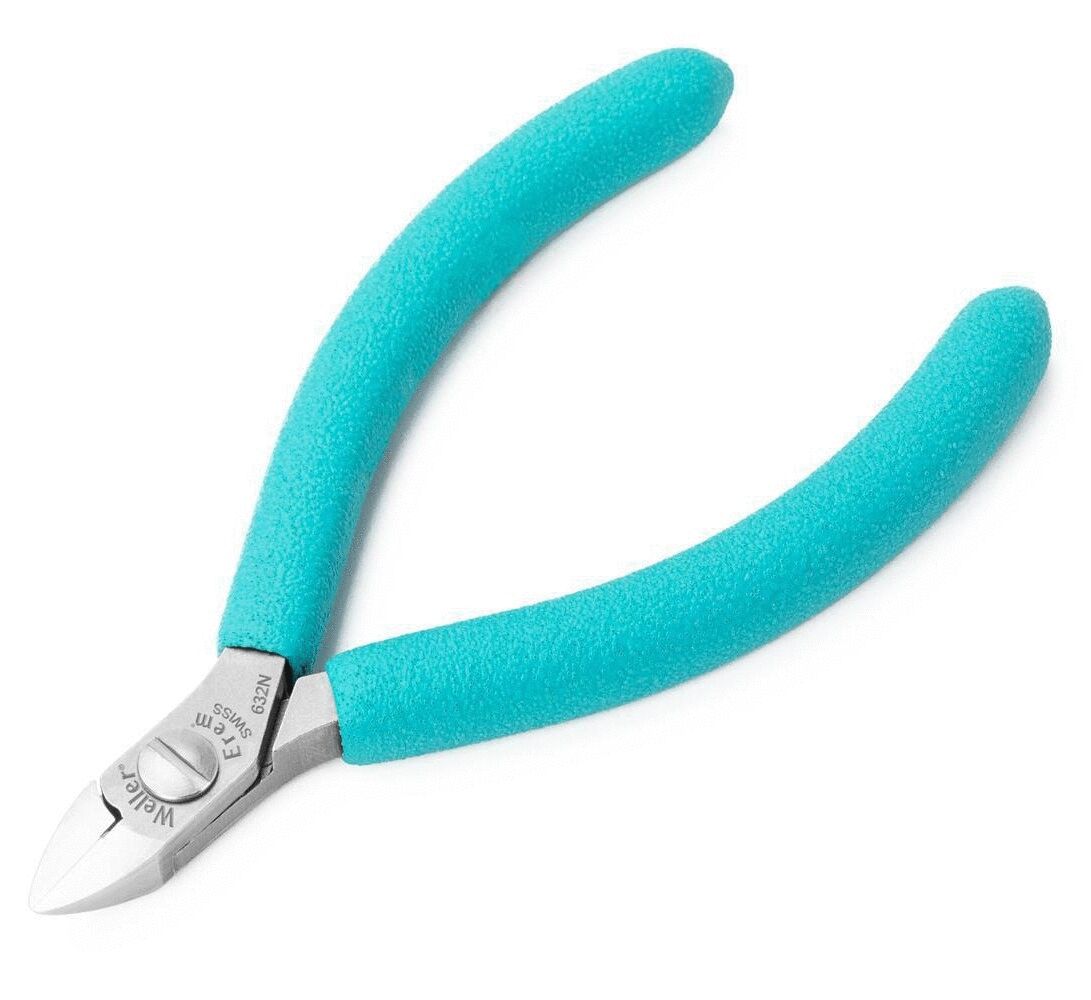

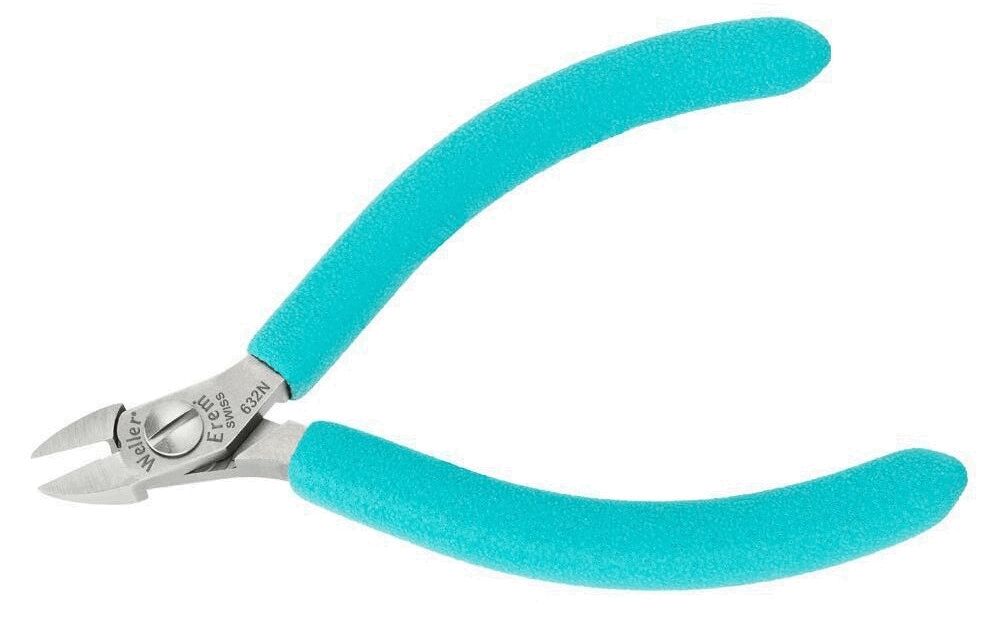

The overall length of the tool is 110 mm, with a blade length of 7.62 mm and a head thickness of 6 mm. The jaw length and head width are 10 mm and 9 mm respectively. The side cutter is suitable for wires up to a diameter of 1.29 mm (soft) and 0.68 mm (medium hard).
Additional features include a patented opening system that integrates the springs invisibly, thus minimizing the risk of injury, and the "Stop! Limit system" which prevents the crossing of the blades. The ESD-safe handles meet MIL-standard with a transition resistance between 10^5 and 10^9 Ohm. An optional wire holder is available that reduces the risk of eye injuries and damage to assemblies.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Max Ø medium Max Ø medium
- 0.68 mm
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 7.62 mm
- Length [mm] Length [mm]
- 110 mm
- Material Material
- Tool steel
- ESD ESD
- yes
- Head width Head width
- 9 mm
- Jaw length Jaw length
- 10 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers

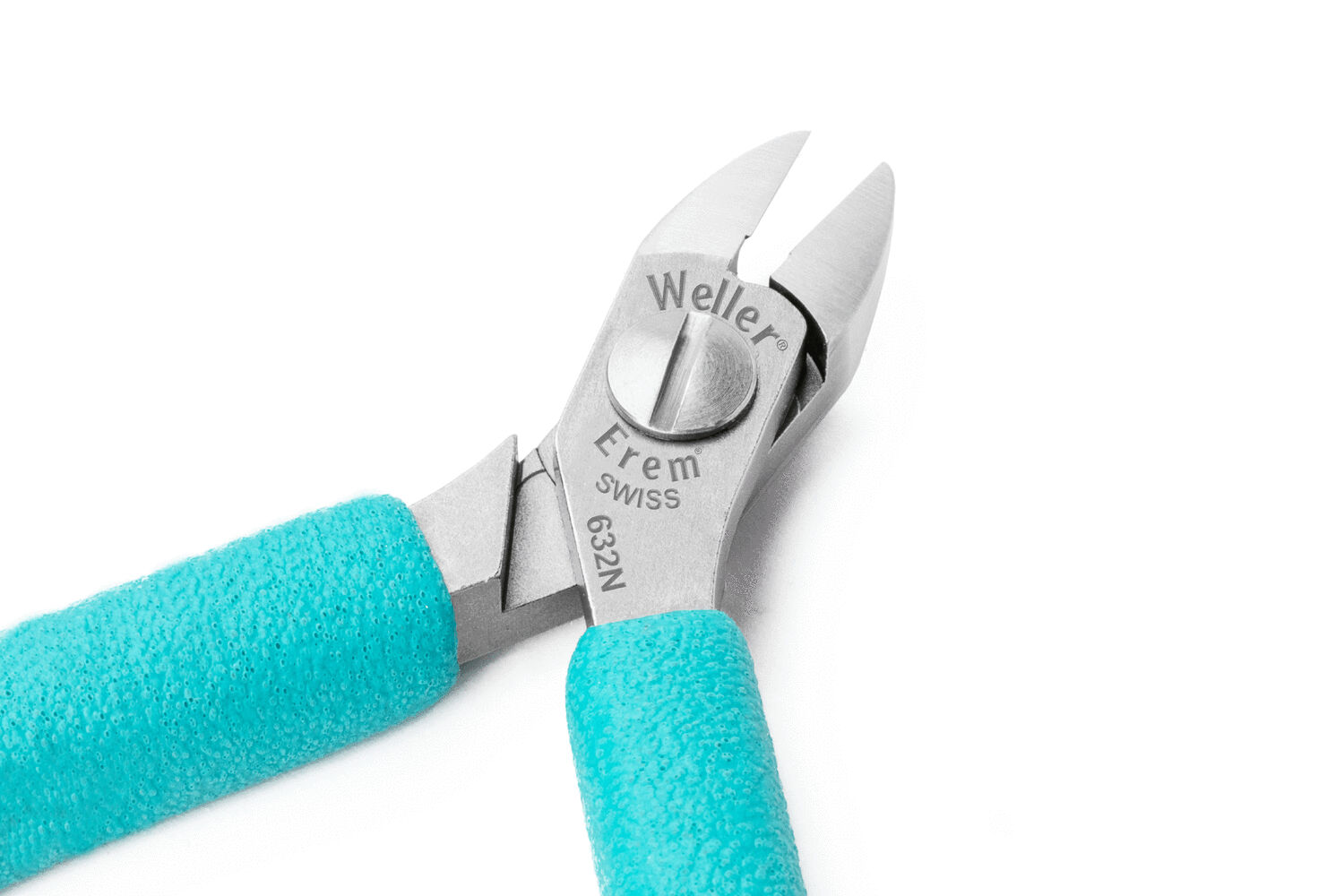

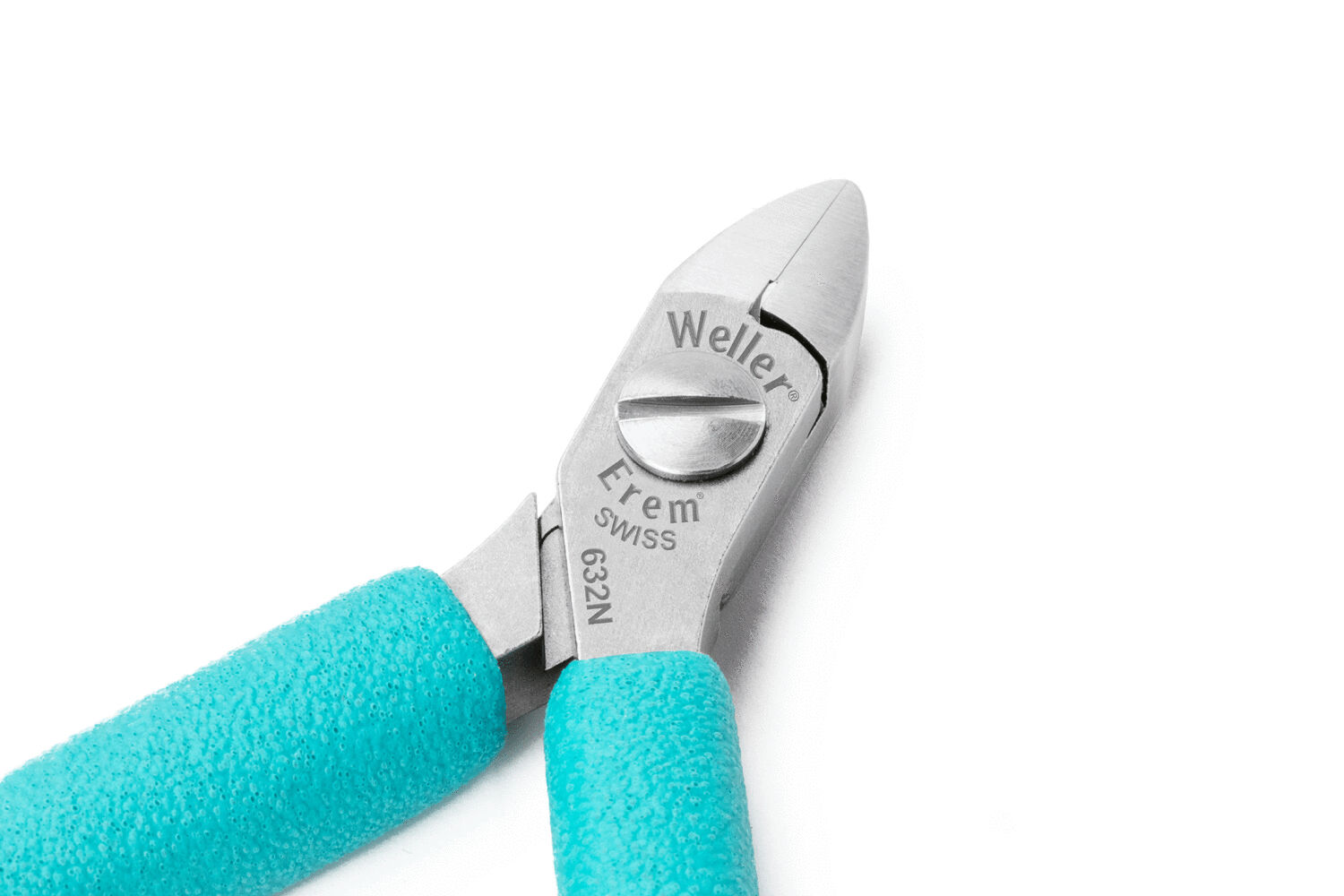

High-precision joints
The double self-locking screw joint with an extremely large movement area minimizes wear and tear.
Patented opening system
For the invisible integration of the springs. The result has proved: no risk of injury, long-lasting, exchangeable.
Antistatic standard handles
Contact resistance between 105 and 109 ohm according to MIL standards.
Stop! Stop system
Avoids the crossing (and thus the damaging) of the cutting edges.
Wire holder (option)
Prevents injuries of the eyes and the destruction of devices by uncontrollably separated cutting waste.
The cutting shapes and cutting performance:
With small bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel (facet)
Flush cut. Extremely sharp cutting edges. Only suitable for soft steel wires, copper wire and cable.
Without bevel flush (facet)
Flush cut for soft materials.
