Diagonal cutting pliers RX8144

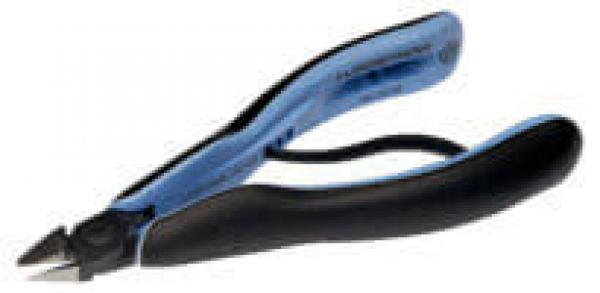

Side Cutter RX8144
The RX8144 side cutter from the Lindstrom RX series combines high performance, precision, and comfort in a robust tool. Made from 1% carbon/chrome steel (bearing quality) and refined through precision induction hardening, this tool achieves a Rockwell hardness of 63-65 HRC. The precision-ground cutting edges and induction-hardened blades ensure an exceptionally long life and clean cuts. The ergonomic two-component handles are ESD-safe and offer an excellent grip through their soft surface and firm core, even with prolonged use. The friction-reducing screw joint ensures smooth cuts without overlapping of the limbs. An opening spring with three adjustment options allows for customization of spring tension and opening width. This side cutter is ideal for precision work in hard-to-reach places or for rework. Technical Specifications: - Cut shapes: Micro-bevel, flush & ultra-flush - Cutting capacity: Copper - Material: High-performance steel alloy, phosphated - Handle material: PP - Length: 135.5 mm - Weight: 68 g - Max Ø medium: 0.8 mm - Max Ø soft: 1.25 mm - Head thickness: 6 mm - Jaw length: 10.5 mm - Head width: 8 mm - Head shape: pointed - Design: with safety spring
The RX8144 side cutter from the Lindstrom RX series combines high performance, precision, and comfort in a robust tool. Made from 1% carbon/chrome steel (bearing quality) and refined through precision induction hardening, this tool achieves a Rockwell hardness of 63-65 HRC. The precision-ground cutting edges and induction-hardened blades ensure an exceptionally long life and clean cuts. The ergonomic two-component handles are ESD-safe and offer an excellent grip through their soft surface and firm core, even with prolonged use. The friction-reducing screw joint ensures smooth cuts without overlapping of the limbs. An opening spring with three adjustment options allows for customization of spring tension and opening width. This side cutter is ideal for precision work in hard-to-reach places or for rework. Technical Specifications: - Cut shapes: Micro-bevel, flush & ultra-flush - Cutting capacity: Copper - Material: High-performance steel alloy, phosphated - Handle material: PP - Length: 135.5 mm - Weight: 68 g - Max Ø medium: 0.8 mm - Max Ø soft: 1.25 mm - Head thickness: 6 mm - Jaw length: 10.5 mm - Head width: 8 mm - Head shape: pointed - Design: with safety spring
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- small bevel
- Max Ø medium Max Ø medium
- 0.8 mm
- Max Ø soft Max Ø soft
- 1.25 mm
- Head thickness Head thickness
- 6 mm
- Length [mm] Length [mm]
- 135.5 mm
- Material Material
- steel
- Stick material Stick material
- PP
- ESD ESD
- yes
- Head shape Head shape
- snipe nose
- Head type/size Head type/size
- small
- Head width Head width
- 8 mm
- Jaw length Jaw length
- 10.5 mm
- Version Version
- with safety spring
- Weight Weight
- 68 g
Show accessories
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
