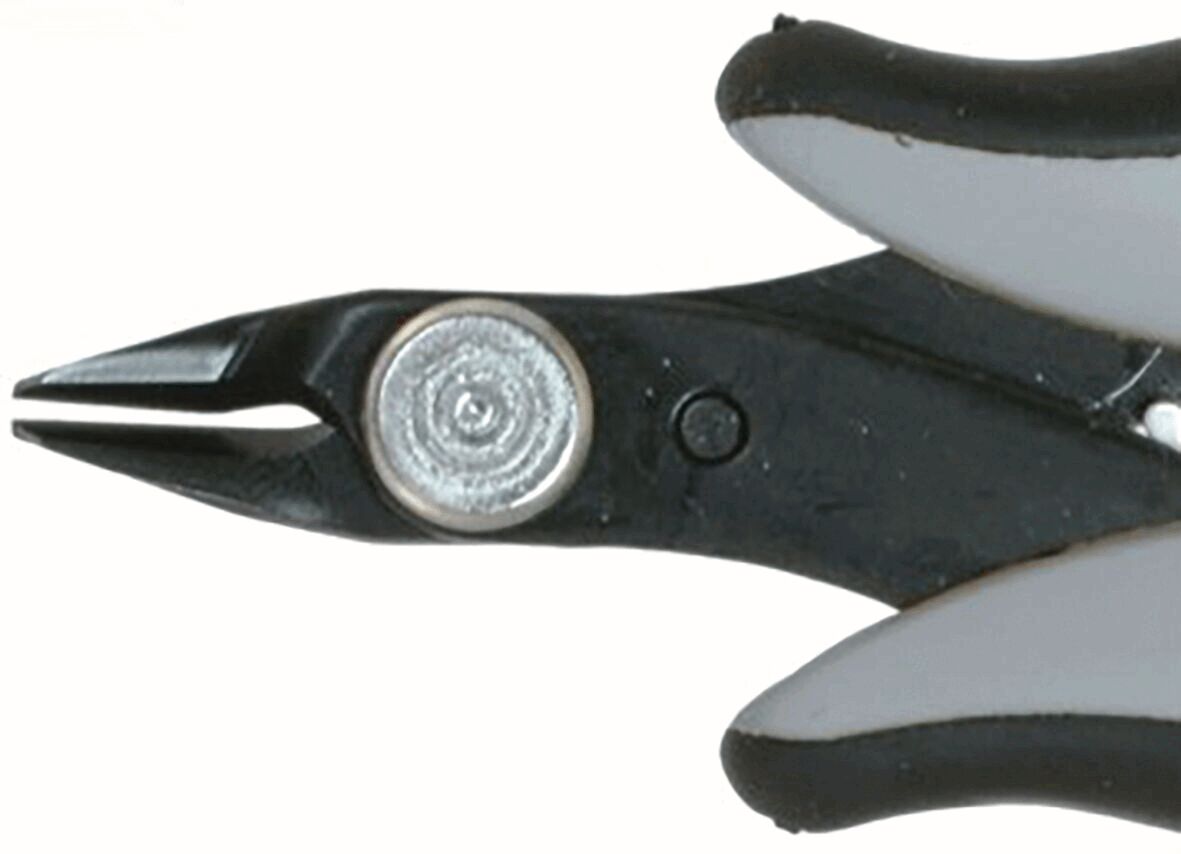

The image shows a small pair of pliers with pointed, black handles and metallic tips. The handle has a gray rubber coating for better grip. The pliers are in the closed position.

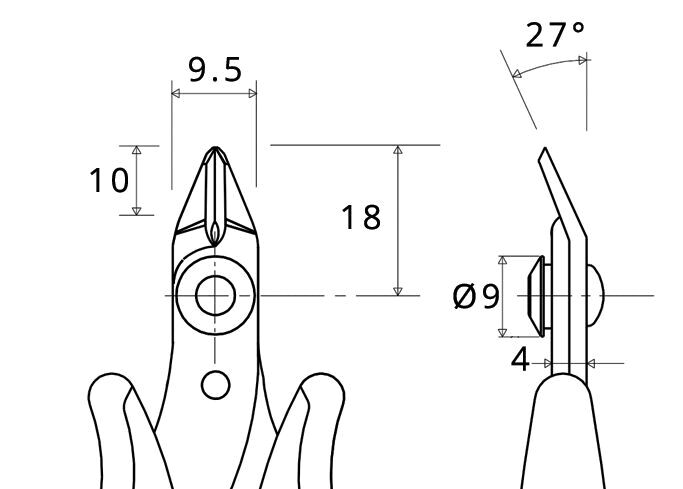

The image displays a technical drawing of pliers. It specifies dimensions: length 18 mm, width 9.5 mm, and specific angles. Shows various views of the pliers.
Preview: The image shows a pair of pliers with curved, non-slip handles in gray and black. The cutting edge is narrow and sharp, ideal for cutting fine materials.
Preview: The image shows a small pair of pliers with pointed, black handles and metallic tips. The handle has a gray rubber coating for better grip. The pliers are in the closed position.
Preview: The image displays a technical drawing of pliers. It specifies dimensions: length 18 mm, width 9.5 mm, and specific angles. Shows various views of the pliers.
Diagonal cutting pliers TR-20-M.D
(Product No.: TR-20-M.D)
The image shows a pair of pliers with curved, non-slip handles in gray and black. The cutting edge is narrow and sharp, ideal for cutting fine materials.
The image shows a small pair of pliers with pointed, black handles and metallic tips. The handle has a gray rubber coating for better grip. The pliers are in the closed position.
The image displays a technical drawing of pliers. It specifies dimensions: length 18 mm, width 9.5 mm, and specific angles. Shows various views of the pliers.
Mobile Preview: The image shows a pair of pliers with curved, non-slip handles in gray and black. The cutting edge is narrow and sharp, ideal for cutting fine materials.
Mobile Preview: The image shows a small pair of pliers with pointed, black handles and metallic tips. The handle has a gray rubber coating for better grip. The pliers are in the closed position.
Mobile Preview: The image displays a technical drawing of pliers. It specifies dimensions: length 18 mm, width 9.5 mm, and specific angles. Shows various views of the pliers.
Notice

Diagonal cutting pliers TR-20-M.D

Diagonal cutting pliers TR-20-M.D

dpvlink:
2100
Type of pliers:
Diagonal cutting pliers
Length :
132 mm
Bevel:
without bevel
Head shape:
angled
Degree of bending:
27 °
Max Ø soft:
0.81 mm
Properties:
Further product information

12.95 CHF

excl. 8.1% tax

1 PCE
Compare Compare
Notice
Product Info

Diagonal cutting pliers TR-20-M.D

The side cutter TR-20-M.D from Piergiacomi combines functionality and ergonomic design for demanding applications. This model is characterized by its compact size with a length of 132 mm and a head width of 9.5 mm, making it ideal for working in hard-to-reach places. The micro-cutting pliers are made of robust steel and have a head shape that is angled to cut precisely even in complicated angles.
The blade length is 10 mm and the head thickness is 4 mm, with a bending angle of 27°. The side cutter is ESD-safe, making it particularly suitable for electronic work. Despite its small head size and the absence of a bevel, it offers a cutting force of 3 kg and can cut through materials up to a diameter of 0.81 mm. The lightweight and anatomical shape ensure easy handling even during long-lasting or complex activities.
Type of pliers
Type of pliers
Diagonal cutting pliers
Length
Length
132 mm
Bevel
Bevel
without bevel
Head shape
Head shape
angled
Degree of bending
Degree of bending
27 °
Max Ø soft
Max Ø soft
0.81 mm
AWG soft
AWG soft
20
Head thickness
Head thickness
4 mm
Blade length
Blade length
10 mm
Material
Material
steel
ESD
ESD
yes
Cutting force
Cutting force
3 kg
Head type/size
Head type/size
small
Head width
Head width
9.5 mm
Pictograms
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.

Documents

Downloads

Please log in to download datasheets! :
There are several datasheets for this product. Please log in!

Catalogues

Page: 459
Complete Catalog 2023 - 2024

Product Family

Article image
Article description
Type of pliers
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
TR-20-M.D - Diagonal cutting pliers TR-20-M.D
TR-20-M.D
Diagonal cutting pliers TR-20-M.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm

12.95 CHF
TR-20-M-A.D - Diagonal cutting pliers TR-20-M-A.D
TR-20-M-A.D
Diagonal cutting pliers TR-20-M-A.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm
with opening spring
13.65 CHF
TR-25-P-A.D - Diagonal cutting pliers TR-25-P A.D
TR-25-P-A.D
Diagonal cutting pliers TR-25-P A.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
1.02 mm
with opening spring
14.35 CHF
TR-20-SM.D - Diagonal cutting pliers TR-20-SM.D
TR-20-SM.D
Diagonal cutting pliers TR-20-SM.D
Diagonal cutting pliers
132 mm
without bevel
angled
27 °
0.81 mm

12.95 CHF
TR-20-50-M.D - Diagonal cutting pliers TR-20-50-M.D
TR-20-50-M.D
Diagonal cutting pliers TR-20-50-M.D
Diagonal cutting pliers
131 mm
without bevel
angled
50 °
0.64 mm

12.85 CHF
TR-20-TM.D - Diagonal cutting pliers TR-20-TM.(D)
TR-20-TM.D
Diagonal cutting pliers TR-20-TM.(D)
Diagonal cutting pliers
129 mm
without bevel
angled
50 °
0.64 mm

19.05 CHF
TR-20-VM.D - End cutting pliers TR-20-VM.D
TR-20-VM.D
End cutting pliers TR-20-VM.D
Oblique end cutting pliers
132 mm
small bevel
straight

0.64 mm

15.65 CHF
