Diagonal cutting pliers TR-25-15.D

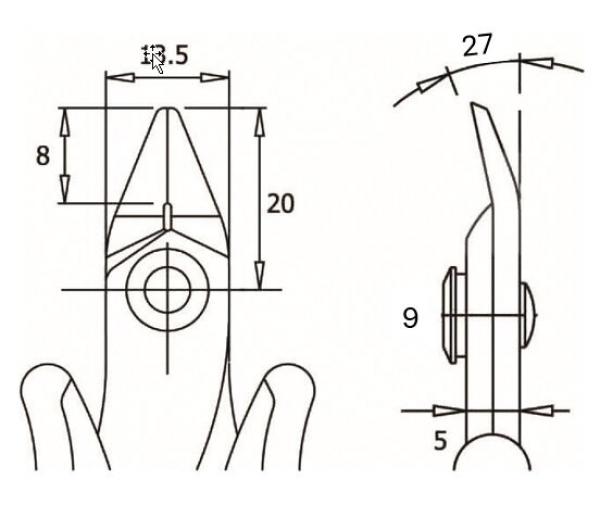

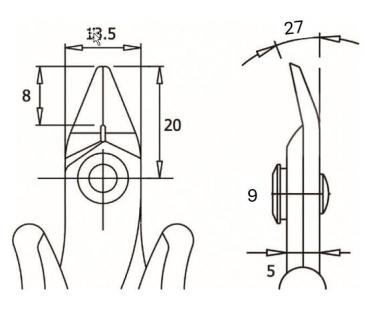

The side cutter TR-25-15.D from Piergiacomi is specifically designed for precise cutting tasks in technical and electronic applications. This model is characterized by its ESD-dissipative design according to DIN EN 61340-5-1, making it ideal for use in ESD-sensitive environments. With a total length of 138 mm and a head width of 13.5 mm, the side cutter offers a compact and handy solution for cutting soft materials up to a diameter of 1.29 mm.
The cutting force of 5 kg along with a special reverse edge and an angled head shape enables precise cutting with a minimum protrusion of 1.5 mm from the work surface. The blade length is 8 mm and the head thickness is 5 mm, ensuring accurate guidance and long-lasting cutting performance. The bending angle of 27° supports ergonomic working. Made from high-quality steel, the side cutter guarantees durability and reliability with every use.
The cutting force of 5 kg along with a special reverse edge and an angled head shape enables precise cutting with a minimum protrusion of 1.5 mm from the work surface. The blade length is 8 mm and the head thickness is 5 mm, ensuring accurate guidance and long-lasting cutting performance. The bending angle of 27° supports ergonomic working. Made from high-quality steel, the side cutter guarantees durability and reliability with every use.
Details
- Bevel Bevel
- reversed bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 8 mm
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Reversed bevel
Special shape of the cutting edge where the cutting edges are inclined inwards rather than outwards. This shape makes it possible to make particularly fine and precise cuts by pulling the material into the cutting edges instead of pushing it outwards.
