Diagonal cutting pliers TR-25-15-L.D
The Piergiacomi TR-25-15-L.D side cutter is a high-quality addition to any technical equipment. This model is distinguished by its long handles, which ensure less strain during use and are thus ideal for longer working intervals. With an overall length of 160 mm and a blade length of 10 mm, this side cutter combines precision with comfort.
The reverse edge and angled head shape enable precise cutting even in hard-to-reach areas. The side cutter can cut materials up to a diameter of 1.29 mm and has a cutting force of 3 kg. The ESD-safe design according to DIN EN 61340-5-1 ensures that the side cutter can also be used in sensitive electronic work environments.

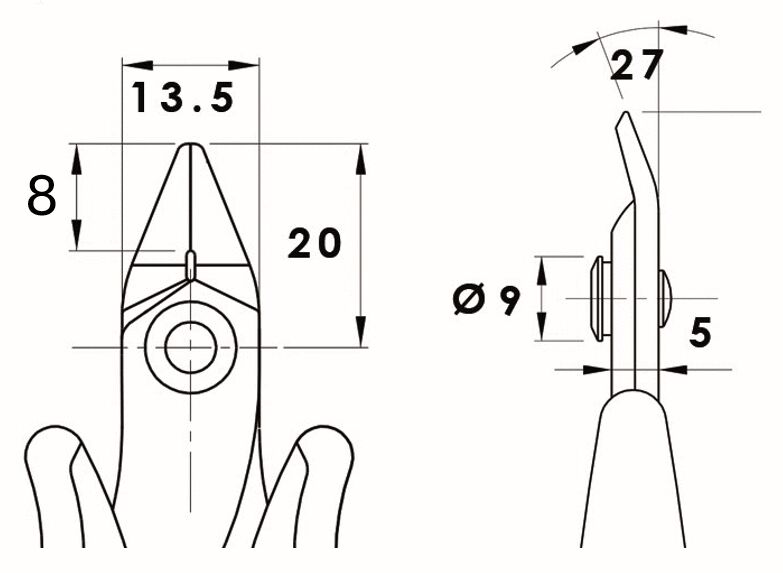

The tool is made of high-quality steel, has a head width of 13.5 mm, and a head thickness of 5 mm. With a bending degree of 27, it offers additional flexibility in application. The TR-25-15-L.D side cutter is thus an ideal choice for professionals who value efficiency, ergonomics, and precision.
The reverse edge and angled head shape enable precise cutting even in hard-to-reach areas. The side cutter can cut materials up to a diameter of 1.29 mm and has a cutting force of 3 kg. The ESD-safe design according to DIN EN 61340-5-1 ensures that the side cutter can also be used in sensitive electronic work environments.
The tool is made of high-quality steel, has a head width of 13.5 mm, and a head thickness of 5 mm. With a bending degree of 27, it offers additional flexibility in application. The TR-25-15-L.D side cutter is thus an ideal choice for professionals who value efficiency, ergonomics, and precision.
Details
- Bevel Bevel
- reversed bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 10 mm
- Length [mm] Length [mm]
- 160 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 3 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

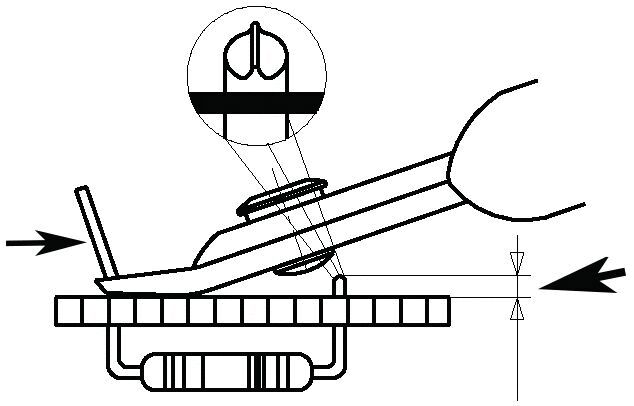

Reversed bevel
Special shape of the cutting edge where the cutting edges are inclined inwards rather than outwards. This shape makes it possible to make particularly fine and precise cuts by pulling the material into the cutting edges instead of pushing it outwards.
