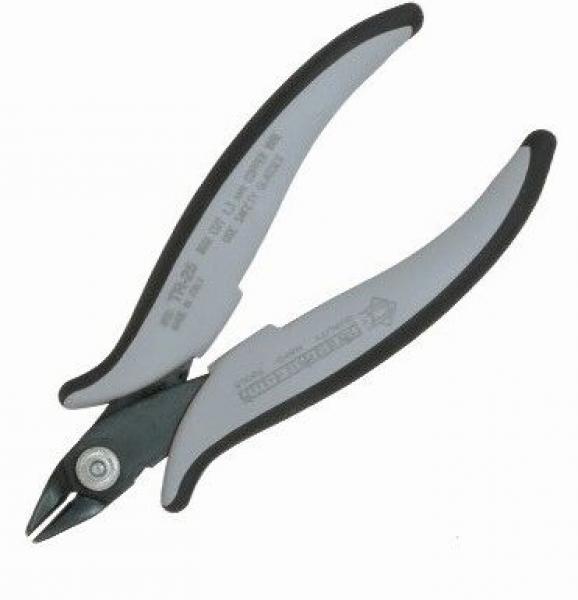

Diagonal cutting pliers TR-25.D
Diagonal cutting pliers TR-25.D

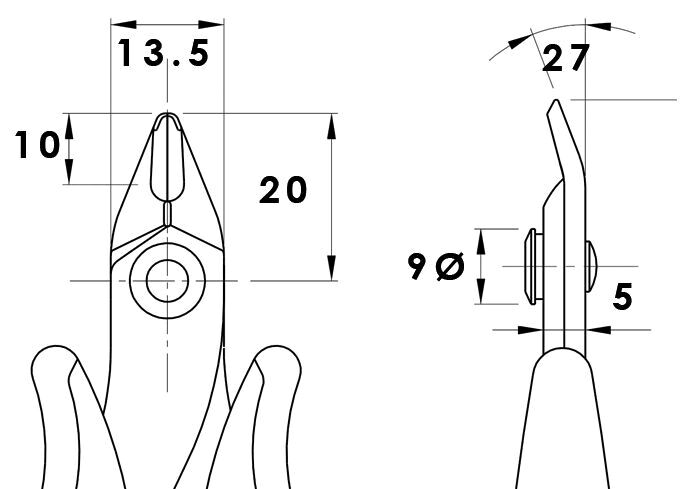

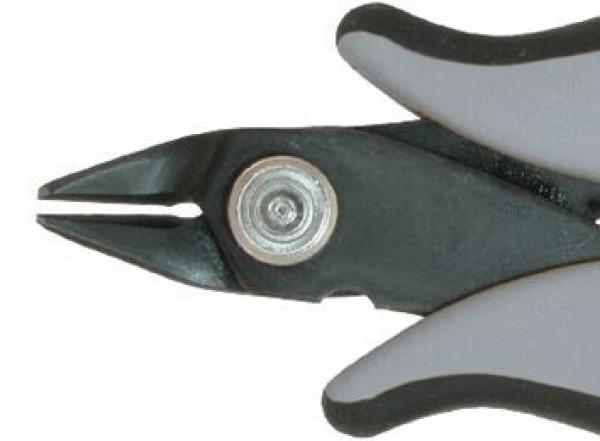

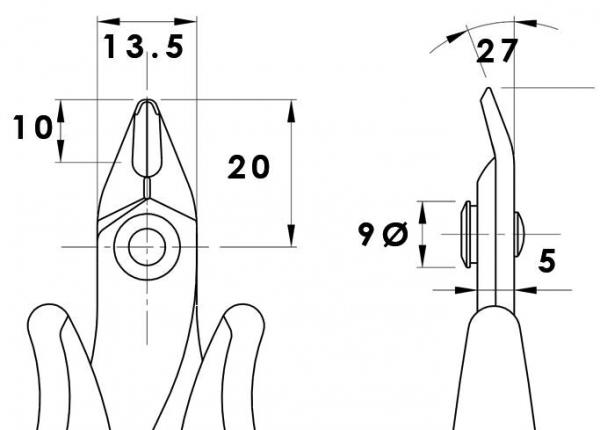

The TR-25.D side cutter from Piergiacomi combines functionality and precision in a compact design. This tool is especially suitable for technical applications where ESD safety according to DIN EN 61340-5-1 is required. The dissipative ESD design prevents the accumulation of static electricity, thus protecting sensitive electronic components.The total length of the side cutter is 138 mm and it features a small, angled head shape with a head width of 13.5 mm and a head thickness of 5 mm. The blade length of 8 mm allows for precise cuts. Despite its robust steel construction, the tool is lightweight and handy. With a maximum cutting capacity for soft material up to a diameter of 1.29 mm and a cutting force of 5 kg, the TR-25.D side cutter offers very good cutting properties for various applications. The bending angle of 27° supports ergonomic working.
This high-quality tool is ideal for professionals who value precision and safety.
Details
- Length Length
- 138 mm
- Bevel Bevel
- without bevel
- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 27 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 10 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5 kg
- Head type/size Head type/size
- small
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Piergiacomi ESD Diagonal cutting pliers series Evolution
Article image
Article description
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
