Diagonal cutting pliers TR-25-L-25.A.D
Diagonal cutting pliers TR-25-L-25.A.D

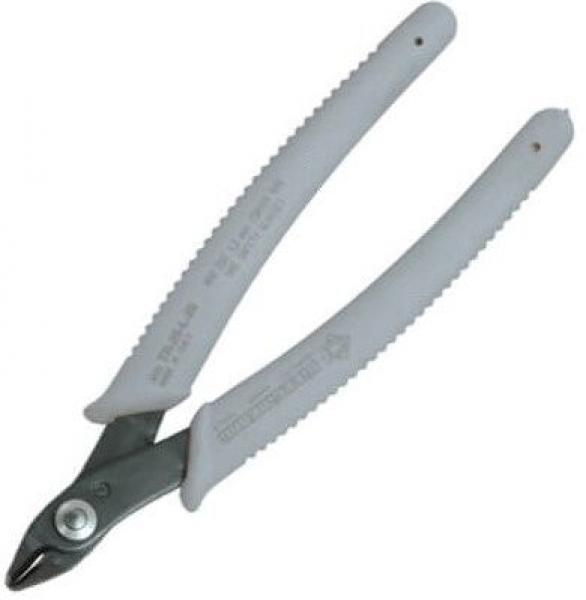

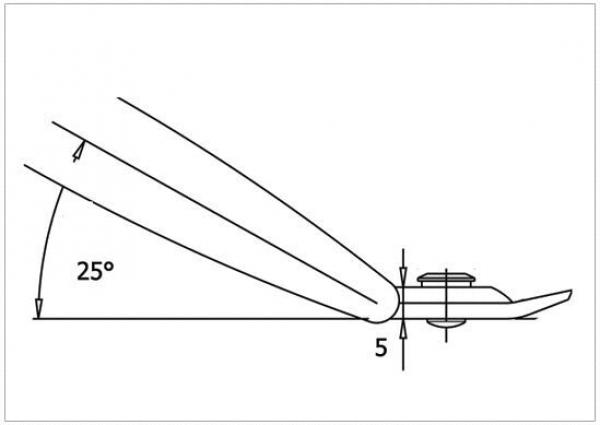

The side cutter TR-25-L-25-A.D from Piergiacomi is specifically designed for use in dense and hard-to-reach areas. This high-quality tool is characterized by its long, 25° angled handles, which allow for ergonomic handling and efficient force transmission. With a total length of 160 mm and a head thickness of 5 mm, the side cutter provides precise cutting performance without burrs.The compact head shape is ideal for precise cuts, with the maximum diameter for soft materials being 1.29 mm. The ESD-safe design complies with the standard DIN EN 61340-5-1 and protects sensitive electronic components from static discharge. Additionally, the tool is equipped with a safety spring that makes handling safer and more comfortable. Made from robust steel, the side cutter guarantees a long lifespan and a cutting force of 3 kg, making it an indispensable tool in any technical equipment.
Details
- Length Length
- 160 mm
- Bevel Bevel
- without bevel
- Version Version
- with opening spring

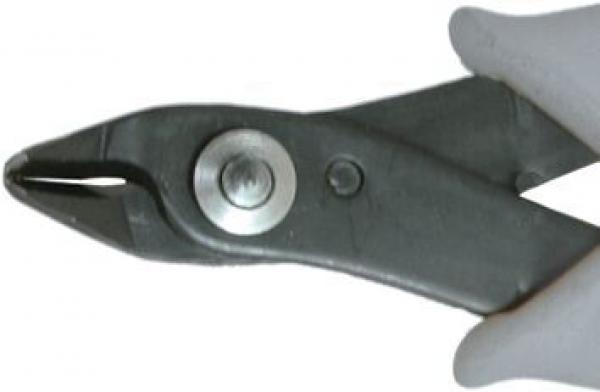

- Head shape Head shape
- angled
- Degree of bending Degree of bending
- 25 °
- Max Ø soft Max Ø soft
- 1.29 mm
- AWG soft AWG soft
- 16
- Head thickness Head thickness
- 5 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 3 kg
- Head type/size Head type/size
- small
- Type of pliers Type of pliers
- Diagonal cutting pliers
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
Article image
Article description
Length
Bevel
Head shape
Degree of bending
Max Ø soft
Version
Price
Compare
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
without bevel
angled
27 °
1.29 mm
with opening spring
160 mm
reversed bevel
angled
27 °
1.29 mm
160 mm
without bevel
angled
25 °
1.29 mm
with opening spring
138 mm
without bevel
angled
27 °
1.29 mm
with opening spring
138 mm
small bevel at 1.5 mm height
angled
27 °
1.29 mm
138 mm
mini bevel
angled
27 °
1,63 mm
with opening spring
138 mm
without bevel
angled
27 °
1,63 mm
with opening spring
138 mm
mini bevel
angled
27 °
2.05 mm
with opening spring
138 mm
without bevel
angled
27 °
2.05 mm
with opening spring
