Diagonal cutting pliers TR-25-L-A.D

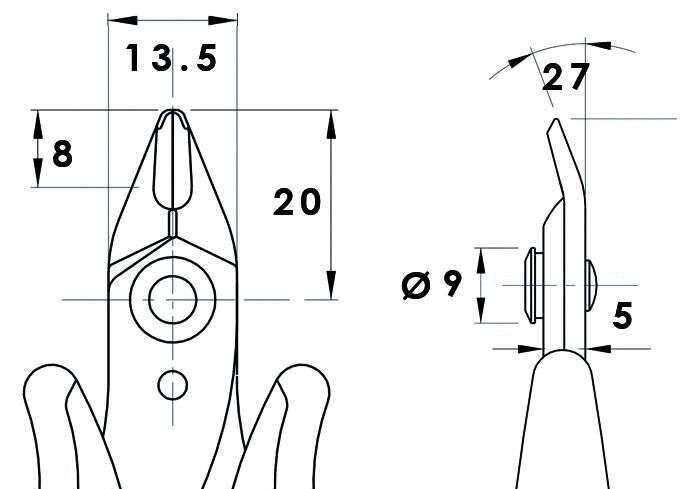

The side cutter TR-25-L-A.D from Piergiacomi is specifically designed for precise and fatigue-free cutting tasks. This model is distinguished by its long handles, which significantly reduce the effort required during cutting. With a total length of 160 mm and a head width of 13.5 mm, the side cutter allows for exact handling.
The angled head shape and the small head size with a head thickness of 5 mm and a blade length of 8 mm enable precise cuts even in hard-to-reach areas. The maximum diameter for soft materials is 1.29 mm. Additionally, the tool is equipped with a safety spring that makes the work safer.
The ESD-safe design according to DIN EN 61340-5-1 ensures that no static charge is generated, which is particularly important in sensitive electronic work environments. The side cutter is made of robust steel, offers a cutting force of 3 kg, and is known for its durability and reliability.
The angled head shape and the small head size with a head thickness of 5 mm and a blade length of 8 mm enable precise cuts even in hard-to-reach areas. The maximum diameter for soft materials is 1.29 mm. Additionally, the tool is equipped with a safety spring that makes the work safer.
The ESD-safe design according to DIN EN 61340-5-1 ensures that no static charge is generated, which is particularly important in sensitive electronic work environments. The side cutter is made of robust steel, offers a cutting force of 3 kg, and is known for its durability and reliability.
Details
- Bevel Bevel
- without bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Version Version
- with safety spring
- Head thickness Head thickness
- 5 mm
- Blade length Blade length
- 8 mm
- Length [mm] Length [mm]
- 160 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 3 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Without bevel
Specially shaped cutting edge that is curved inwards. Flush cut. Only for soft materials such as fine wires.
