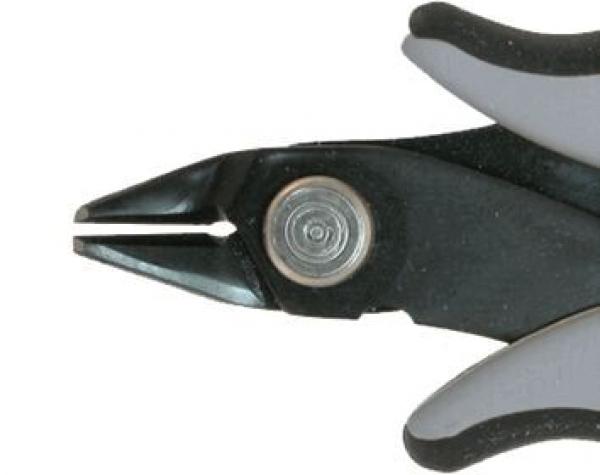

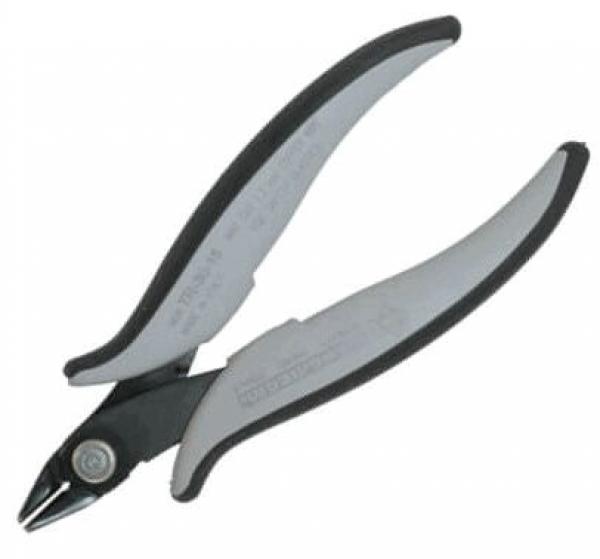

Diagonal cutting pliers TR-30-15.D
The side cutter TR-30-15.D from Piergiacomi is specifically designed to precisely separate components 1.5 mm from the work surface, ensuring that the cut part remains flat. This tool features a small jaw at a height of 1.5 mm and has a small, angled head, which allows for precise work in confined spaces. With a blade length of 8 mm and an overall length of 138 mm, the side cutter provides excellent handling.
The material is made of robust steel, and the tool is ESD-safe, making it ideal for electrostatically sensitive work areas. The maximum diameter for soft materials is 1.29 mm. The cutting force is 5.5 kg, and the tool's bending angle is set at 27°, offering additional flexibility in cutting. These features make the side cutter TR-30-15.D an indispensable tool for precise cutting tasks in electronics and precision mechanics.
The material is made of robust steel, and the tool is ESD-safe, making it ideal for electrostatically sensitive work areas. The maximum diameter for soft materials is 1.29 mm. The cutting force is 5.5 kg, and the tool's bending angle is set at 27°, offering additional flexibility in cutting. These features make the side cutter TR-30-15.D an indispensable tool for precise cutting tasks in electronics and precision mechanics.
Details
- Bevel Bevel
- small bevel at 1.5 mm height
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 1.29 mm
- Blade length Blade length
- 8 mm
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 5.5 kg
- Head shape Head shape
- angled
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

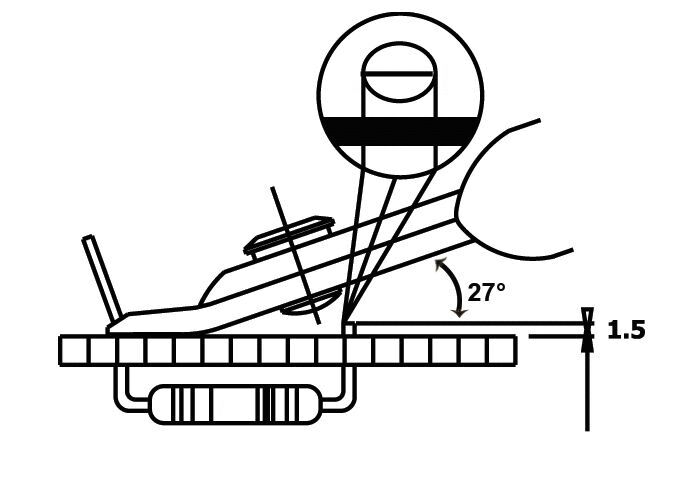

Bevel at 1,5 mm
The distance from the cutting surface to the upper edge of the bevel is 1.5 mm. Ideal for precise and fine cuts, especially with delicate wires and components.
