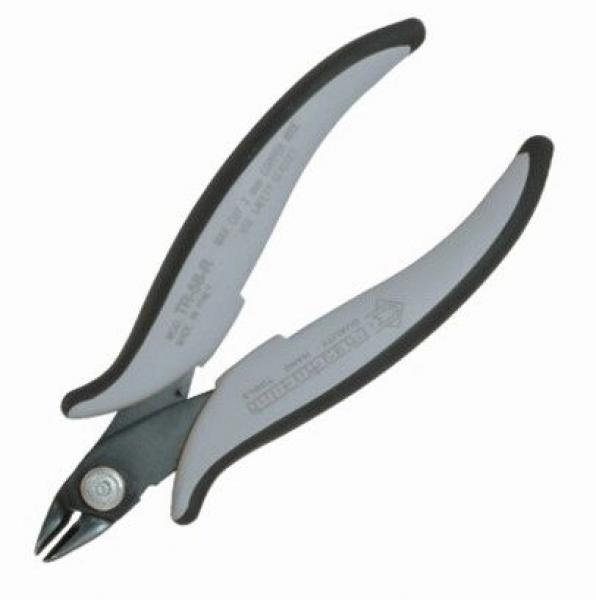

Diagonal cutting pliers TR-58-R-A.D
The side cutter TR-58-R-A.D by Piergiacomi is specifically designed for precise cutting tasks in electronics manufacturing. This model features a small bevel and an angled head shape, which can be efficiently used in tight work areas. With a total length of 138 mm and a head width of 13.5 mm, the side cutter allows for optimal handling.
The maximum cutting capacity for soft materials such as copper is 2.05 mm in diameter (equivalent to AWG 12), while the blade length is 8 mm. The cutting force of 9 kg ensures clean and precise cuts.
The version with a safety spring prevents unintentional opening and provides additional safety during work. The tool is ESD-safe, making it ideal for working on electrostatically sensitive components. Made from robust steel, this side cutter promises durability and reliability. The head thickness is 6 mm and the bend angle is 27°, which allows for additional precision in cutting.
The maximum cutting capacity for soft materials such as copper is 2.05 mm in diameter (equivalent to AWG 12), while the blade length is 8 mm. The cutting force of 9 kg ensures clean and precise cuts.
The version with a safety spring prevents unintentional opening and provides additional safety during work. The tool is ESD-safe, making it ideal for working on electrostatically sensitive components. Made from robust steel, this side cutter promises durability and reliability. The head thickness is 6 mm and the bend angle is 27°, which allows for additional precision in cutting.
Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- small
- Max Ø soft Max Ø soft
- 2.05 mm
- Version Version
- with safety spring
- Head thickness Head thickness
- 6 mm
- Blade length Blade length
- 8
- Length [mm] Length [mm]
- 138 mm
- Material Material
- steel
- ESD ESD
- yes
- Cutting force Cutting force
- 9 kg
- Head shape Head shape
- angled
- Head width Head width
- 13.5 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Degree of bending Degree of bending
- 27 °
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.

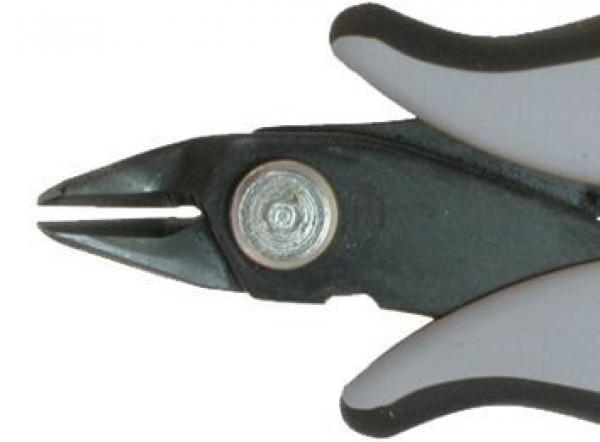

Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
