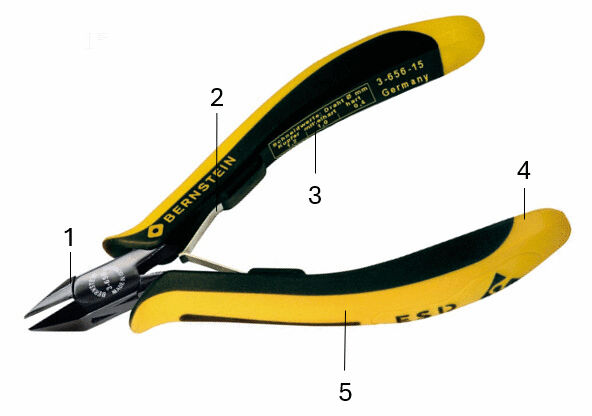

ESD Diagonal cutting pliers EUROline, slim, pointed head
ESD Diagonal cutting pliers EUROline, slim, pointed head
The Bernstein EUROline ESD diagonal cutter is distinguished by its precise cutting action and high-quality craftsmanship. This tool is specifically designed for demanding cutting tasks in electronics and precision mechanics, where its compact shape with a narrow, pointed head facilitates work in hard-to-reach areas. The head width of only 11 mm and a cutting length of 13 mm allow for exact cuts, with the diagonal cutter able to precisely cut materials up to a diameter of 1.5 mm (soft) and 1.0 mm (medium).Made from high-quality tool steel (HRC 56-58), the diagonal cutter offers durability and a high-gloss burnished surface for added protection. The ergonomically shaped handle made of ESD plastic protects sensitive components from electrostatic discharges (conductivity between 10⁶ and 10⁹ Ohm). With a total length of 125 mm and weighing only 70 g, the tool is lightweight and comfortable to handle, making it an ideal companion for fine and precise cutting tasks.
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- mini bevel
- Head shape Head shape
- snipe nose / narrow
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 18
- AWG soft AWG soft
- 15
- Length Length
- 125 mm
- Material Material
- Tool steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- burnished brilliant
- ESD ESD
- yes
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 13 mm
- Version Version
- with opening spring
- Weight Weight
- 70 g
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Mini bevel
Almost flush cut with fine cutting edges. Slightly shock-reduced cut, the cut leaves only a very small point at the end of the wire. Can be used for soft steel wires and copper wires.
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Product Family
Article image
Article description
Type of pliers
Bevel
Head shape
Head type/size
Max Ø soft
Max Ø medium
Max Ø hard
Price
Compare
Mini diagonal cutting pliers
mini bevel
rounded
small
1.45 mm
0.81 mm
Mini diagonal cutting pliers
mini bevel
snipe nose / narrow
small
1.45 mm
0.81 mm
Mini diagonal cutting pliers
mini bevel
snipe nose
small
1.45 mm
0.81 mm
Diagonal cutting pliers
with bevel
rounded
regular
1.45 mm
1.02 mm
0.4 mm
Diagonal cutting pliers
mini bevel
rounded
regular
1.45 mm
1.02 mm
Diagonal cutting pliers
with bevel
snipe nose / narrow
regular
1.45 mm
1.02 mm
0.32 mm
Diagonal cutting pliers
mini bevel
snipe nose / narrow
regular
1.45 mm
1.02 mm
Diagonal cutting pliers
mini bevel
angled
regular
0.81 mm
0.64 mm
Oblique end cutting pliers
mini bevel
oblique
small
1.15 mm
1.02 mm
0.4 mm
