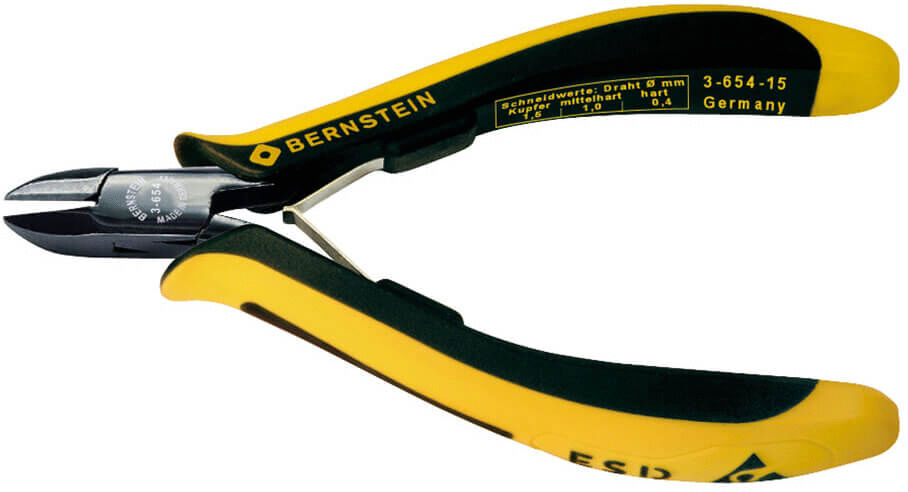

ESD Diagonal cutting pliers EUROline
The ESD diagonal cutter EUROline by Bernstein is a high-precision tool specifically designed for fine mechanical and electronic tasks. This mini-diagonal cutter features a pyramid-like cut that enables clean and precise cuts. The cutting capacities range from Ø 1.5 mm in soft materials to 0 mm in piano wire, with a maximum cutting capacity for medium-hard materials at 1.02 mm.
With a head width of only 11 mm and a cutting length of 13 mm, the tool is ideal for precise operations in hard-to-reach areas. The diagonal cutter is made from high-quality steel (HRC 56-58) and features a high-gloss burnished surface that provides both corrosion protection and an attractive appearance.
The ergonomically shaped 2-component ESD plastic handle improves handling and protects sensitive electronic components from electrostatic discharges (resistance between 10⁶ and 10⁹ Ohm). With an overall length of 125 mm and a weight of 70 g, the diagonal cutter is lightweight and comfortable to use. This makes it an essential tool for professional applications in sensitive environments.
With a head width of only 11 mm and a cutting length of 13 mm, the tool is ideal for precise operations in hard-to-reach areas. The diagonal cutter is made from high-quality steel (HRC 56-58) and features a high-gloss burnished surface that provides both corrosion protection and an attractive appearance.
The ergonomically shaped 2-component ESD plastic handle improves handling and protects sensitive electronic components from electrostatic discharges (resistance between 10⁶ and 10⁹ Ohm). With an overall length of 125 mm and a weight of 70 g, the diagonal cutter is lightweight and comfortable to use. This makes it an essential tool for professional applications in sensitive environments.
Details
- Bevel Bevel
- small bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.45 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0.4 mm
- Length [mm] Length [mm]
- 125
- Material Material
- Quality steel
- Surface Surface
- burnished brilliant
- ESD ESD
- yes
- Head shape Head shape
- rounded
- Head width Head width
- 11 mm
- Jaw length Jaw length
- 13 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Weight Weight
- 70
ESD protective
Electrostatic Discharge - marking for materials intended to protect other components from ESD by avoiding potential differences.
Small bevel
Standard bevel. Almost smooth, flush cut. Applicable for soft and medium-hard steel wires and copper wires.
