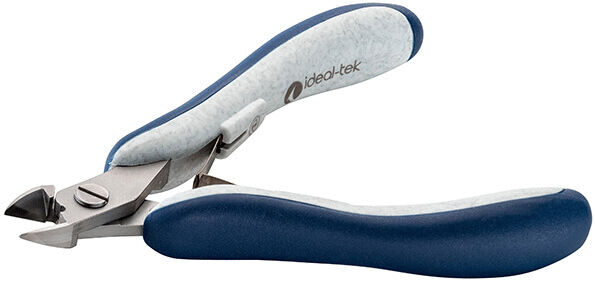

ESD Diagonal cutting pliers Slim 5140

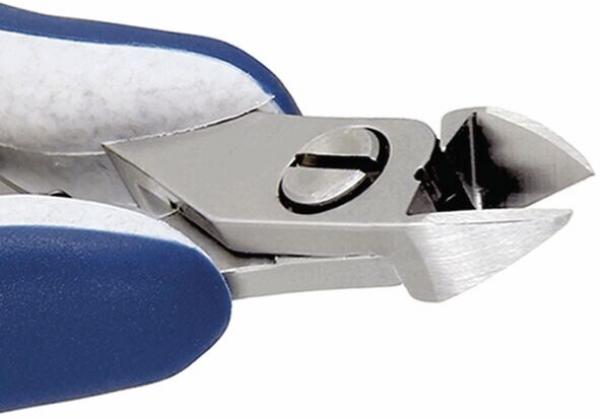

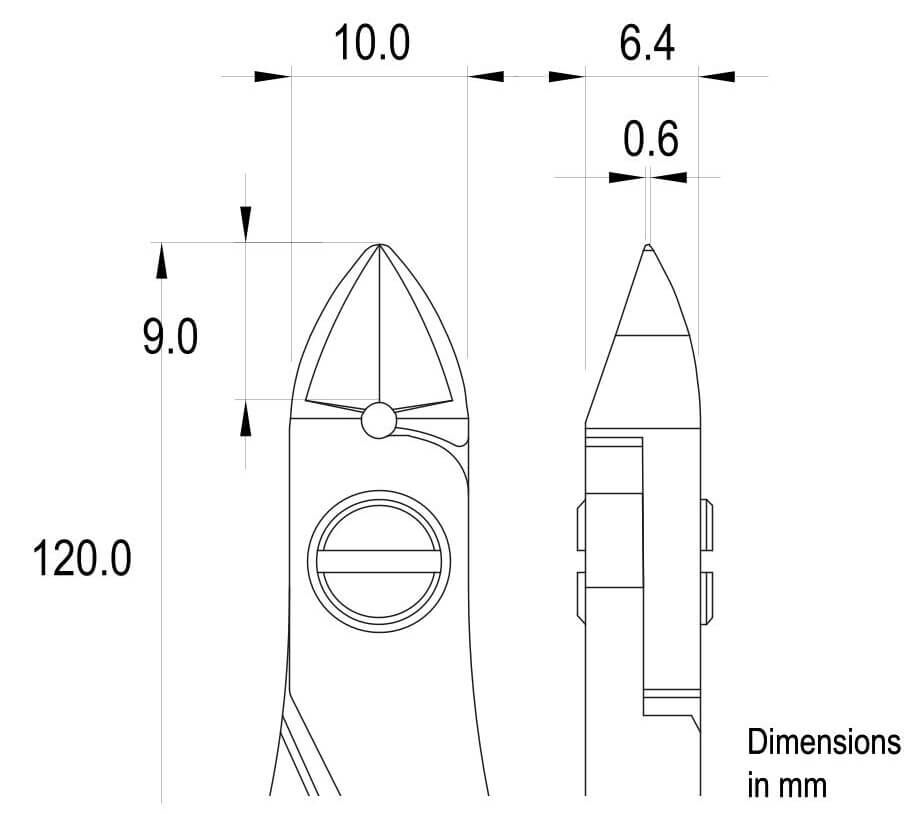

The ESD side cutter Slim 5140 from ideal-tek is a high-precision tool, specifically designed for use in areas sensitive to electrostatic discharges. This side cutter belongs to the family of small oval cutters and is distinguished by its robust construction with a head width of only 10 mm and a head thickness of 6.4 mm, which facilitates access to hard-to-reach areas.The semi-flush cutting edge of the tool is ideal for robust cuts, while the blades made of hardened steel with a hardness of 67 HRC ensure high durability and precision. The total length of the side cutter is 120 mm and the weight is 82 g, which allows for easy handling.
The handles are equipped with ESD Ergo-Tek Slim technology and are made of a combination of PP and TPE, which not only provides a secure grip but also ensures electrostatic discharge capability. The cutter can cut materials up to a maximum hardness of 0.6 mm (hard), 1.02 mm (medium), and 1.15 mm (soft) and is suitable for wire sizes from AWG 48-23 (hard), AWG 38-18 (medium) to AWG 32-17 (soft).
The surface of the tool is sandblasted, which additionally contributes to its durability and completes the overall design.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0,6 mm
- AWG hard AWG hard
- 48-23
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 82 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
