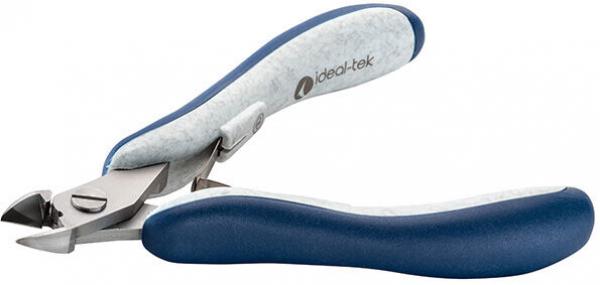

ESD Diagonal cutting pliers Slim 5141

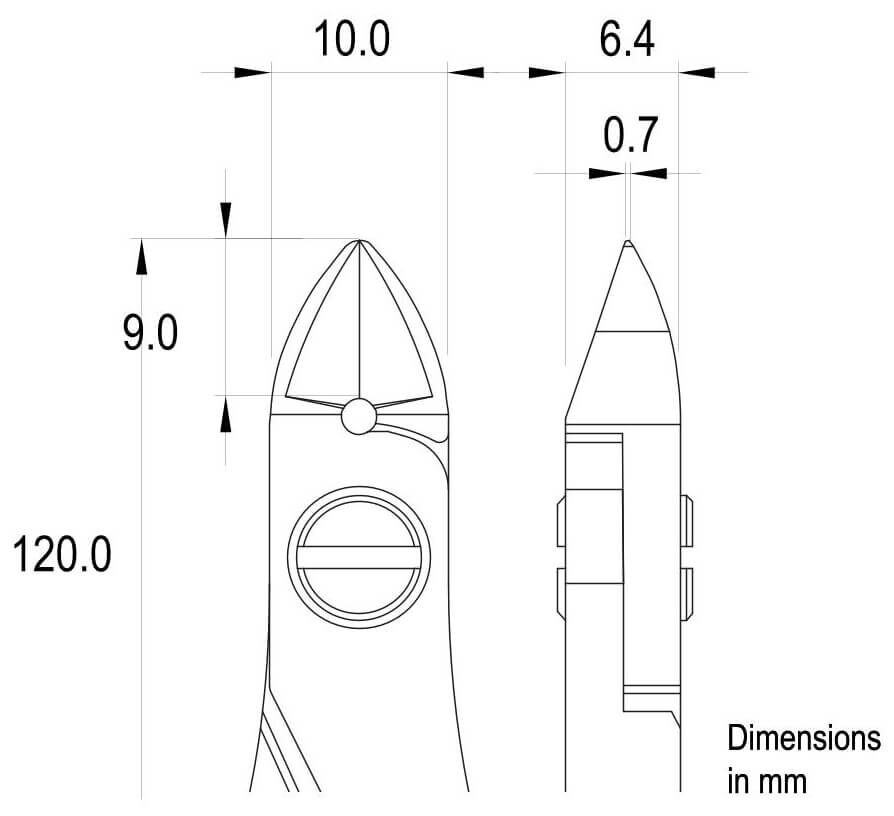

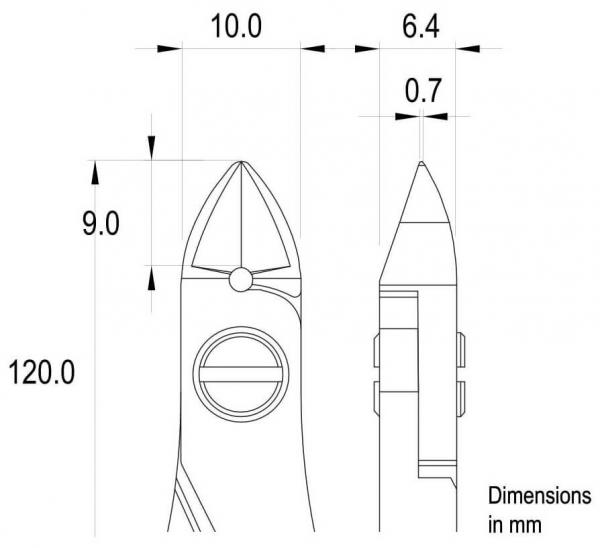

The ESD side cutter Slim 5141 from ideal-tek is a high-precision tool specifically designed for accessing tight areas. This side cutter falls into the category of small oval cutters and is characterized by its robust and durable construction. The oval head shape, with a width of 10 mm and a length of 9 mm, combined with a head thickness of 6.4 mm, allows for precise work even in complicated environments.The blade of the 5141 features a flush cutting edge that is ideal for clean cuts with some tolerance and has a hardness of 67 HRC, which guarantees a long lifespan and sustained precision. The handle of the cutter is equipped with ESD Ergo-Tek Slim technology, made from PP and TPE, and is electrostatically dissipative to enhance safety when working with electrostatically sensitive components.
The tool has an overall length of 120 mm and a weight of 82 g, making it handy and easy to handle. It can cut soft material up to a diameter of 1.15 mm and semi-hard material up to 1.02 mm, according to the AWG standards 38-17 for soft and 38-18 for semi-hard material. The sandblasted surface improves the grip and the aesthetic appearance of the cutter.
Details
- Bevel Bevel
- with bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 82 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:

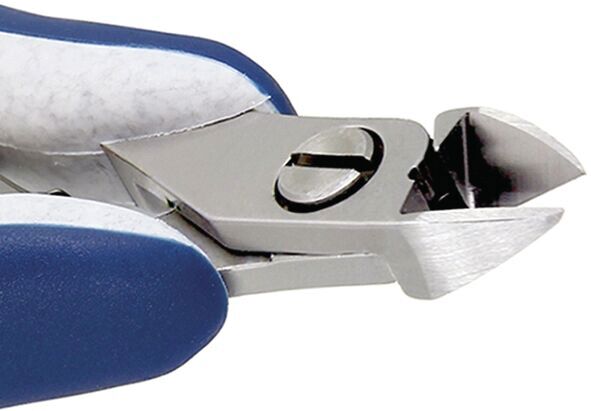

With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
