ESD Diagonal cutting pliers Slim 5142

(Product No.: I-ES5142.ESD)

(Product No.: I-ES5142.ESD)

ESD Diagonal cutting pliers Slim 5142

Name: ESD Diagonal cutting pliers Slim 5142
SKU: I-ES5142.ESD
Price: 58.10 CHF
Availability: InStock

ArticleNo: I-ES5142.ESD

dpvlink:

26734

Bevel:

without bevel

Head type/size:

extra small

Max Ø soft:

1.02 mm

Max Ø medium:

0.81 mm

Properties:

Further product information

58.10 CHF

1 PCE

Compare

Notice

Product Info

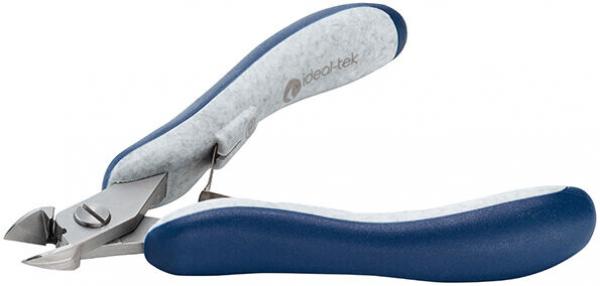

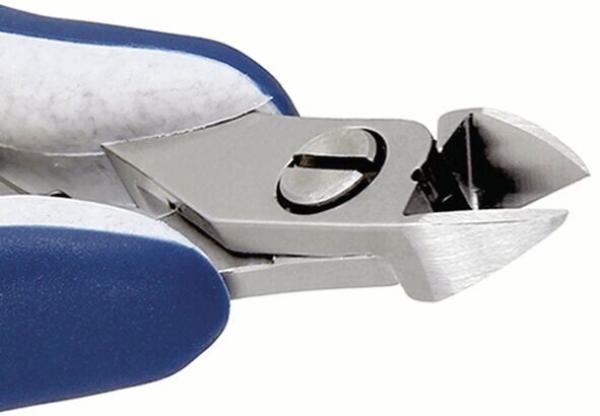

The ESD side cutter Slim 5142 from Ideal-Tek is a precise tool for technical applications where accurate cuts are essential. This model from the series of small oval cutters is characterized by its compact head dimensions, which allow access to hard-to-reach areas. The full-edge cutting edge is specifically designed for very clean cuts on small material, making the cutter particularly suitable for precise applications.
The blades of the side cutter are hardened to a hardness of 67 HRC, ensuring high durability and cutting precision. The ergonomically shaped ESD Ergo-Tek handle not only provides a secure and comfortable grip but is also electrostatically dissipative, ideal for work in ESD-sensitive environments.

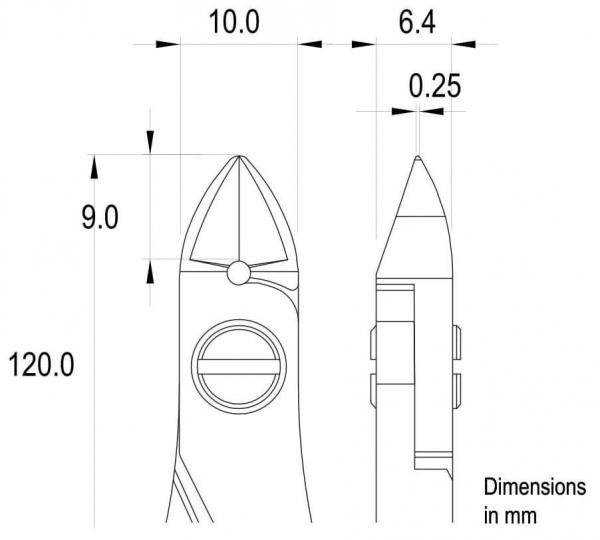

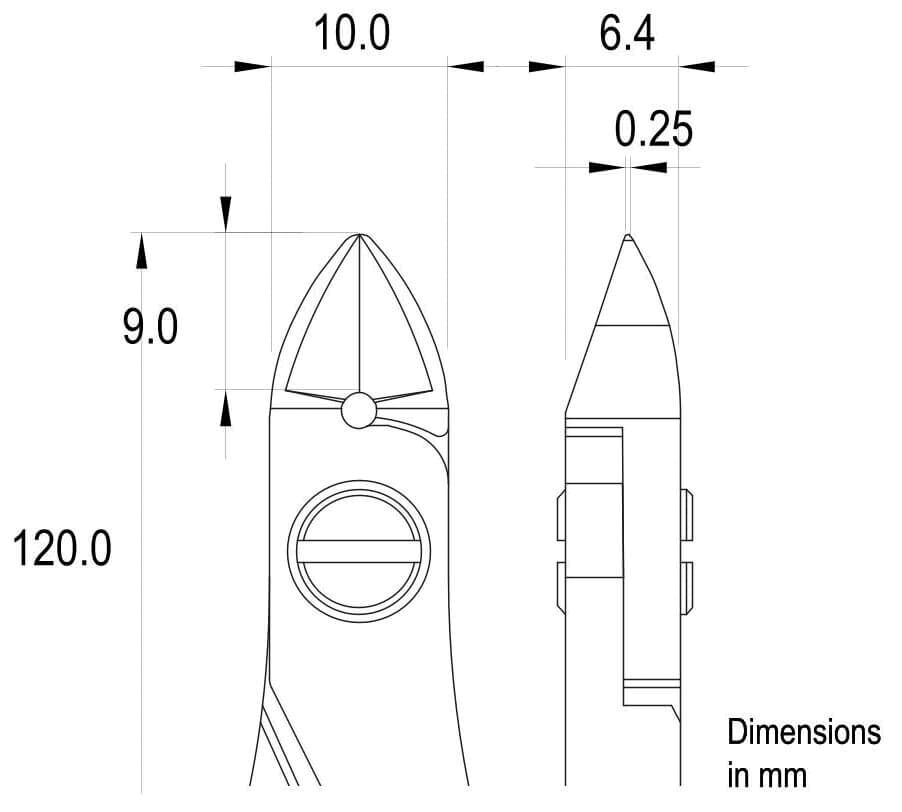

The cutter has a total length of 120 mm and weighs 82 g. It can cut soft materials up to a diameter of 1.02 mm and medium-hard materials up to 0.81 mm. The head shape is oval with a head width of 10 mm and a jaw length of 9 mm. The surface of the tool is sandblasted, which also contributes to its robustness.
In summary, the ESD side cutter Slim 5142 from Ideal-Tek offers an excellent combination of precision, durability, and ergonomic design for professionals working in electrostatically sensitive environments.

Details

Bevel Bevel: without bevel
Head type/size Head type/size: extra small
Max Ø soft Max Ø soft: 1.02 mm
Max Ø medium Max Ø medium: 0.81 mm
AWG medium AWG medium: 38-20
AWG soft AWG soft: 38-18
Head thickness Head thickness: 6.4 mm
Length [mm] Length [mm]: 120 mm
Material Material: steel
Stick material Stick material: PP / TPE
Surface Surface: sandblastered
ESD ESD: yes
Head shape Head shape: oval
Head width Head width: 10 mm
Jaw length Jaw length: 9 mm
Type of pliers Type of pliers: Diagonal cutting pliers
Weight Weight: 82 g

Common

Special features

Ergonomic handle
Slip-resistant surface
Very lightweight
Suitable for narrow spaces

The new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek.

ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.

The cutting shapes and cutting performance:

With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.

With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.

Without bevel flush (facet)
Flush cut for soft materials.

ERGO-TEK

The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.

ERGO-TEK SLIM

In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
