ESD Diagonal cutting pliers Slim 5150

(Product No.: I-ES5150.ESD)

(Product No.: I-ES5150.ESD)

ESD Diagonal cutting pliers Slim 5150

Name: ESD Diagonal cutting pliers Slim 5150
SKU: I-ES5150.ESD
Price: 57.65 CHF
Availability: InStock

ArticleNo: I-ES5150.ESD

dpvlink:

26738

Bevel:

small bevel

Head type/size:

regular

Max Ø soft:

1,63 mm

Max Ø medium:

1.29 mm

Max Ø hard:

0.7 mm

Properties:

Further product information

57.65 CHF

1 PCE

Compare

Notice

Product Info

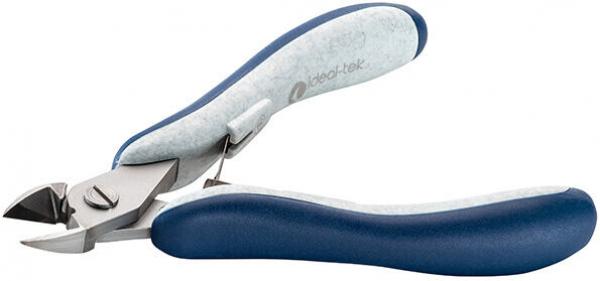

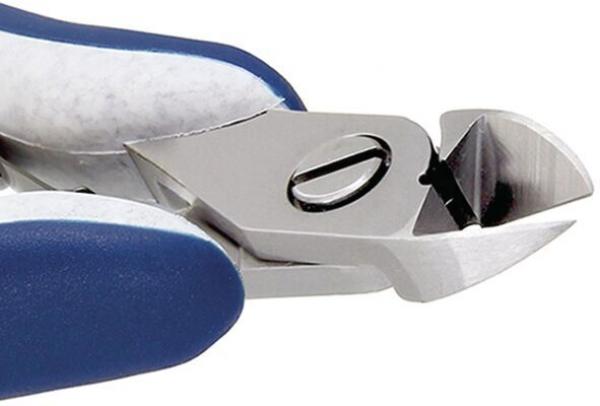

The ESD Slim Side Cutter 5150 from ideal-tek is a precision-manufactured tool designed specifically for robust cuts. This model belongs to the family of large oval cutters and, thanks to its oval head shape and compact head dimensions, offers the ability to work precisely even in tight areas. The semi-flush cutting edge of the cutter allows for clean cuts through various materials.
The side cutter is equipped with an ESD Ergo-Tek Slim handle, made from PP and TPE, and is electrostatically dissipative, making it ideal for use in electrostatically sensitive environments. The blades of the tool are hardened to a hardness of 67 HRC, ensuring high durability and sustained cutting performance.

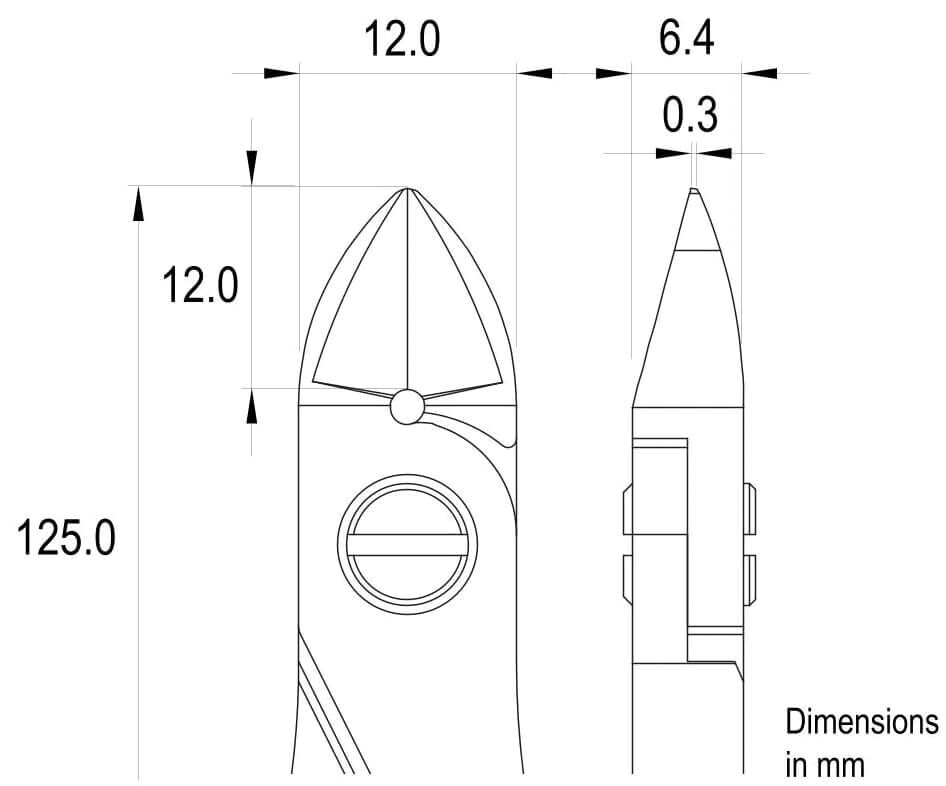

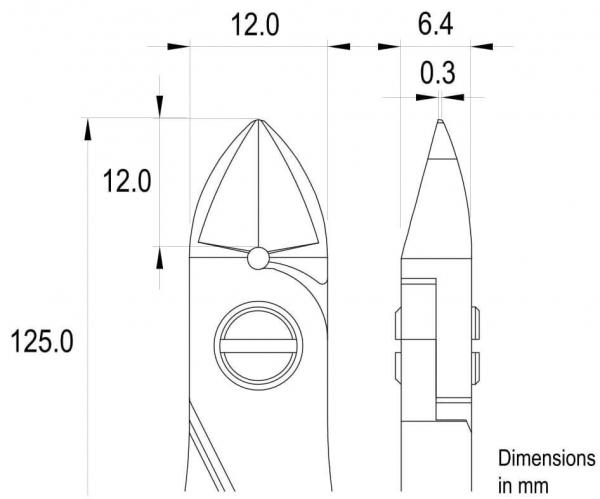

Technical specifications include a length of 120 mm and a weight of 85 g. The cutter can cut materials up to a diameter of 1.63 mm (soft), 1.29 mm (medium), and 0.7 mm (hard). The sandblasted surface ensures enhanced resistance and durability of the tool. With a head thickness of 6.4 mm and a jaw length and width of 12 mm each, this side cutter provides reliable functionality for versatile applications.

Details

Bevel Bevel: small bevel
Head type/size Head type/size: regular
Max Ø soft Max Ø soft: 1,63 mm
Max Ø medium Max Ø medium: 1.29 mm
Max Ø hard Max Ø hard: 0.7 mm
AWG hard AWG hard: 48-21
AWG medium AWG medium: 38-16
AWG soft AWG soft: 29-14
Head thickness Head thickness: 6.4 mm
Length [mm] Length [mm]: 120 mm
Material Material: steel
Stick material Stick material: PP / TPE
Surface Surface: sandblastered
ESD ESD: yes
Head shape Head shape: oval
Head width Head width: 12 mm
Jaw length Jaw length: 12 mm
Type of pliers Type of pliers: Diagonal cutting pliers
Weight Weight: 85 g

Common

Special features

Ergonomic handle
Slip-resistant surface
Very lightweight
Suitable for narrow spaces

The new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek.

ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.

The cutting shapes and cutting performance:

With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.

With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.

Without bevel flush (facet)
Flush cut for soft materials.

ERGO-TEK

The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.

ERGO-TEK SLIM

In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
