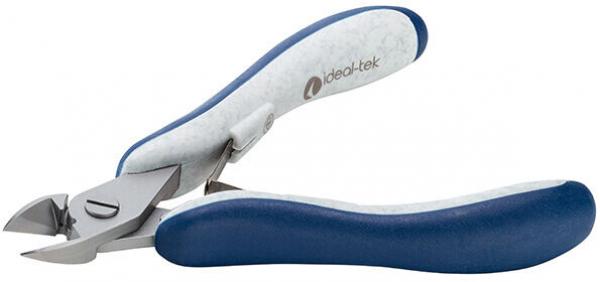

ESD Diagonal cutting pliers Slim 5151

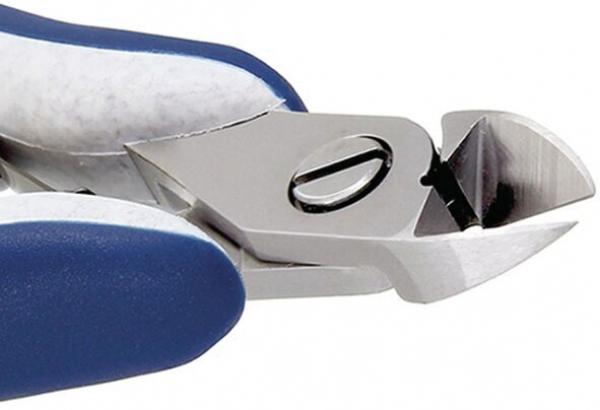

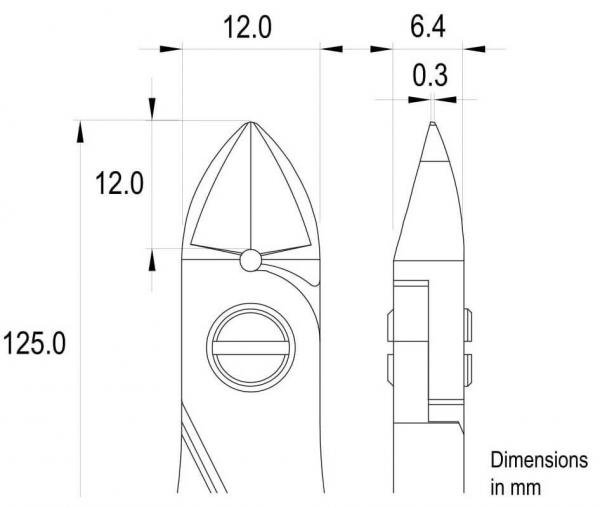

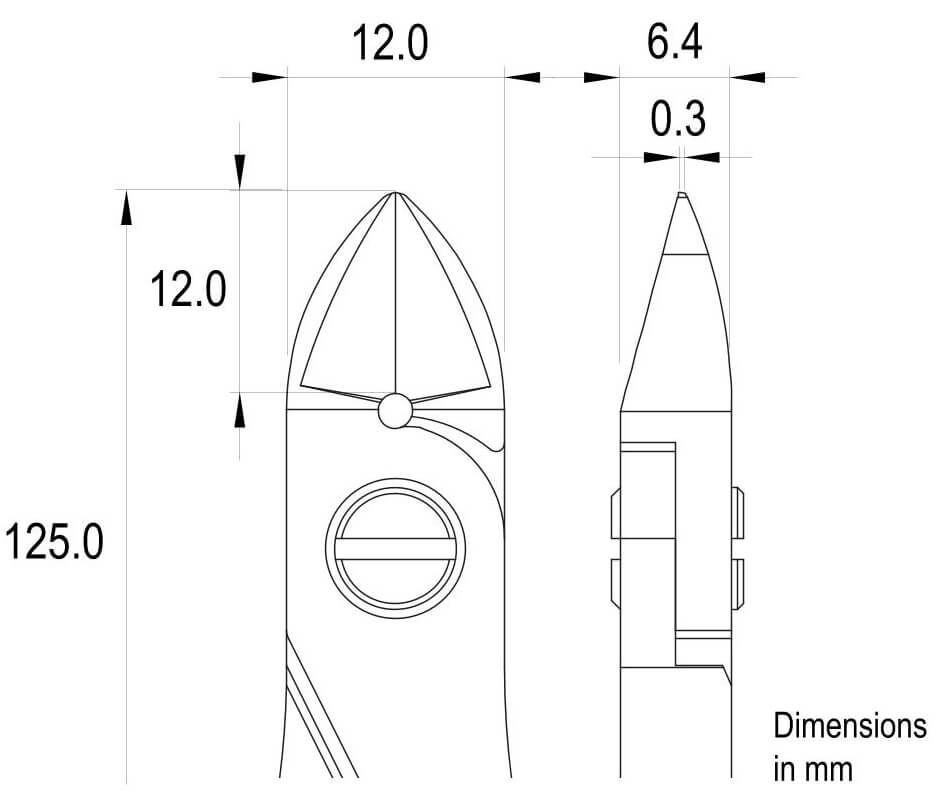

The ESD Slim 5151 side cutter from ideal-tek is a high-precision tool specifically designed for precise cuts in tight areas. With a head width of 12 mm and a head thickness of 6.4 mm, this plier from the large oval pliers series offers optimal resistance and support during cutting. Its flush cutting edge allows for clean cuts with some tolerance, ideal for fine work on sensitive materials.The side cutter is equipped with an ESD Ergo-Tek Slim handle made of PP and TPE, which not only provides excellent grip but is also electrostatically dissipative, making it suitable for environments with electrostatic discharge risks. The blades are made of sandblasted steel and hardened to a hardness of 67 HRC, ensuring durability and sustained cutting performance.
With an overall length of 120 mm and a weight of 85 g, this side cutter is handy and effective for cutting soft materials up to a diameter of 1.63 mm and medium-hard materials up to 1.15 mm. The head shape is oval and the plier belongs to the type of side cutters, making it an essential tool for technical professionals.
Details
- Bevel Bevel
- large bevel
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1,63 mm
- Max Ø medium Max Ø medium
- 1.15 mm
- AWG medium AWG medium
- 38-17
- AWG soft AWG soft
- 32-14
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
