ESD Diagonal cutting pliers Slim 5152

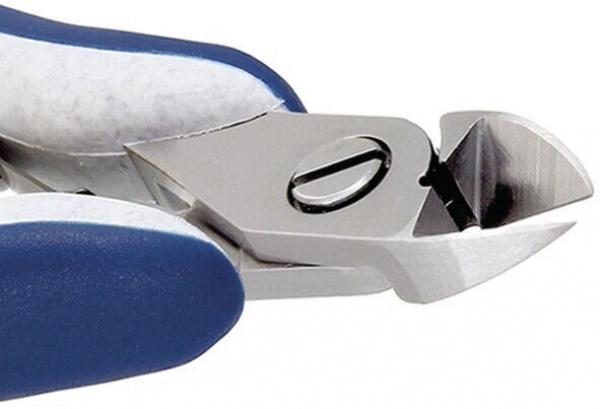

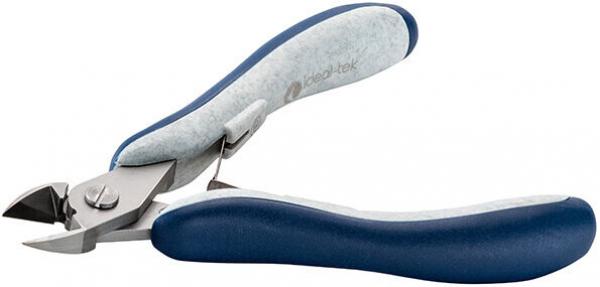

The ESD side cutter Slim 5152 from ideal-tek is a high-precision tool designed specifically for use in areas where electrostatic discharges pose a risk. This model is part of the 515x series and is characterized by its oval jaws and compact head dimensions, which allow for precise cuts even in tight areas. The side cutter features a completely flush cutting edge, ideal for very clean cuts on small material.The blades of the cutter are hardened to a hardness of 67 HRC, ensuring high durability and cutting precision. The handle is made of PP and TPE and offers excellent and secure grip thanks to the ESD Ergo-Tek Slim technology.

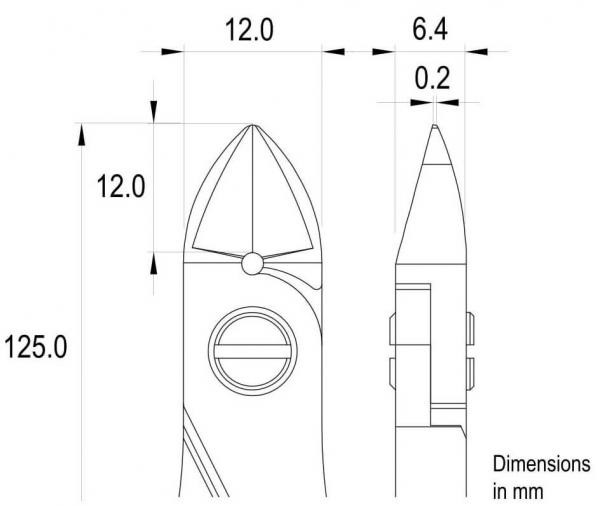

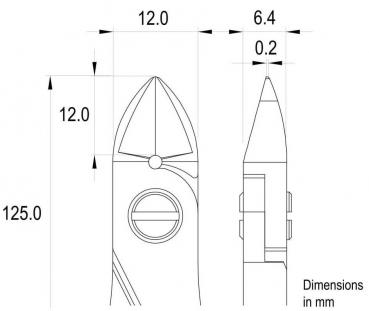

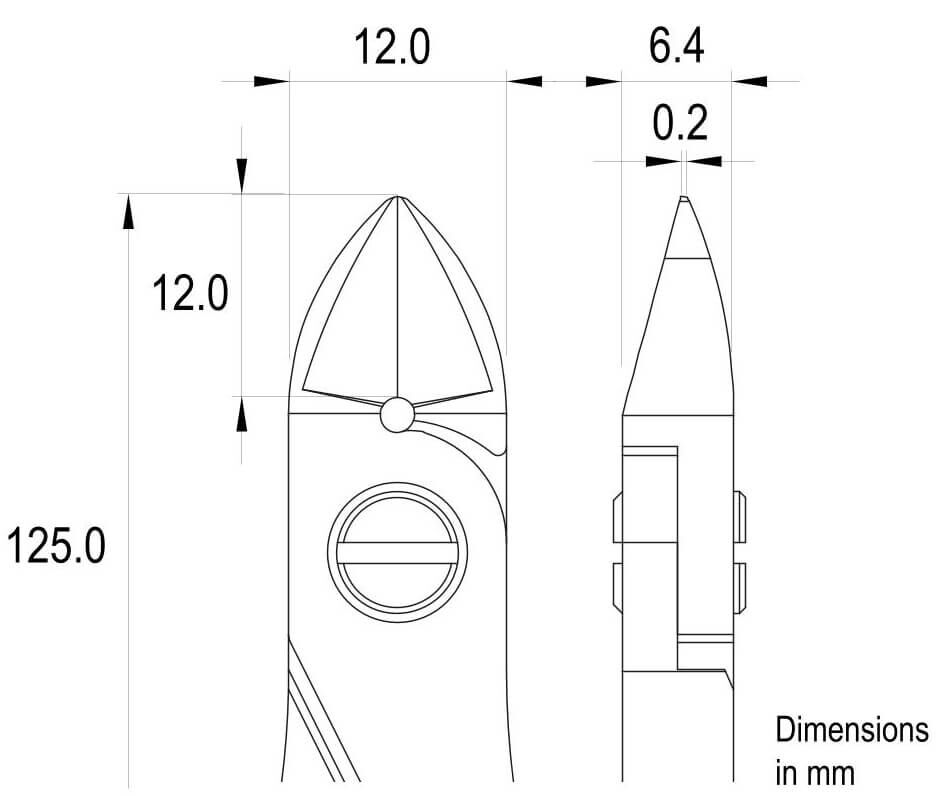

Technical specifications include a length of 120 mm, a weight of 85 g, and a head thickness of 6.4 mm. The cutter can cut soft material up to a diameter of 1.15 mm and medium-hard material up to 1.02 mm. The surface is sandblasted, contributing to the tool's robustness and durability.
Details
- Bevel Bevel
- without bevel (flush cut)
- Head type/size Head type/size
- regular
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 32-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head width Head width
- 12 mm
- Jaw length Jaw length
- 12 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 85 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
