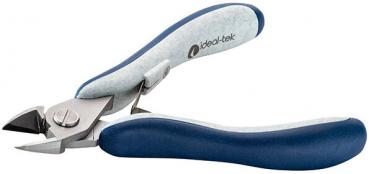

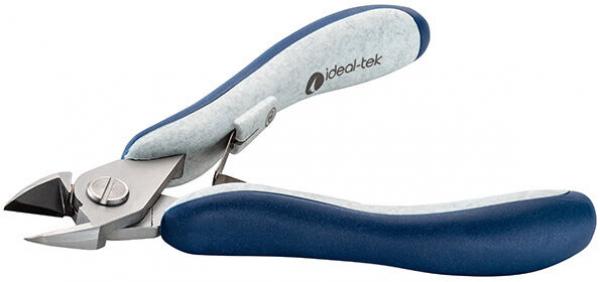

The ESD Side Cutter Slim 5162L from Ideal-tek combines advanced ergonomics and technical precision for professional use, especially in ESD-sensitive environments. This model features extra-large, oval jaws that provide increased resistance and improved cutting capacity. The fully flush cutting edge allows for precise cuts on small materials. Equipped with ESD-capable ERGO-TEK Slim handles, the side cutter offers a secure and comfortable grip. The blades are hardened to a hardness of 67HRC to ensure durability and performance.
Technical Specifications: - Plier type: Side cutter without bevel, flush cut - Dimensions (A x B x C x D): 125 mm x 13 mm x 16 mm x 6.4 mm - Width: 60 mm, Height: 18 mm - Head width: 16 mm, Head thickness: 6.4 mm, Jaw length: 13 mm - Head shape: oval, Head type/size: extra large, rounded - ESD protection: Yes - Weight: 88 g - Handle material: PP / TPE, Surface: sandblasted - Cu wire (mm): 0.4 - 2.5, AWG medium: 26-12, AWG soft: 26-10 - Max Ø medium: 0.40-2.00 mm, Max Ø soft: 0.40-2.50 mm - Material: hardened steel
Product number: I-ES5162L.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel, flush cut

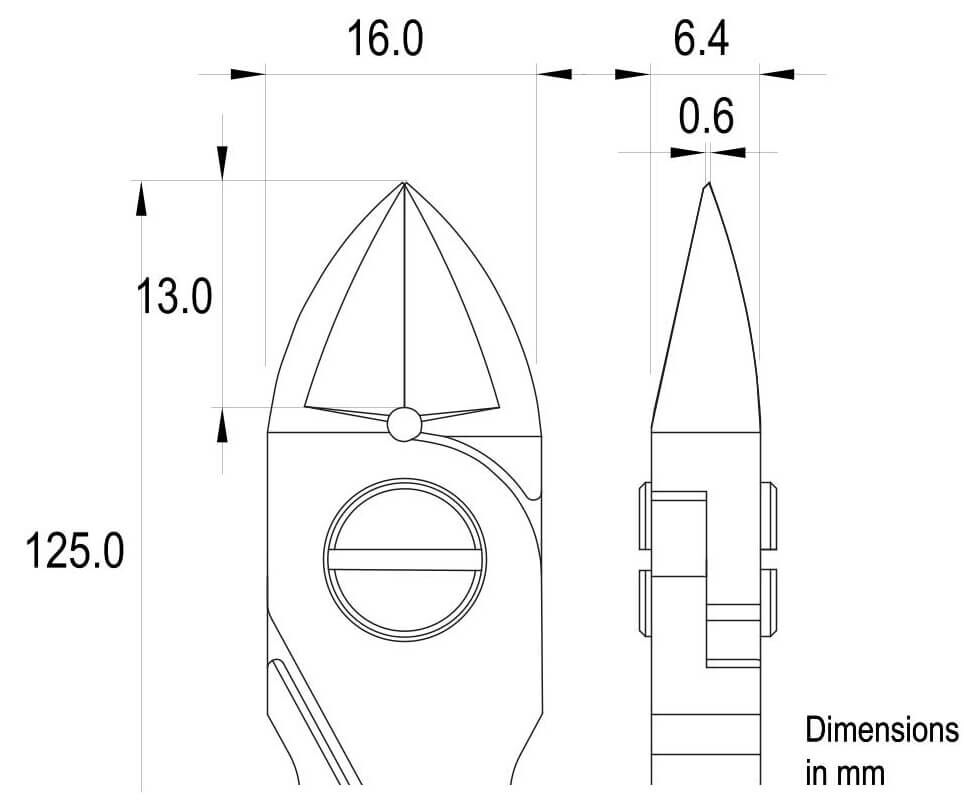

- A [mm] A [mm]
- 125
- B [mm] B [mm]
- 13
- C [mm] C [mm]
- 16
- D [mm] D [mm]
- 6.4
- AWG medium AWG medium
- 26-12
- AWG soft AWG soft
- 26-10
- Max Ø medium Max Ø medium
- 0.40-2.00
- Max Ø soft Max Ø soft
- 0.40-2.50 mm
- Head thickness Head thickness
- 6.4 mm
- Head width Head width
- 16 mm
- Height [mm] Height [mm]
- 18
- Width [mm] Width [mm]
- 60
- Cu wire [mm] Cu wire [mm]
- 0.4 -2.5
- F [mm] F [mm]
- 0.6
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- oval
- Head type/size Head type/size
- extra large, rounded
- Jaw length Jaw length
- 13 mm
- Weight Weight
- 88 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.

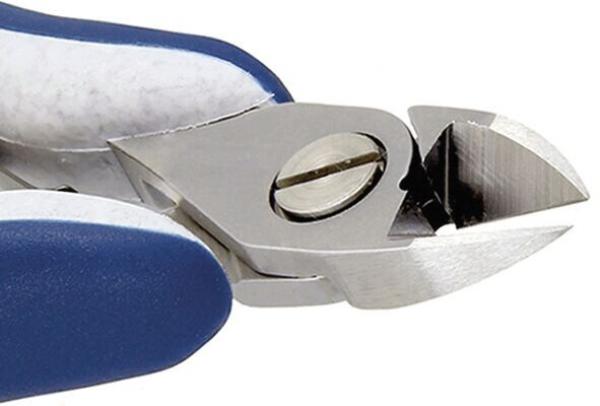

Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Type of pliers | Bevel | A [mm] | B [mm] | C [mm] | D [mm] | Price | Compare |
|---|---|---|---|---|---|---|---|---|---|
|

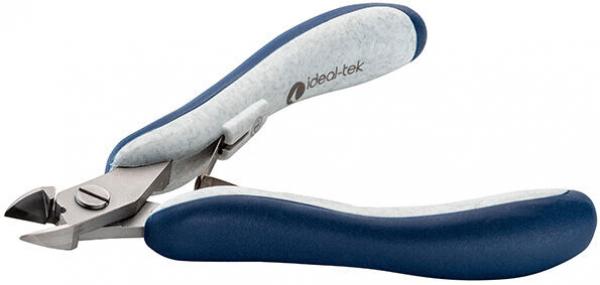

I-ES5160.ESD ESD Diagonal cutting pliers Slim 5160 | Diagonal cutting pliers | small bevel | 125 | 13 | 16 | 6.4 | 61.65 CHF | |
|
I-ES5161.ESD ESD Diagonal cutting pliers Slim 5161 | Diagonal cutting pliers | large bevel | 125 | 13 | 16 | 6.4 | 61.65 CHF | |
|
I-ES5162L.ESD ESD Diagonal cutting pliers Slim 5162 | Diagonal cutting pliers | without bevel, flush cut | 125 | 13 | 16 | 6.4 | 61.65 CHF | |
