ESD Diagonal cutting pliers Slim 5340

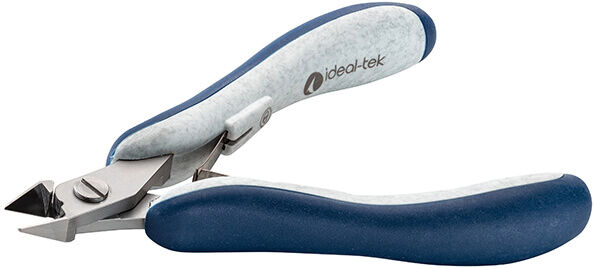

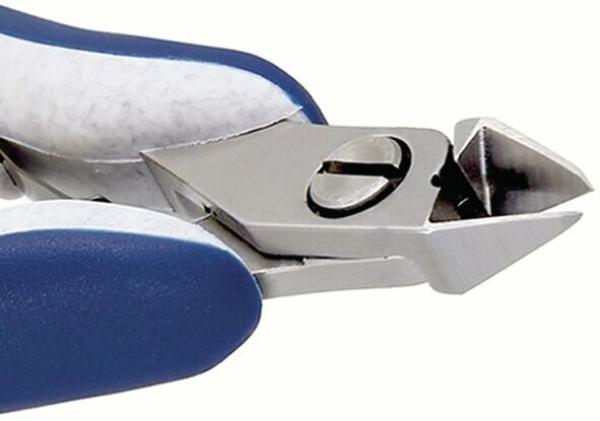

The ESD side cutter Slim 5340 from ideal-tek is an essential tool for precise and robust cutting tasks in technically demanding environments. This model is part of the 534x series, known for its small conical head geometries, which facilitate access to tight areas. The side cutter features a semi-flat cutting edge, specifically designed for robust cuts and is therefore particularly suitable for working with small materials.Equipped with an ESD Ergo-Tek Slim handle, the cutter offers a secure and comfortable grip and is electrostatically dissipative, making it ideal for working with electrostatically sensitive components. The blades are made of steel, sandblasted, and hardened to a hardness of 67 HRC, ensuring high durability and lasting precision.

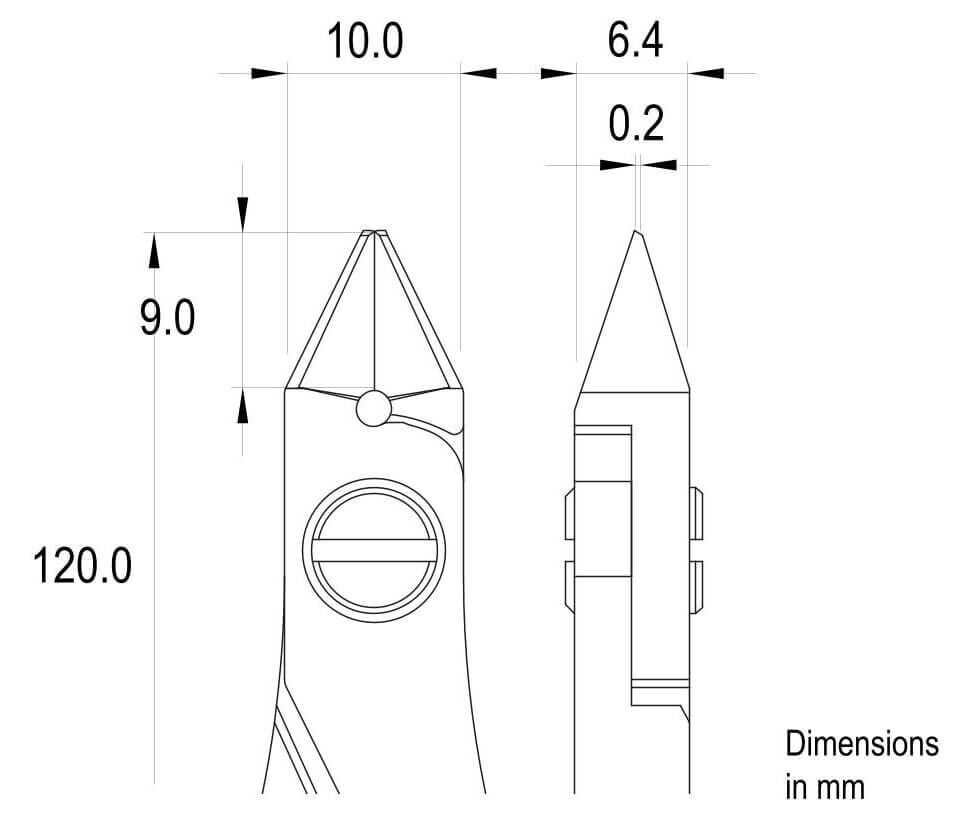

The cutter has a length of 120 mm and a weight of 82 g. It can cut wires up to a diameter of 1.15 mm (soft), 1.02 mm (medium), and 0.6 mm (hard). The handle materials PP and TPE, along with the extra small head size with a head width of 10 mm and a jaw length of 9 mm, underline the high-quality craftsmanship of this tool.
Details
- Bevel Bevel
- mini bevel
- Head type/size Head type/size
- extra small
- Max Ø soft Max Ø soft
- 1.15 mm
- Max Ø medium Max Ø medium
- 1.02 mm
- Max Ø hard Max Ø hard
- 0,6 mm
- AWG hard AWG hard
- 48-23
- AWG medium AWG medium
- 38-18
- AWG soft AWG soft
- 38-17
- Head thickness Head thickness
- 6.4 mm
- Length [mm] Length
- 120 mm
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head width Head width
- 10 mm
- Jaw length Jaw length
- 9 mm
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Version Version
- with safety spring
- Weight Weight
- 82 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
