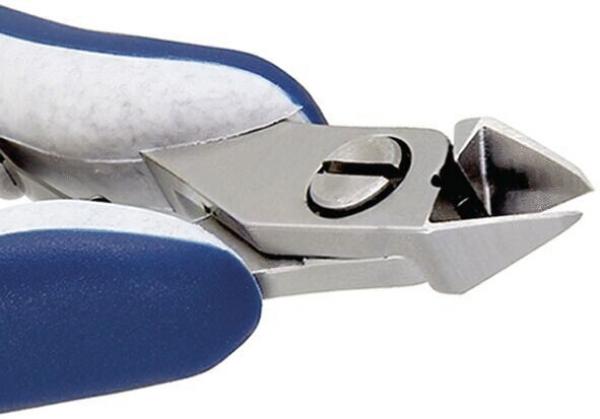

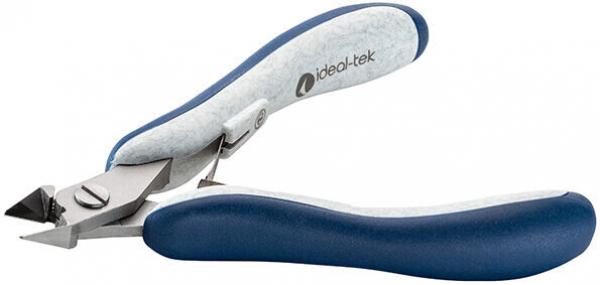

The ERGO-TEK SLIM series by ideal-tek is a range of side cutters designed specifically for smaller hands, combining ergonomics and ESD safety in a lightweight design. The ESD Side Cutter Slim 5342 features small, pointed jaws and an ergonomically shaped, non-slip ERGO-TEK Slim handle, making it ideal for precise work in tight spaces. The full-flush cutting edge allows for clean cuts on small materials, with blades that have a hardness of 67HRC. The anti-static handle is particularly suitable for environments where electrostatic discharges pose a risk.
Technical Specifications:
- Type of pliers: Side cutter
- Cut type: flush

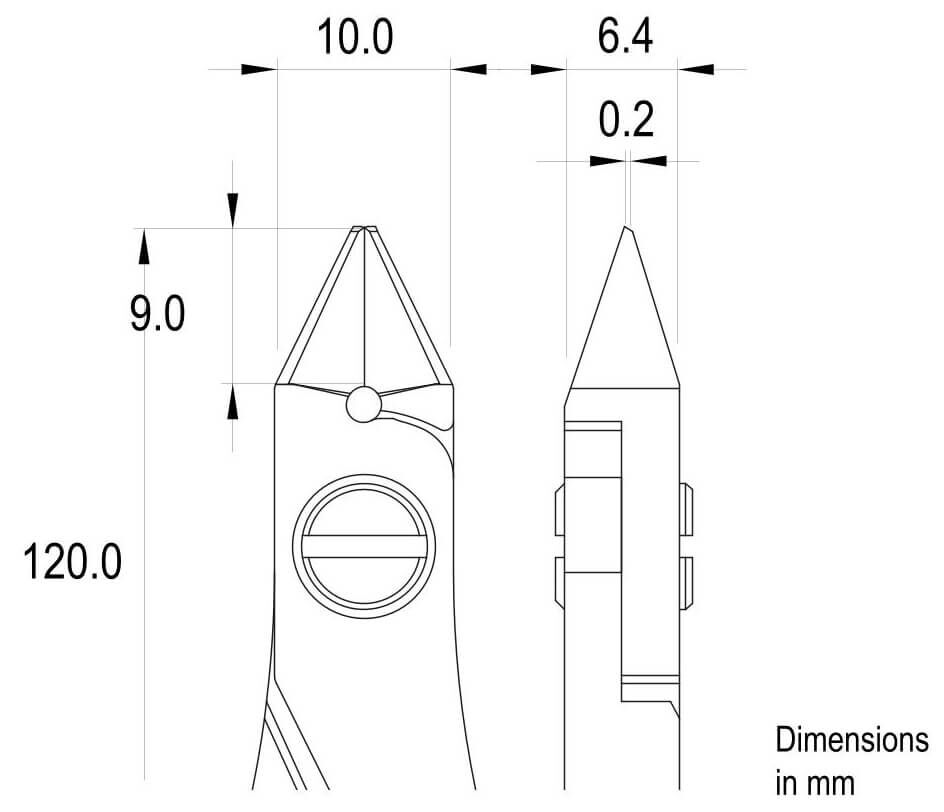

- Length (A): 120 mm
- Head width (B): 9 mm
- Head height (C): 10 mm
- Head thickness (D): 6.4 mm
- Width: 60 mm
- Height: 18 mm
- Weight: 81 g
- ESD capable: Yes
- Handle material: PP/TPE
- Material: Steel, sandblasted
- Maximum wire diameter (soft): 1.0 mm
- Jaw length: 9 mm
- Head shape: conical
Item number: I-ES5342.ESD
Details
- Type of pliers Type of pliers
- Diagonal cutting pliers
- Bevel Bevel
- without bevel, flush cut
- A [mm] A [mm]
- 120
- B [mm] B [mm]
- 9
- C [mm] C [mm]
- 10
- D [mm] D [mm]
- 6.4
- AWG medium AWG medium
- 38-19
- AWG soft AWG soft
- 38-18
- Max Ø medium Max Ø medium
- 0.9
- Max Ø soft Max Ø soft
- 1.0 mm
- Head thickness Head thickness
- 6.4 mm
- Height [mm] Height [mm]
- 18
- Width [mm] Width [mm]
- 60
- Cu wire [mm] Cu wire [mm]
- 0.1 -1.0
- F [mm] F [mm]
- 0.2
- Material Material
- steel
- Stick material Stick material
- PP / TPE
- Surface Surface
- sandblastered
- ESD ESD
- yes
- Head shape Head shape
- tapered
- Head type/size Head type/size
- small
- Head width Head width
- 10
- Jaw length Jaw length
- 9 mm
- Weight Weight
- 81 g
Special features
- Ergonomic handle
- Slip-resistant surface
- Very lightweight
- Suitable for narrow spaces
ideal-tek pliers stand for quality with the highest requirements of precision, ergonomics and durability.
The cutting shapes and cutting performance:
With bevel (facet)
Normal cut. Suitable for cutting hard and soft steel wires as well as soft materials such as copper wire and cable.
With large bevel (facet)
Suitable for cutting hard and very hard steel wires. Long service life.
Without bevel flush (facet)
Flush cut for soft materials.
ERGO-TEK
The pliers of the ERGO-TEK series have a modified ergonomic handle. This adapts optimally to the hand which has a positive effect on the user especially in case of long, intensive and powerful working processes.
ERGO-TEK SLIM
In consideration of anatomic differences the new, lightweight ERGO-TEK SLIM series has been designed for small hands - providing the same ergonomics, ESD safety and technical advantages that have always characterized ideal-tek
